• The second through fifth card will always be used for connecting additional Emergency Phones. For Card 2:
• Interface 1: (01-04) Connection for 4 Emergency Phones
• Interface 2: (05-08) Connection for 4 Emergency Phones
• Interface 3: (09-12) Conneciton for 4 Emergency Phones
• Interface 4: (13-16) Connection for 4 Emergency Phones
• Interface 5: (17-18) Connection for 2 Emergency Phones
• Interface 6: (19-20) Conneciton for 2 Emergency Phones
Note: The numbering pattern continues on cards 3 through 5.

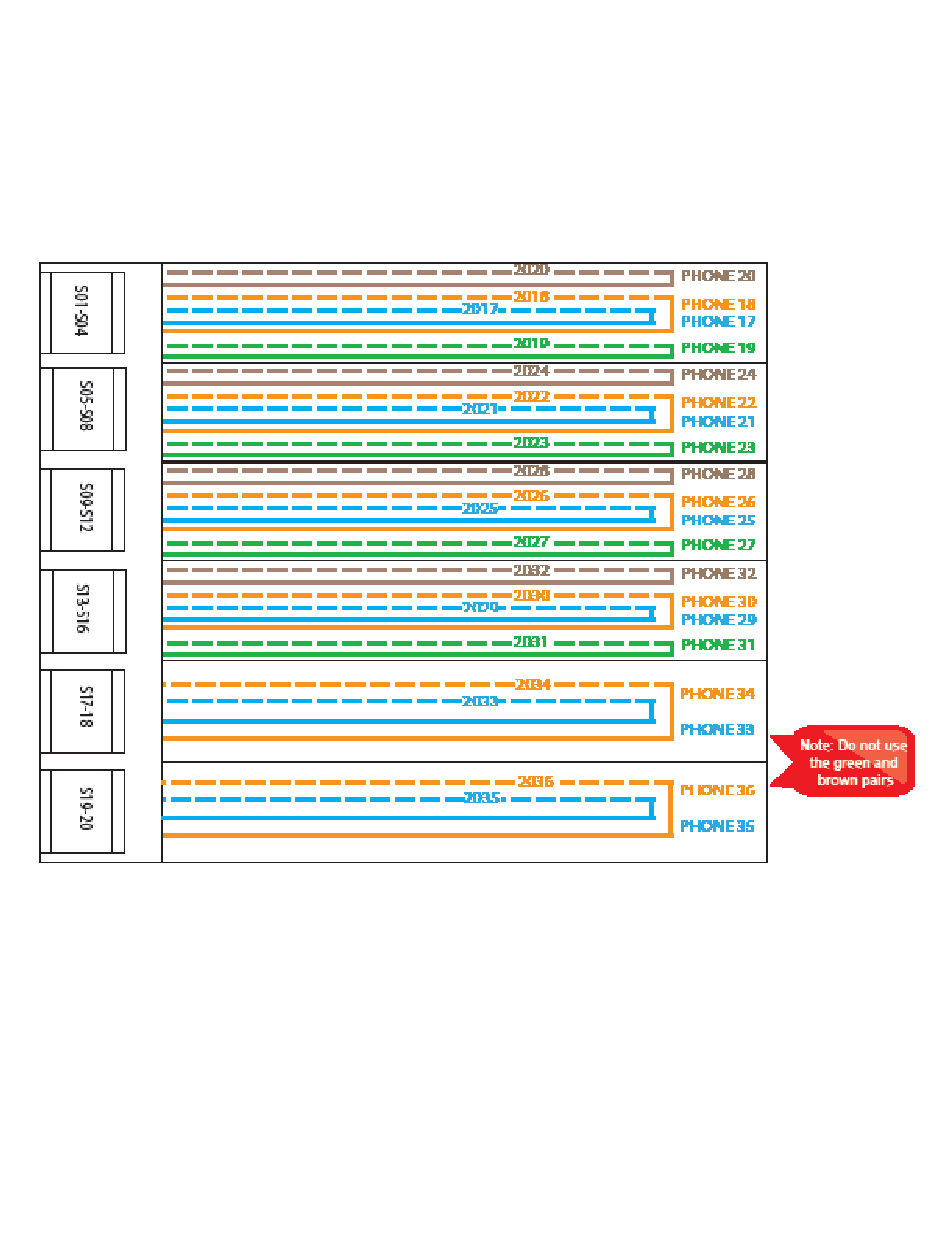

Card 2 Example
Step 4:
Apply AC power to the Distribution Module by connecting the supplied power cable from the Distribution Module to
the RATH® model RP7700104 or RP7701500 Power Supply.
Step 5:
Turn on the Power Supply.
Step 6:
Turn on the Distribution Module.
