Grounding Method
The conductor must be fastened to the grounding lugs with the enclosed antirotation star‐washers and
lug‐nut fasteners. The torque requirement for the connector lug‐nut fasteners is specified by the
connector's manufacturer. To properly ground the single‐slot chassis:
1. Obtain one (1) two‐hole, compression‐type, grounding connector.

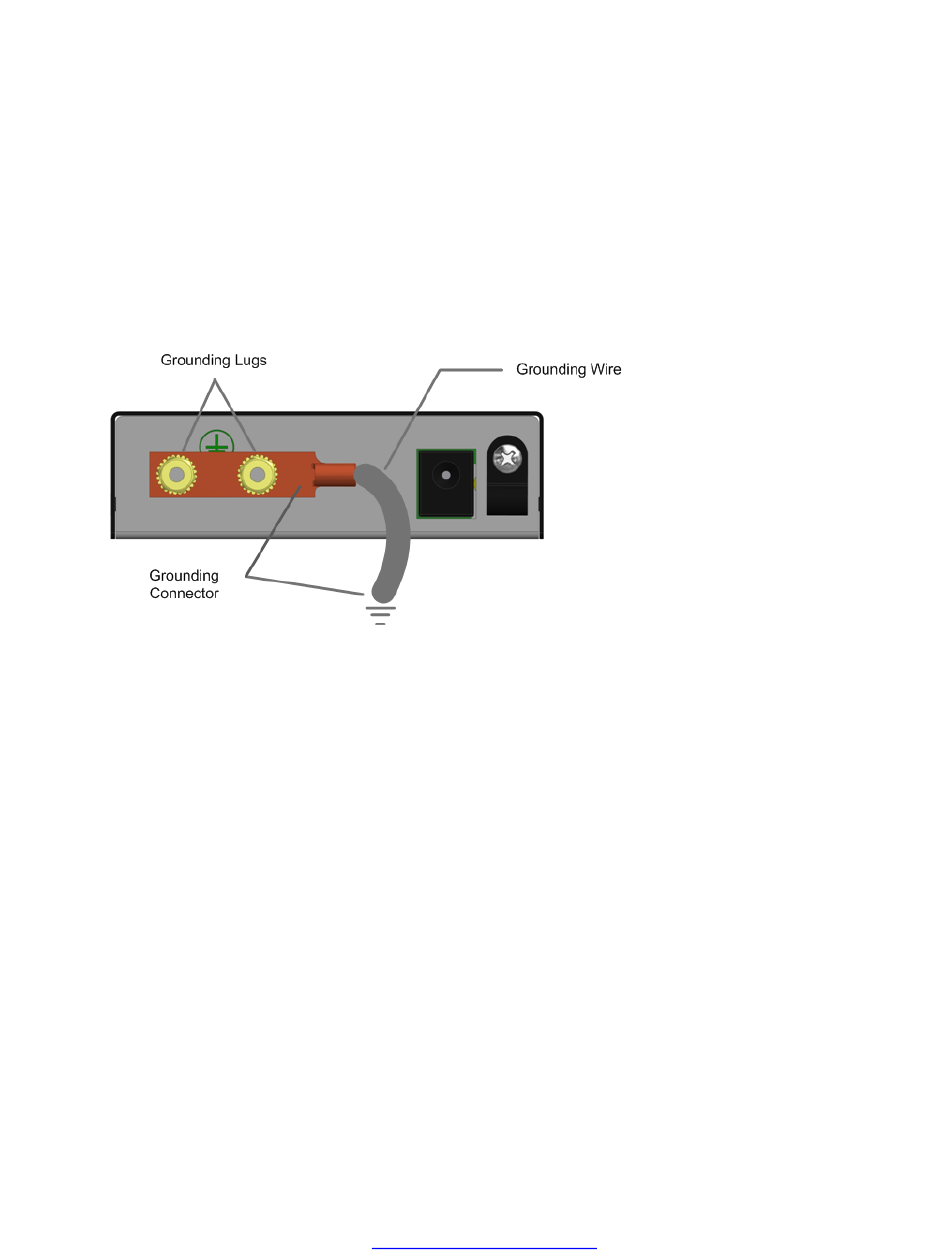

2. Attach the grounding conductor to the chassis by placing the two‐hole connector onto the
grounding lugs and fasten with the enclosed lockwashers/lug‐nuts at the proper torque (per the
manufacturer's specification).
3. Attach the opposite end of the grounding conductor to the common‐bonding network (CBN) for
telecom, or to earth ground (if required) for non‐telecom installations.

Specifications

For use with Transition Networks Model ION001‐A Single Slot chassis or equivalent. Note: The ION001‐A
Single Slot chassis is Class A compliant.
Status LEDs
Dimensions
Power Supply
Operating Temp.
Storage Temp.
Humidity
Altitude
Weight
Compliance
MTBF
Warranty
CAUTION: Copper based media ports, e.g., Twisted Pair (TP) Ethernet, USB, RS232, RS422, RS485, DS1,
DS3, Video Coax, etc., are intended to be connected to intrabuilding (inside plant) link segments that are
not subject to lightening transients or power faults. Copper based media ports, e.g., Twisted Pair (TP)
Ethernet, USB, RS232, RS422, RS485, DS1, DS3, Video Coax, etc., are NOT to be connected to
interbuilding (outside plant) link segments that are subject to lightening transients or power faults.
Failure to observe this caution could result in damage to equipment.
33419 Rev. C
None, Power indicator is on the slide‐in card
Width: 4" [102 mm] W x 7.1" [180 mm] D x 1.2" [30.48 mm] (H)
External AC/DC power supply included, 120‐240VAC input, 12VDC Output
(See selected Slide‐In Card manual for power consumption data)
0°C to 50°C
‐40°C to +85°C
5% to 95% (non‐condensing)
0 – 10,000 ft.
2 lbs. [0.9 kg]
UL listed, EN55022, EN55024, CE Mark, FCC Class A, CISPR Class A
41,661 (MIL‐HDBK‐217F) hours | 114,580 (Bellcore7 V5.0) hours
Lifetime
