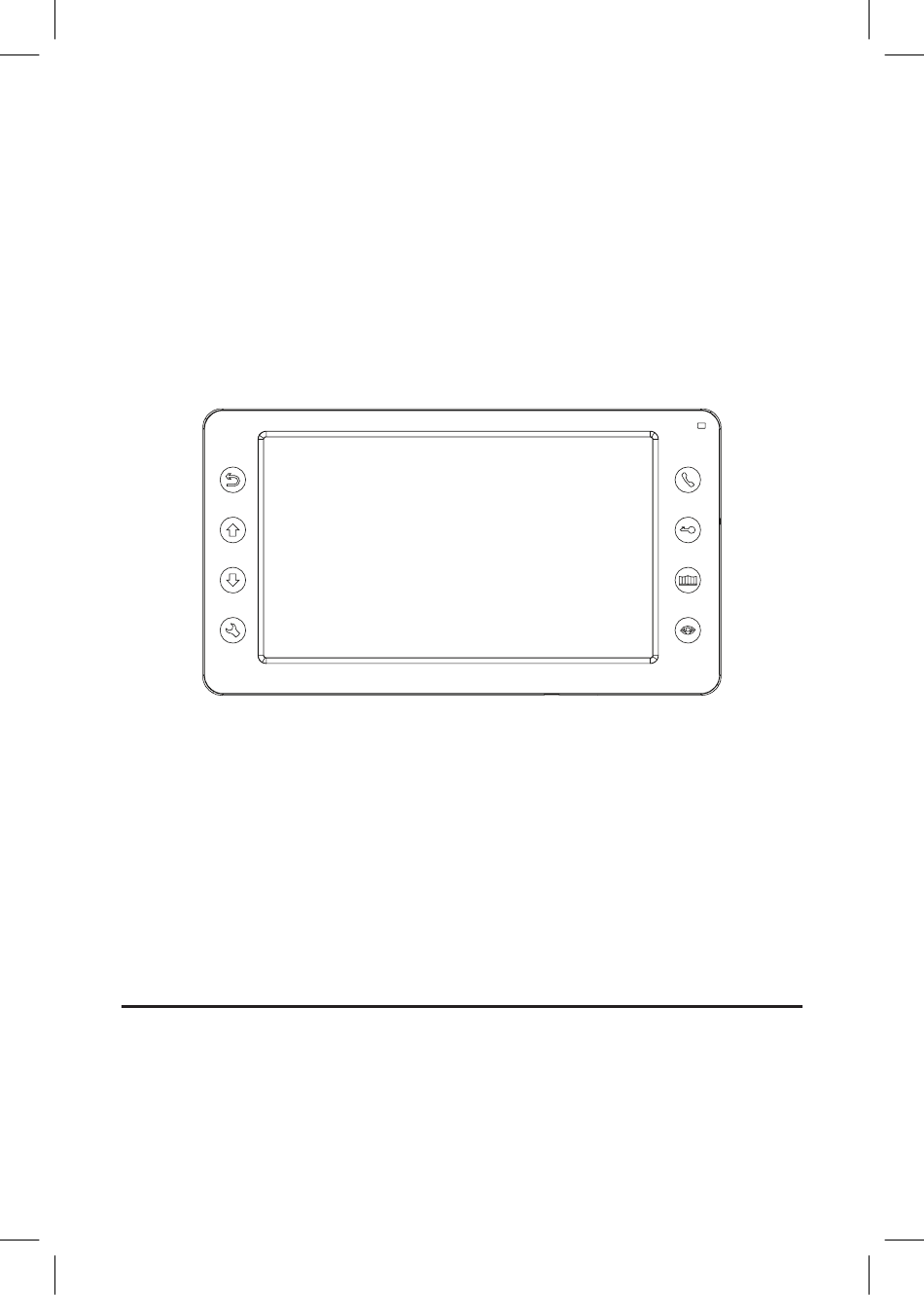

VIDEO ENTRY PHONE DISPLAY
VP-819B / VP-819W
Thank you for buying this product from Zamel.
Zamel shall not accept any liability for any results of damage
and / or accidents caused by non-intended use of the product.
Before attempting to install this product, please read and understand
the entire Operating Manual to comply with the intended use.
Do not open or tamper with the product without prior authorization.
Otherwise your warranty rights for this product will be void.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VP-819B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zamel VP-819B

Summary of Contents for Zamel VP-819B

  • Page 1 VP-819B / VP-819W Thank you for buying this product from Zamel. Zamel shall not accept any liability for any results of damage and / or accidents caused by non-intended use of the product. Before attempting to install this product, please read and understand the entire Operating Manual to comply with the intended use.

  • Page 2: Product Description

    SAFETY • Always follow this Manual for your safety and to prevent damage to the product. • Do not connect more than one load to a single power outlet at a time. Risk of overheating the wiring or fire! • Do not connect or interface this device with incompatible products. Otherwise there is a risk of an electrical short circuit, resulting in damage to this product.

  • Page 3: Wiring Connection Diagram

    WIRING CONNECTION DIAGRAM ROOM 1 DISPLAY 1 ELECTRIC DISPLAY 2 ELECTRIC CATCH 1 CATCH 2 ROOM 2 ROOM 3 ROOM 4 AD: Audio VD: Video PWR: Power GND: Ground DATA: Data communication CCTV: CCTV feed in KEY1/KEY2: Control voltage...
  • Page 4 ROOM 1 ELECTRIC DISPLAY 1 CATCH 1 ROOM 2 BLUE WHITE YELLOW ROOM 3 ROOM 4 AD: Audio VD: Video PWR: Power GND: Ground DATA: Data communication CCTV: CCTV feed in KEY1/KEY2: Control voltage Note: (a) Wiring connection diagram for an entrance panel with electric catch no. 2 + extra external power supply.
  • Page 5 ROOM 1 DISPLAY 1 ROOM 2 ROOM 3 ROOM 4 AD: Audio VD: Video PWR: Power GND: Ground DATA: Data communication CCTV: CCTV feed in KEY1/KEY2: Control voltage • The second and each additional display may only output the video feeds from the cameras to which they are connected.

  • Page 6: System Configuration

    Konfiguracja systemu Istnieje możliwość zastosowania jednej z konfiguracji systemu zgodnie ze SYSTEM CONFIGURATION schematami poniżej: The system can be installed in one of the configurations shown 2 stacje bramowe + 4 wideo monitory + 2 kamery CCTV do każdego monitora in the diagrams below: •...

  • Page 7: Installing The System

    PRODUCT DESCRIPTION 1. Enter Menu / Confirm 2. Down arrow button: Select / Adjust 3. Up arrow button: Select / Adjust 4. Back / Hang Up 5. LCD 6. LED indicator 7. Answer / Call 8. Unlock 9. Open gate 10.

  • Page 8: Wiring Specifications

    WIRING SPECIFICATIONS The system supports two electric catch release configurations: with the open command sent by (i) an entrance panel or (ii) a system display (the display open command output wire must have the shield connected to earth). If the open command is sent by an entrance panel, use this wiring specification: •...

  • Page 9: Public Address Mode

    ANSWERING AN ENTRANCE PANEL CALL When a visitor presses the Call button on the entrance panel, all connected indoor displays will sound the call chime at the same time as the INCOMING CALL message on each display screen. Touch the icon to answer the call.

  • Page 10: Do Not Disturb Mode

    INTERNAL CALLS (DISPLAY-TO-DISPLAY INTERCOM MODE) The intercom mode allows two-way voice calls between two specific displays in the video entry phone system. Touch on the display on standby to call another display in the system. If you have more than 2 displays in the video entry phone system, choose the display you wish to call with .

  • Page 11: System Settings

    SYSTEM SETTINGS With the display on standby, touch and open the System Settings menu. Item System functions Options Note LANGUAGE Default setting: PL (Polish) (optional: EN for English). RING TIME Default setting: 30 s (10 to 60 s, adjustable in 5 s steps). Default setting: 0.7, adjustable in a 01-10 range.

  • Page 12: Advanced Settings

    3. The BUYER shall make all warranty claims in writing at the point of sale or to ZAMEL Sp. z o.o. 4. ZAMEL Sp. z o.o. will examine each warranty claim as regulated by the applicable provisions of the Polish law.
