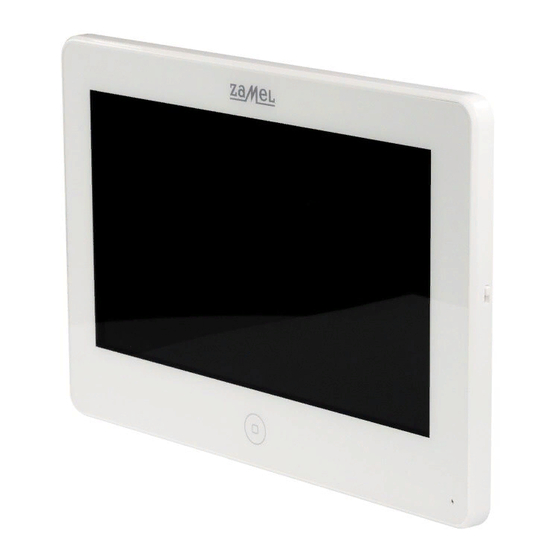

VIDEO ENTRY PHONE DISPLAY
VP-809B / VP-809W
Thank you for buying this product from Zamel.
Zamel shall not accept any liability for any results of damage and/or accidents
caused by non-intended use of the product.
Before attempting installation of this product, please read and understand the entire
Operating Manual to comply with the intended use.
Do not open or tamper with the product without prior authorization.
Otherwise your warranty rights for this product will be void.
Advertisement
Table of Contents
Related Manuals for Zamel VP-809W
Summary of Contents for Zamel VP-809W
- Page 1 VP-809B / VP-809W Thank you for buying this product from Zamel. Zamel shall not accept any liability for any results of damage and/or accidents caused by non-intended use of the product. Before attempting installation of this product, please read and understand the entire Operating Manual to comply with the intended use.
-
Page 2: Product Description
SAFETY • Always follow this Manual for your safety and to prevent damage to the product. • Do not connect more than one load to a single power outlet at a time. Risk of overheating the wiring or fire! • Do not connect or interface this device with incompatible products. Otherwise there is a risk of an electrical short circuit, resulting in damage to this product. -
Page 3: Technical Data
• On-demand video feed monitoring from entrance panels and all connected CCTV cameras • Two-way voice communication • High display screen resolution: 800 x 480 • Clear voice handset-free device • 10-step voice volume control • 10-step brightness, contrast and saturation control •... -
Page 4: Wiring Connection Diagram
WIRING CONNECTION DIAGRAM ROOM 1 DISPLAY 1 DISPLAY 2 ELECTRIC ELECTRIC CATCH 1 CATCH 2 ROOM 2 ROOM 3 ROOM 4 AD: Audio VD: Video PWR: Power GND: Ground DATA: Data communication CCTV: CCTV feed in KEY1/KEY2: Control voltage... - Page 5 ROOM 1 DISPLAY 1 ELECTRIC CATCH 1 ROOM 2 BLUE WHITE YELLOW ROOM 3 ROOM 4 AD: Audio VD: Video PWR: Power GND: Ground DATA: Data communication CCTV: CCTV feed in KEY1/KEY2: Control voltage Note: (a) Wiring connection diagram for an entrance panel with electric catch no.
- Page 6 ROOM 1 DISPLAY 1 ROOM 2 ROOM 3 ROOM 4 AD: Audio VD: Video PWR: Power GND: Ground DATA: Data communication CCTV: CCTV feed in KEY1/KEY2: Control voltage • The second and each additional display may only output the video feeds from the cameras to which they are connected.
-
Page 7: System Configuration
SYSTEM CONFIGURATION The system can be installed in one of the configurations shown in the diagrams below: • 2 gate entrance panels + 4 displays + 2 CCTV cameras for each display MAIN DISPLAY DISPLAY 2 DISPLAY 3 DISPLAY 4 DOOR 1 CAMERA 1 CAMERA 1... -
Page 8: Installing The System
PRODUCT DESCRIPTION 1. Power LED 2. LCD panel 3. Back / End Call / Main Menu button 4. Microphone 5. Power On/Off switch 6. microSD card slot (32 GB max.) INSTALLING THE SYSTEM 1. Use the wiring connection diagram for the chosen system configuration and verify that all wiring connections are correct. -
Page 9: Wiring Specifications
WIRING SPECIFICATIONS The system supports two electric catch release configurations: with the open command output by (i) an entrance panel or (ii) a system display (the display open command output wire must have the shield connected to earth). If the open command is output by an entrance panel, use this wiring specification: •... -
Page 10: Menu Overview
MENU OVERVIEW When the display in in the sleep mode, press to open the menu shown below: Item Icon Function Note Call other displays / answer the entrance panel call Record an out-of-home reply message Listening mode Entrance panel / CCTV video feed display Public Address mode Settings Touch... - Page 11 ANSWERING AN ENTRANCE PANEL CALL ODPOWIEDŹ NA SYGNAŁ PRZYCHODZĄCY Z PANELU ROZMÓWNEGO When a visitor presses the Call button on the entrance panel, all connected indoor Kiedy użytkownik (gość) naciska przycisk wywołania panelu rozmównego, displays will sound the call chime at the same time with the INCOMING CALL wszystkie wewnętrzne monitory w obiekcie będą...
- Page 12 Podczas monitorowania Door1/Door2/CCTV1/CCTV2 długie przytrzymanie przycisku lub przesunięcie obrazu palcem w lewo lub w prawo zmieni ustawienie obrazu z 16:9 na 4:3. PUBLIC ADDRESS MODE FUNKCJA ROZGŁOSZENIOWA The Public Address mode allows you to speak through all displays connected Funkcja ta umożliwia rozgłaszanie informacji na wszystkich monitorach w to the video entry phone system.
-
Page 13: Do Not Disturb Mode
DO NOT DISTURB MODE You can enable or disable the DO NOT DISTURB mode in the display System Settings menu. DISPLAY MONITORING With the display on standby, touch and hold to start listening through the microphone of another display in the voice entry phone system. If you have more than 2 displays in the video entry phone system, choose the display to which you wish to listen. -
Page 14: System Settings
USTAWIENIA SYSTEMOWE SYSTEM SETTINGS W trybie gotowosci, wybrac przycisk , a nastepnie przejsc do menu ustawien systemowych With the display on standby, touch and open the System Settings menu LEAVE MESSAGE MODE The mode allows each visitor to leave a voice message with the entrance panel when FUNKCJA POZOSTAWIENIA WIADOMOŚCI no one answers the call. - Page 15 Item System functions Options Note Selects the Choose the language: LANGUAGE display interface PL, EN, DE, FR, RU language. ENABLE The LED will flash if this mode is enabled. The mode is disabled by default during DO NOT DISTURB a call from an entrance panel, DISABLE display-to-display intercom (internal) calls and the public address mode.
- Page 16 DVR (DIGITAL VIDEO RECORDER) FUNKCJA DVR Start the DVR mode by touching . Touch to open the DVR mode Funkcja jest aktywowana poprzez naciśnięcie przycisku .Nacisnąć settings. przycisk a następnie wybrać opcję w celu przejścia do ustawień DVR. Automatyczna funkcja DVR: Aktywować...
-
Page 17: Dvr Settings
VIDEO SNAPSHOT CAPTURE SETTINGS Functions: Storage type Resolution Number of snapshots 640 x 480 / 320 x 240, Embedded flash memory 100 snapshots max. as set in Resolution 640 x 480 / 320 x 240, Depends on the microSD card microSD card as set in Resolution capacity... -
Page 18: Alarm Clock
By wybrać naciśnij przycisk ALARM ZEGAROWY ALARM CLOCK Nacisnąć przycisk w menu głównym, a następnie wybrać Touch in the main menu. Next, touch Item. Settings Options Note SYSTEM TIME Hour / Minutes / Seconds SETTING SYSTEM DATE Day / Month / Year SETTING ALARM RING TYPE 01 –... -
Page 19: Chime Settings
ALARMUJE W USTAWIONE DNI AKTYWNY W PRZEZ 1 MINUTĘ O USTAWIONEJ OKREŚLONE DNI GODZINIE By wybrać naciśnij przycisk CHIME SETTINGS USTAWIENIA DZWONKA Nacisnąć przycisk w menu głównym, a następnie wybrać Touch in the main menu. Next, touch Item. Settings Options Note Opcje Ustawienia... -
Page 20: Warranty
3. The BUYER shall make all warranty claims in writing at the point of sale or to ZAMEL Sp. z o.o. 4. ZAMEL Sp. z o.o. will examine each warranty claim as regulated by the applicable provisions of the Polish law.
