MBT-4000B Multi-Band Transceiver System
External Connectors
3.2.1.3

J2 | COMM

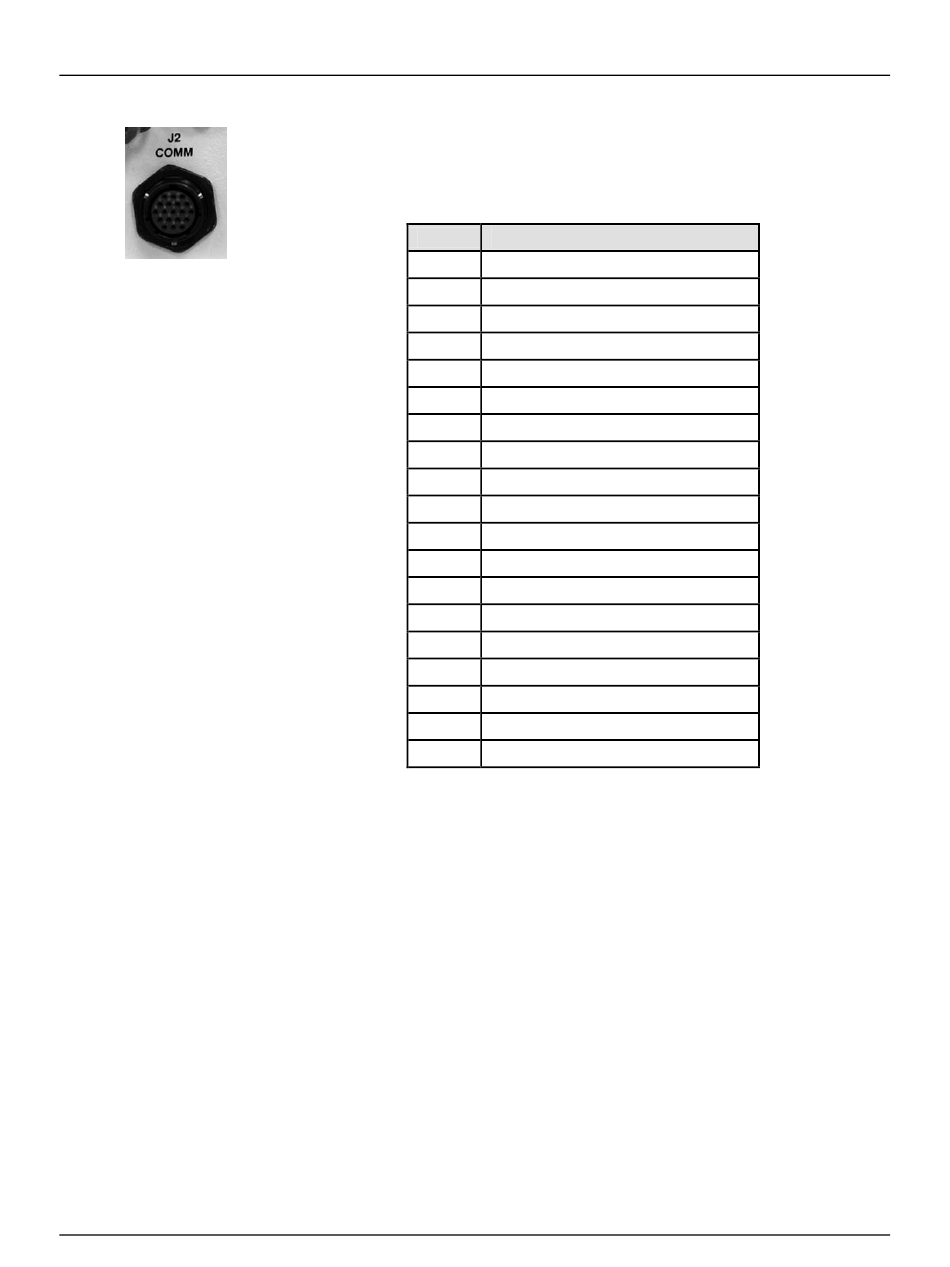

Use the J2 | COMM 19-pin circular connector for serial-based remote monitor
and control of the MBT-4000B Multi-Band Transceiver System.

Table 3-3. J2 | COMM Connector Pinouts

NOTE – Mating Connector:
CEFD P/N CN/MS3116J14-19P
(Cannon MS3116J14-19P)
Pin
Signal
A
EIA-485 Rx+
B
EIA-485 Rx-
C
EIA-485 Tx+
D
EIA-485 Tx-
E
EIA-232 RD
F
NC
G
EIA-232 TD
H
NC
J
NC
K
SUM FLT COMM
L
SUM FLT NO
M
SUM FLT NC
N
NC
P
NC
R
NC
S
NC
T
GND
U
GND
V
NC
3–4
Revision 1
MN/MBT4000B.IOM
