Remote Configuration, Monitoring and Control

Remote monitoring and control (M&C) of the MBT-4000B is possible via use of a remotely-
connected PC or dumb terminal. From this location, the user may issue commands and queries
to configure, control, and monitor one or more MBT-4000B systems.
Complete information for these features is provided in Chapter 5. SERIAL-BASED REMOTE
PRODUCT MANAGEMENT.
4.4

Monitoring Operations via the LED Indicators

The MBT-4000B Multi-Band Transceiver System features two Light-Emitting Diode (LED)
indicators – one for each operational unit (module). Each LED provides the user with visual cues
to the operational, online, and offline status of the sytem.
Figure 4-1 illustrates the location of the LED Indicators. Located on the top of the MBT-4000B
Base Module under a pivoting protective plate.
To view the LEDs: First, loosen the thumbscrew that secures the plate, and then swing the plate
away to reveal the LED display window.
See Appendix B. FAULTS/EVENTS for complete details for interpreting the LED Indicators.

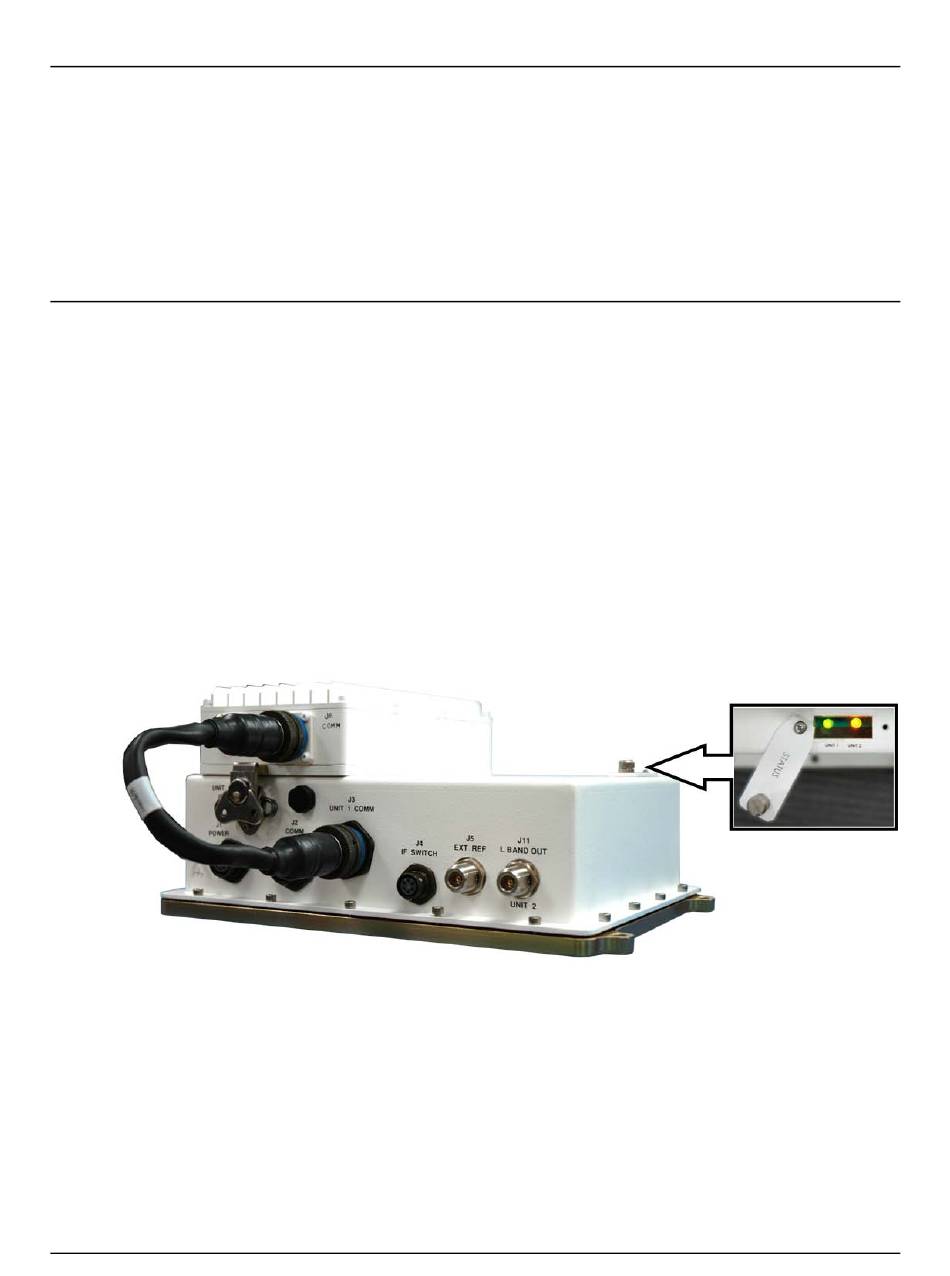

Figure 4-1. MBT-4000B Multi-Band Transceiver LED Indicators
