Chapter 3. EXTERNAL
CONNECTORS
3.1

External Connectors Overview

Connectors on the MBT-4000B Multi-Band Transceiver System (Figure 3-1) provide all necessary
external connections between the transceiver and other equipment.
(TOP) IF Side
(BOTTOM) RF Side – Cable Loop Removed for Clarity

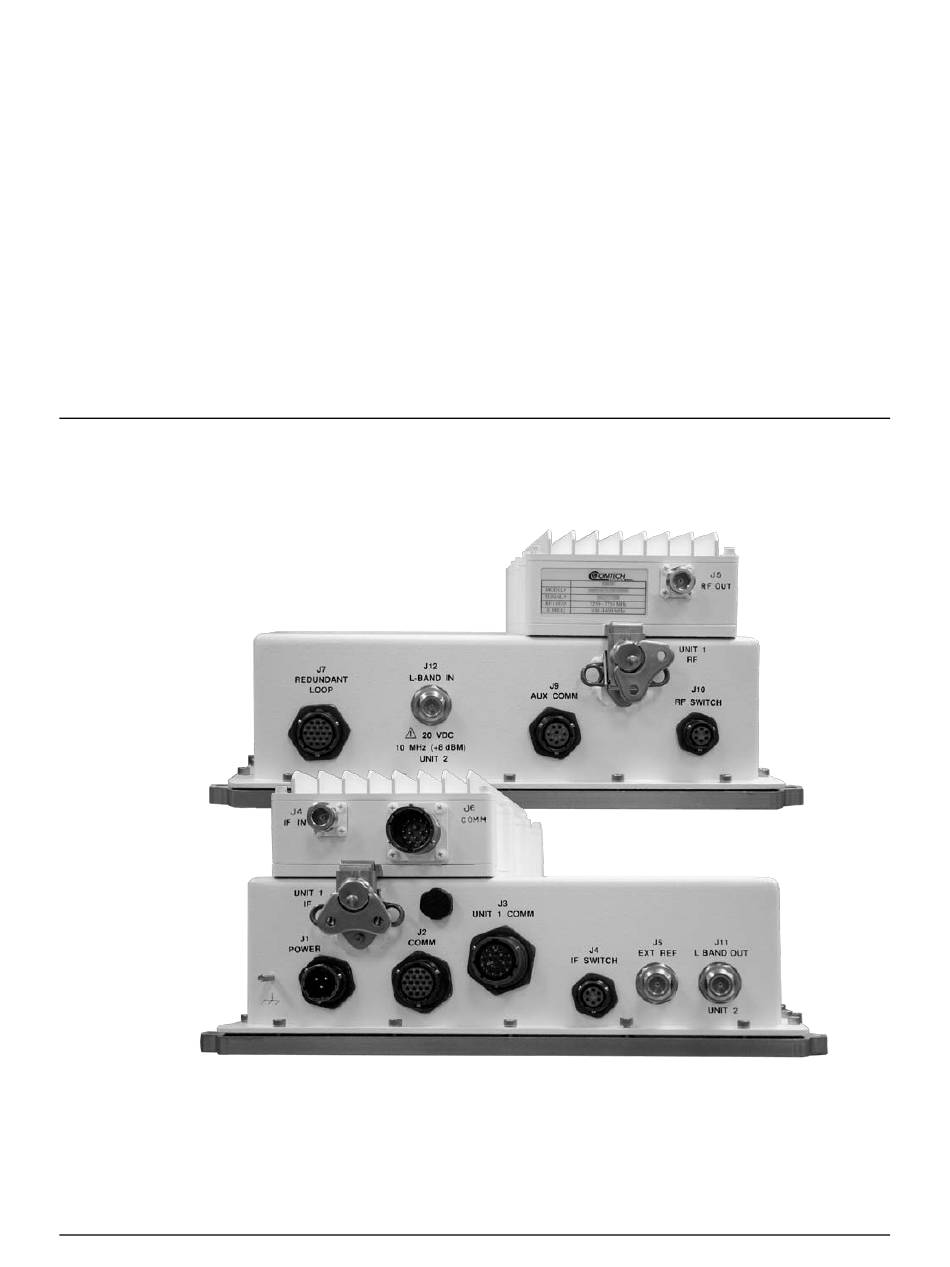

Figure 3-1. MBT-4000B External Connectors

3–1
