MBT-4000B Multi-Band Transceiver System
External Connectors

3.2.1 IF Signal Side Connections

3.2.1.1 Ground Connector
3.2.1.2

J1 | POWER

(Cable Loop Removed for Clarity)

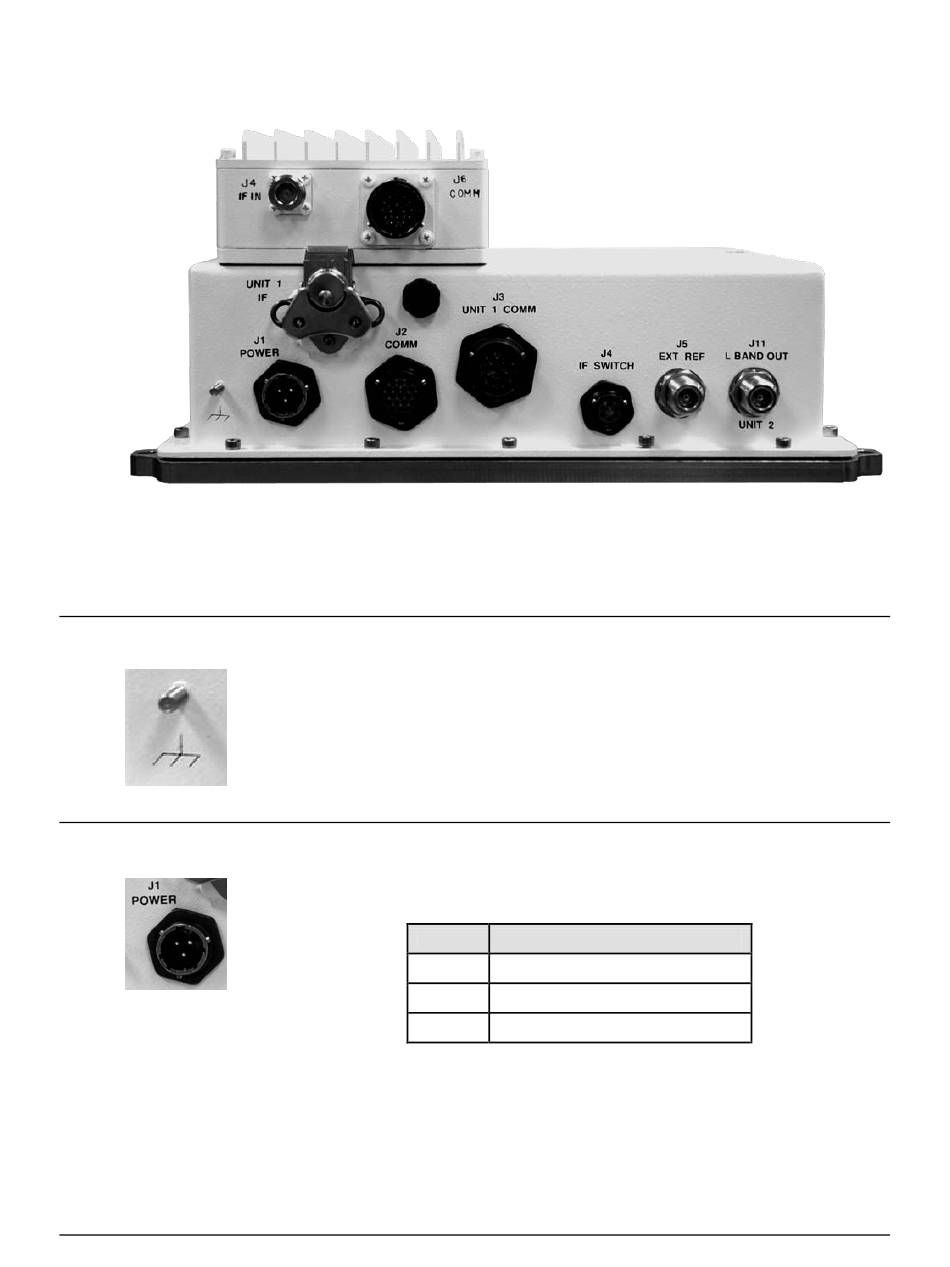

Figure 3-2. MBT-4000B External Connectors – IF Signal Side
Use this #10-32 stud to connect a common chassis ground among equipment.

Table 3-2. J1 | POWER Connector Pinouts

NOTE – Mating Connector:
CEFD P/N CN/MS-STPG03F02
(ITT Cannon KPT06B-12-3S)
Pin Signal
A LINE
B NEUTRAL
C GND
3–3
Revision 1
MN/MBT4000B.IOM
