54" Galvanized Slantwall Fan
Model:
G54SCL16GA
Installation and Operation Manual
PNEG-1433
Date: 01-01-15
PNEG-1433

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G54SCL16GA and is the answer not in the manual?

Questions and answers

Summary of Contents for Cumberland G54SCL16GA

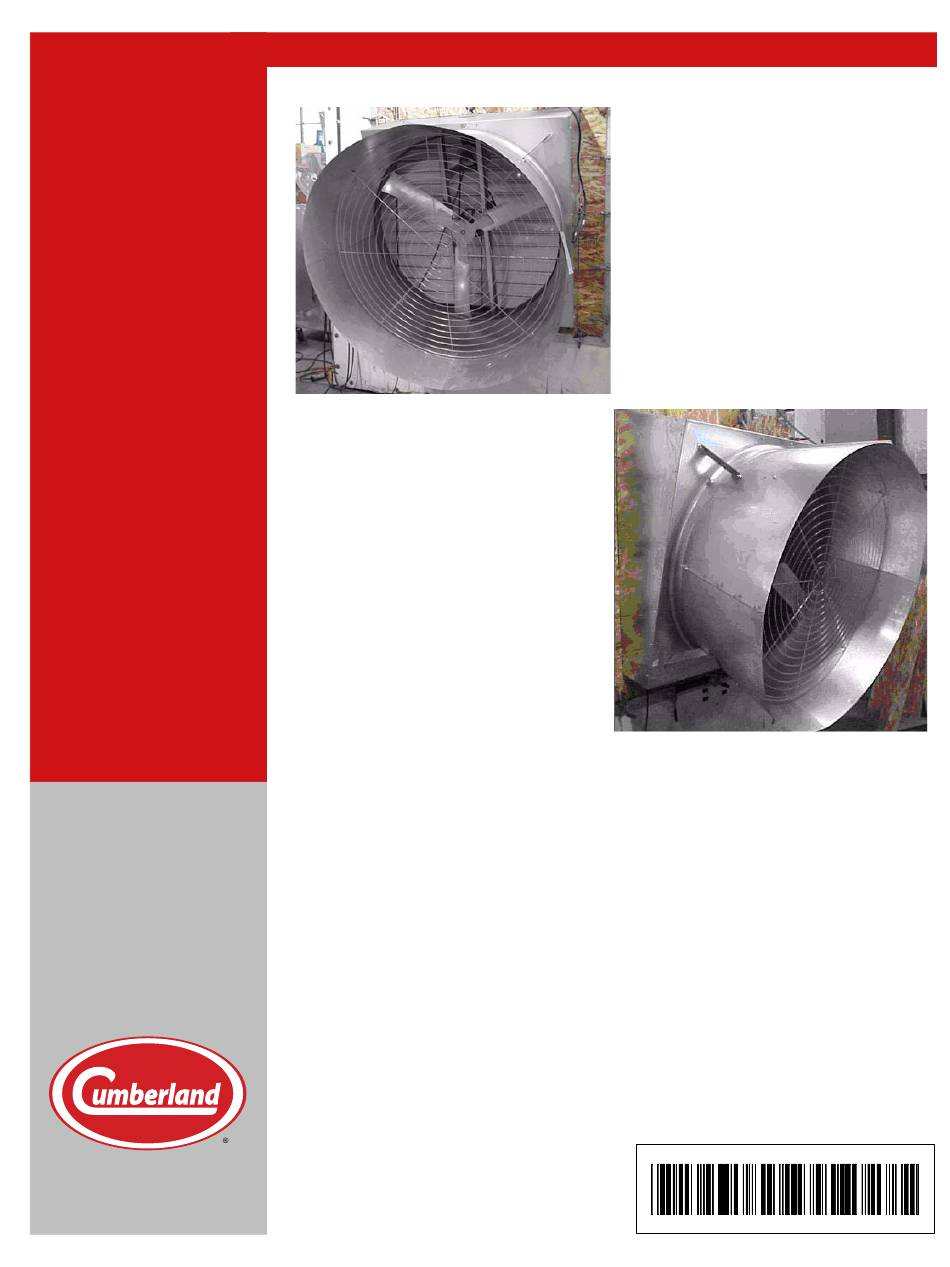

  • Page 1 54" Galvanized Slantwall Fan Model: G54SCL16GA Installation and Operation Manual PNEG-1433 Date: 01-01-15 PNEG-1433...
  • Page 2 Before beginning installation, check the condition of the fan. Remove the overwrap and packing materials and examine all parts and components for shipping damage. Any damage incurred must be reported immediately to the freight carrier. Airstream Ventilation Systems Model G54SCL16GA Size : 54" Galvanized Housing and Cone Voltage : 115V/230V Amps : 13.0/6.5...
  • Page 3: Table Of Contents

    Start-Up and Operation of the Fan .......................14 Chapter 8 Troubleshooting ..........................15 Chapter 9 Parts List .............................16 54" Slantwall Fan Parts (G54SCL16GA) (Nominal Version) ..............16 Replacement Parts List for Model G54SCL16GA (Nominal Version) ..........17 Chapter 10 Warranty ............................19 PNEG-1433 54" Galvanized Slantwall Fan...
  • Page 4: Chapter 1 Safety

    1. Safety Safety Guidelines This manual contains information that is important for you, the owner/operator, to know and understand. This information relates to protecting personal safety and preventing equipment problems. It is the responsibility of the owner/operator to inform anyone operating or working in the area of this equipment of these safety guidelines.
  • Page 5: Safety Instructions

    1. Safety Safety Instructions Our foremost concern is your safety and the safety of others associated with this equipment. We want to keep you as a customer. This manual is to help you understand safe operating procedures and some problems that may be encountered by the operator and other personnel. As owner and/or operator, it is your responsibility to know what requirements, hazards, and precautions exist, and to inform all personnel associated with the equipment or in the area.
  • Page 6 1. Safety Prepare for Emergencies Be prepared if fire starts. Keep a first aid kit and fire extinguisher handy. Keep emergency numbers for doctors, ambulance service, hospital, and fire department near your telephone. Keep Emergency Equipment Quickly Accessible Wear Protective Clothing Wear close-fitting clothing and safety equipment appropriate Eye Protection to the job.
  • Page 7: General Safety Information

    Use only genuine Cumberland parts for the installation and use of this fan. Use of other non-genuine parts is a misuse and may lead to dangerous situations.
  • Page 8: Electrical Safety

    Provisions for an adequate and safe power supply to the fan unit is essential for the safety and the safety of others associated with this equipment. Cumberland recommends that a qualified electrician perform all electrical wiring. All wiring must be installed to in accordance with national, state and local electrical codes.
  • Page 9: Chapter 2 Safety Decals And Locations

    2. Safety Decals and Locations WARNING DANGER DANGER WARNING STAY CLEAR OF SHEAR POINT ROTATING BLADE Blade may start Keep hands clear of moving automatically. May cause serious injury. parts. Do not operate with Disconnect and guard removed. Disconnect lockout power sources before servicing.
  • Page 10: Chapter 3 Installation Specifications

    3. Installation Specifications Construct the opening frame to the correct size (63-3/4" L x 61-3/4" W) as illustrated in the Figure 63-3/4" Tall 61-3/4" Wide Figure 3A The framing must be able to support the weight of the fan assembly. Ensure the load-bearing portion of the bottom sill is rigid and properly supported.
  • Page 11: Chapter 4 Cone Panel Assembly

    4. Cone Panel Assembly Next, assemble the four (4) cone panels to the fan using the hardware provided (use cone/guard hardware kit). First, lay out all four (4) cone panels face down (flanges up) and butt the flanges together as shown Figure 4A.
  • Page 12: Chapter 5 Shutter Installation

    5. Shutter Installation Figure 5A Ref # Description Turn Button Shutter Fan Housing Turn buttons (A) should be mounted with supplied #10 x 1-1/2" self-drilling screws, spaced evenly (Refer to Figure 5A), with three (3) per side with 3/16" spacer washer in between housing and the turn button (A).
  • Page 13: Chapter 6 Electrical Wiring

    6. Electrical Wiring Electrical Hook-Up As previously mentioned, All wiring must be installed in accordance with national, state and local electrical codes. A certified electrician must complete this portion of the installation for safety and to ensure that the wiring is correct for the application. First, remove the back cover of the motor exposing the wiring block.
  • Page 14: Chapter 7 Operation And Maintenance

    7. Operation and Maintenance Start-Up and Operation of the Fan 1. With the fan de-energized, rotate the prop by turning the fan pulley. Check for clearance between the prop tip and the housing. Check all fasteners to ensure they are tight. When satisfied, energize the fan and note the direction of rotation.
  • Page 15: Chapter 8 Troubleshooting

    8. Troubleshooting Troubleshooting Guide Symptom Probable Cause(s) Corrective Action(s) Defective motor bearing. Replace. Defective pillow block bearing. Replace. Parts are not securely anchored. Check all bolts, screws and fasteners. Excessive Noise. Damaged fan blade. De-energize fan. Turn prop and check tip clearance.
  • Page 16: Parts List

    9. Parts List 54" Slantwall Fan Parts (G54SCL16GA) (Nominal Version) Ref # Part # Description GS-60 or PS-60 Shutter 12-0200 Bottom Panel 12-0203 Right Side Panel 12-0202 Left Side Panel 12-0201 Top Panel 12-0213 Motor Mount Bracket 017-1422-9 Sheave, AK30-5/8"...
  • Page 17: Replacement Parts List For Model G54Scl16Ga (Nominal Version)

    9. Parts List Replacement Parts List for Model G54SCL16GA (Nominal Version) Component Description 017-1422-9 Sheave, AK30-5/8" 10-0108 Galvanized Cone Mounting Hardware 12-0219 SW Conefan Conestrut Angle S-3611 Flange Nut 5/16"-18 YDP Grade 2 S-6606 Flange Bolt 5/16"-18 x 3/4" ZN Grade 5...
  • Page 18 NOTES PNEG-1433 54" Galvanized Slantwall Fan...
  • Page 19: Chapter 10 Warranty

    3 to 5 years - end-user pays 25% All Fiberglass Propellers Lifetime 5 to 7 years - end-user pays 50% AP and Cumberland Flex-Flo/Pan Feeding System Motors 2 Years 7 to 10 years - end-user pays 75% Feeder System Pan Assemblies...
  • Page 20 1004 E. Illinois St. Assumption, IL 62510-0020 Phone: 1-217-226-4421 Fax: 1-217-226-4420 www.gsiag.com Cumberland is a part of GSI, a worldwide brand of AGCO Corporation. Copyright © 2015 by The GSI Group, LLC Printed in the USA CN-315800...
