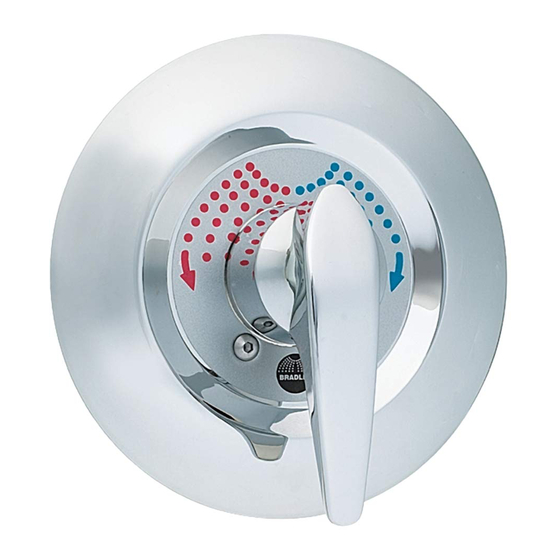

Bradley Equa-Flo HD S59-1005 Installation

ASSE 1016 & UPC Certified
For use with shower heads rated
at 5.7 L/min (1.5 gpm) or higher.
Read this entire installation manual to ensure proper installation. When finished
with the installation, file this manual with the owner or maintenance department.
Installation
Compliance and conformity to local codes and ordinances is the responsibility
of the installer.
Hot limit screw is set in the maximum temperature position. Failure to adjust
properly may result in serious scalding. This valve may not protect from scalding
if there is a failure of other temperature-controlling devices elsewhere in the
plumbing system. Excessive heat may cause damage to internal parts.
Separate parts from packaging and make sure all parts are accounted for before
Packing List
•
discarding packaging material. If any parts are missing, do not begin installation
•
•
T H IS
•
E
S ID until you obtain the missing parts.
U P
Make sure that all water supply lines have been flushed and then completely
turned off before beginning installation. Debris in supply lines can cause valves
to malfunction.
Product warranties may be found under "Products" on our web site at
www.bradleycorp.com.
215-1492 Rev. E EN 12-03-009
© 2012 Bradley
Page 1 of 3 8/7/2012
Installation
S59-1005
Bradley Equa-Flo™ HD
Pressure-Balancing Shower Valve
Table of Contents
Supplies Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Adjusting the Equa-Flo™ HD Valve. . . . . . . . . . . . . . . . . . 3
IMPORTANT!
