Bradley S19-2000 Series Installation Manual
  1. Manuals
  2. Brands
  3. Bradley Manuals
  4. Control Unit
  5. S19-2000 Series
  6. Installation manual

Bradley S19-2000 Series Installation Manual

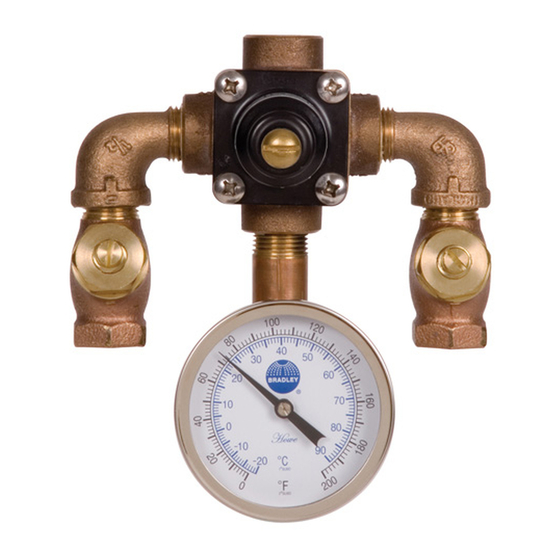

Thermostatic mixing valve with optional cabinet
Hide thumbs Also See for S19-2000 Series:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
S19-2000
S19-2000EFX
ASSE 1071 & cUPC Certified
Inlet Connections: 1/2" NPT
Outlet Connection: 1/2" NPT
Temperature Range: 65° – 90° F
Maximum Pressure: 125 PSI
Inlet Temperature Hot: 120° – 180° F
Inlet Temperature Cold: 33° – 80° F
Minimum Temperature Differential
(from valve set point): 20° F
215-1291 Rev. N; EN 12-09-002
© 2012 Bradley
Page 1 of 22
7/18/2012
S86-066
(Cabinet Only)
S19-292
(Cabinet Only)
Raccords d'arrivée : 1/2 po NPT
Raccord de sortie : 1/2 po NPT
Plage de température : 65 – 90 °F
Pression maximum : 125 lb/po
Température d'arrivée, eau chaude : 120 – 180 °F
Température d'arrivée, eau froide : 33 – 80 °F
Différence de température minimum
(à partir de valeur de consigne de robinet) : 20 °F
Installation
S19-2000,
S19-2000EFX Series
Thermostatic Mixing Valve
with Optional Cabinet
Robinet
thermostatique
mélangeur
avec cabinet facultatif
Válvula mezcladora termostática
con armario opcional
Table of Contents
Supplies Required ..................................................... 2
Optional Equipment Installation ................................ 2
Dimensions ............................................................... 3
Installation Instructions ............................................. 4
Troubleshooting ......................................................... 6
Sommaire
Fournitures requises ................................................. 9
Installation de l'équipement optionnel ....................... 9
Dimensions ............................................................. 10
Instructions relatives à l'installation ......................... 11
Dépannage ............................................................. 13
Tabla de contenidos
Materiales necesarios ............................................. 16
Instalaciones de equipos opcionales ...................... 16
Dimensiones ........................................................... 17
Instrucciones de instalación .................................... 18
Solución de problemas ........................................... 20
Conexiones de entrada: NPT de 1/2 pulg.
Conexión de salida: NPT de 1/2 pulg.
Rango de temperaturas: 65 – 90 °F
2
Presión máxima: 125 PSI
Temperatura de entrada, caliente: 120 – 180 °F
Temperatura de entrada, fría: 33 – 80 °F
Diferencial de temperatura mínima
(desde el punto de ajuste de la válvula): 20 °F
P.O. Box 309, Menomonee Falls, WI 53052-0309
Phone: 1.800.BRADLEY
bradleycorp.com
Fax: 262.253.4161
