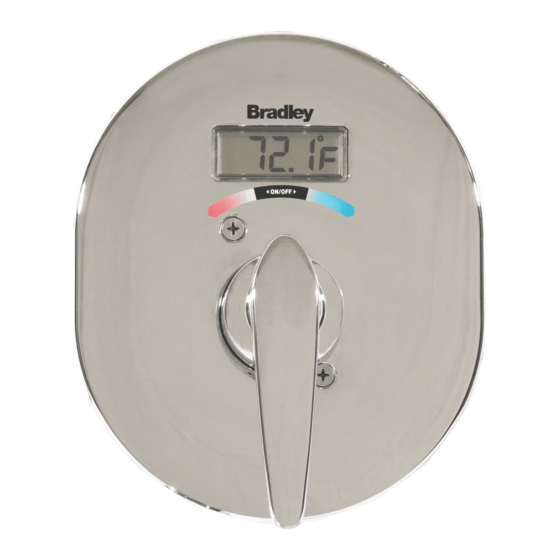

Thermostatic mixing shower valve

Advertisement

Quick Links

For use with shower heads rated
at 5.7 L/min (1.5 gpm) or higher.
Specifications
Inlet Connections:
Outlet Connections:
Temperature Range:
Maximum Pressure:
Inlet Temperature, Hot:
Inlet Temperature, Cold:
Minimum Temp. Differential
(From valve set point):
215-1737 Rev. C: ECO 19-03-024
© 2020 Bradley
Page 1 of 5
1/8/2020
1/2" NPT
1/2" NPT
Cold - 110°F
125 PSIG
120°-180°F
40°-80°F
20°F

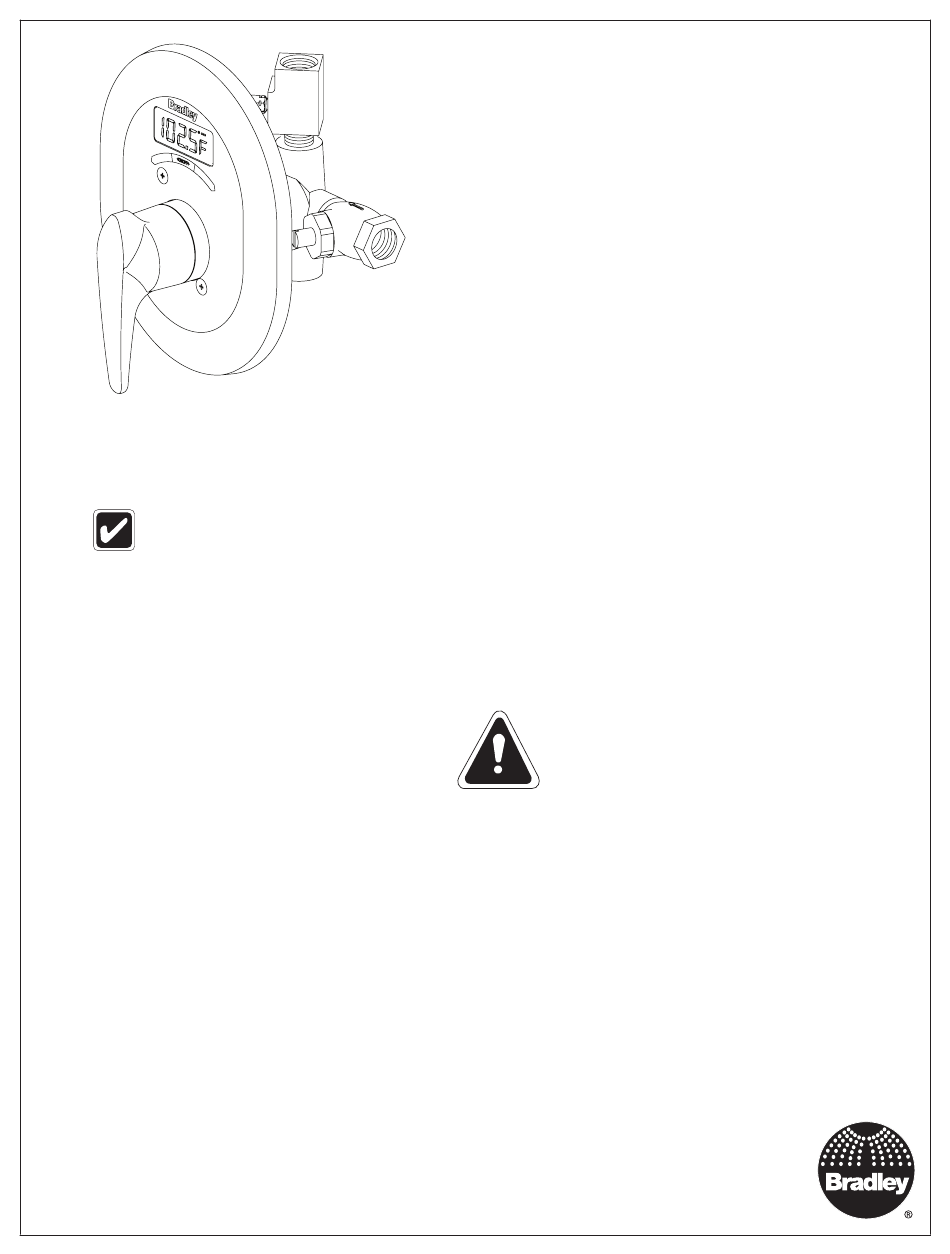

Installation
S59-2005T1
Bradley TMVT1 Thermostatic
Mixing Shower Valve

Table of Contents

Safety Information ............................................................2
Supplies Required ............................................................2
LCD Display Information ...................................................2
Rough-In ...........................................................................3
Test Unit ............................................................................5
Attach Escutcheon and Handle ........................................5
Troubleshooting ................................................................6
Read the instructions in this manual before
beginning installation. Save these instructions
and refer to them for inspection, maintenance,
and troubleshooting information.
For questions regarding the operation, installation or maintenance of this
product, visit bradleycorp.com or call 800.BRADLEY (800.272.3539).
Product warranties and parts information may also be found under
"Resources" on our website at bradleycorp.com.
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
P.O. Box 309
+1 262 251 6000
www.bradleycorp.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Equa-Flo TMVT1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bradley Equa-Flo TMVT1

  • Page 1 120°–180°F For questions regarding the operation, installation or maintenance of this Inlet Temperature, Cold: 40°–80°F product, visit bradleycorp.com or call 800.BRADLEY (800.272.3539). Minimum Temp. Differential (From valve set point): 20°F Product warranties and parts information may also be found under “Resources”...
  • Page 2 • Adjustable wrench LCD Display Information The Bradley TMVT1 S59-2005T1 LCD Shower Valve is designed to operate for up to 2 years on a set of high-quality alkaline batteries*. Bradley strongly recommends using only high-quality, name-brand alkaline batteries for maximum performance.
  • Page 3 (83) for finished wall 1-1/4" Valve (provided). (32) Center 2-3/4" (70) 1-7/8" (48) 4-1/2" (114) "Back-to-Back" Installation Supplies Reversed See Step 2 for required valve adjustment and "Back-to-Back" installation. Standard Install Cold Bradley • 215-1737 Rev. C: ECO 19-03-024 1/8/2020...
  • Page 4 • Turn off hot and cold supplies. • Remove (2) screws that hold down cap. • Remove entire valve assembly from the valve body and rotate 180°. Arrow on cap must point to HOT side. Re-install screws. Bradley • 215-1737 Rev. C: ECO 19-03-024 1/8/2020...
  • Page 5 Attach Escutcheon and Handle Place the escutcheon on the wall over the valve and secure with the screws provided. Place handle on stem as shown, and tighten setscrew. Bradley • 215-1737 Rev. C: ECO 19-03-024 1/8/2020...
  • Page 6 Do not remove the seat. The components may be brushed with a small wire brush to remove debris. If the stop/check valves need to be replaced, contact your Bradley representative and ask for Stop/Check Valve (S27-102). Inspect Thermostat: Temperature Thermostat is slowly failing.
