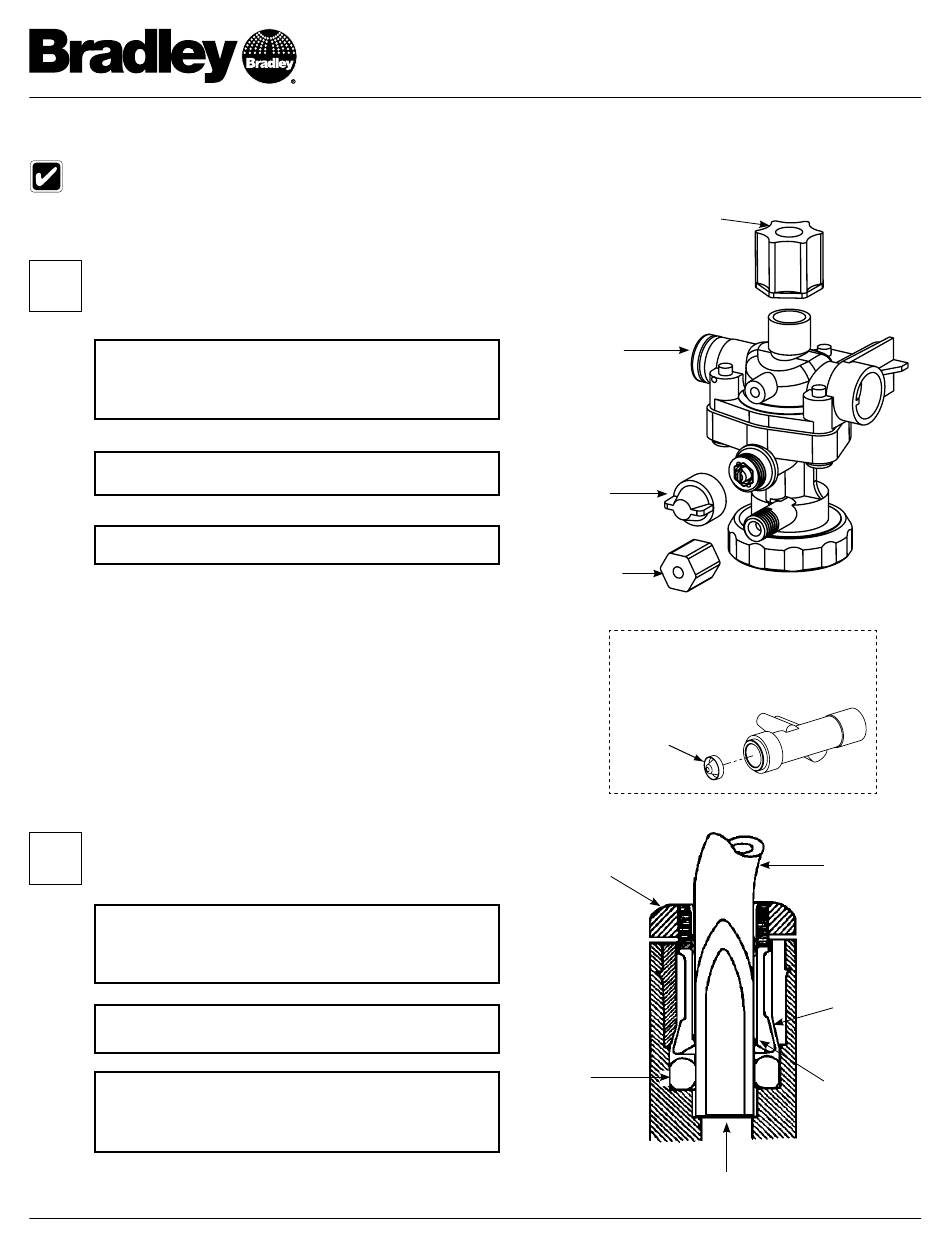

Metering Air Valve
The air valve timer is located next to the tube connector on the
air valve body. The timer is capped with a filter to prevent dirt
build-up on the timer. The air valve timing can be adjusted from
5–60 seconds.
1
Adjust Air Valve Meter Time
Remove filter cap and use a screwdriver to tighten or
A
loosen the timer (see illustration at right). Turning the
timer clockwise increases the time; turning the timer
counterclockwise decreases the time.
B
Continue to adjust until the timer is set at desired
length.
C
Replace filter cap over the timer.
2
Tube Connection Leaks
Push in the orange manual release button while
A
pulling the tube out (see illustration at right) to
disconnect the tube at the connector. No tools are
needed.
B
To correct a leak, press tubing firmly into the
connector and make sure it is seated.
If leak persists, remove tubing from the fitting, and
C
trim the tubing end square with a razor-sharp knife.
If leak continues, replace the fitting or contact your
Bradley representative for assistance.
1 of 3
Operation and Service Guide: Ablution
1.800.BRADLEY • Fax: 262.251.5817 • bradleycorp.com
Air
Valve
Filter
Cap
Air Tube
Connector
(173-028)
Manual
Reset
Button
Sealing
Ring
Bradley • 215-1369-33 Rev. A: ECN 14-03-005B
P.O. Box 309 • Menomonee Falls, WI 53052-0309
Water Tube
Connector
Tempered Line Adapter Option
Part no. S39-804
(replaces S59-4000 if tempered line
is used)
Strainer
Tube
Stop
Air Valve
Tubing
Locking
Slope
Gripping
Ridge
