Bradley Navigator S59-4016 Series Installation

Bradley Navigator S59-4016 Series Installation

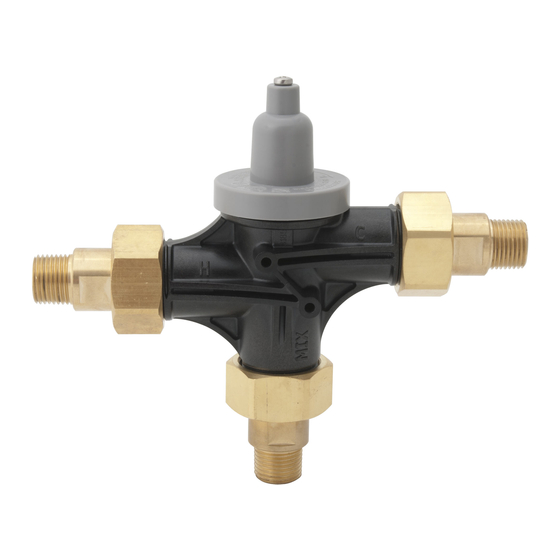

Thermostatic mixing valve

Advertisement

Quick Links

S59-4016N
S59-40016Y
ASSE 1017, 1069, 1070 &cUPC certified
215-1710 Rev. E; ECN 17-09-007
© 2017 Bradley
Page 1 of 5
3/30/2017
®

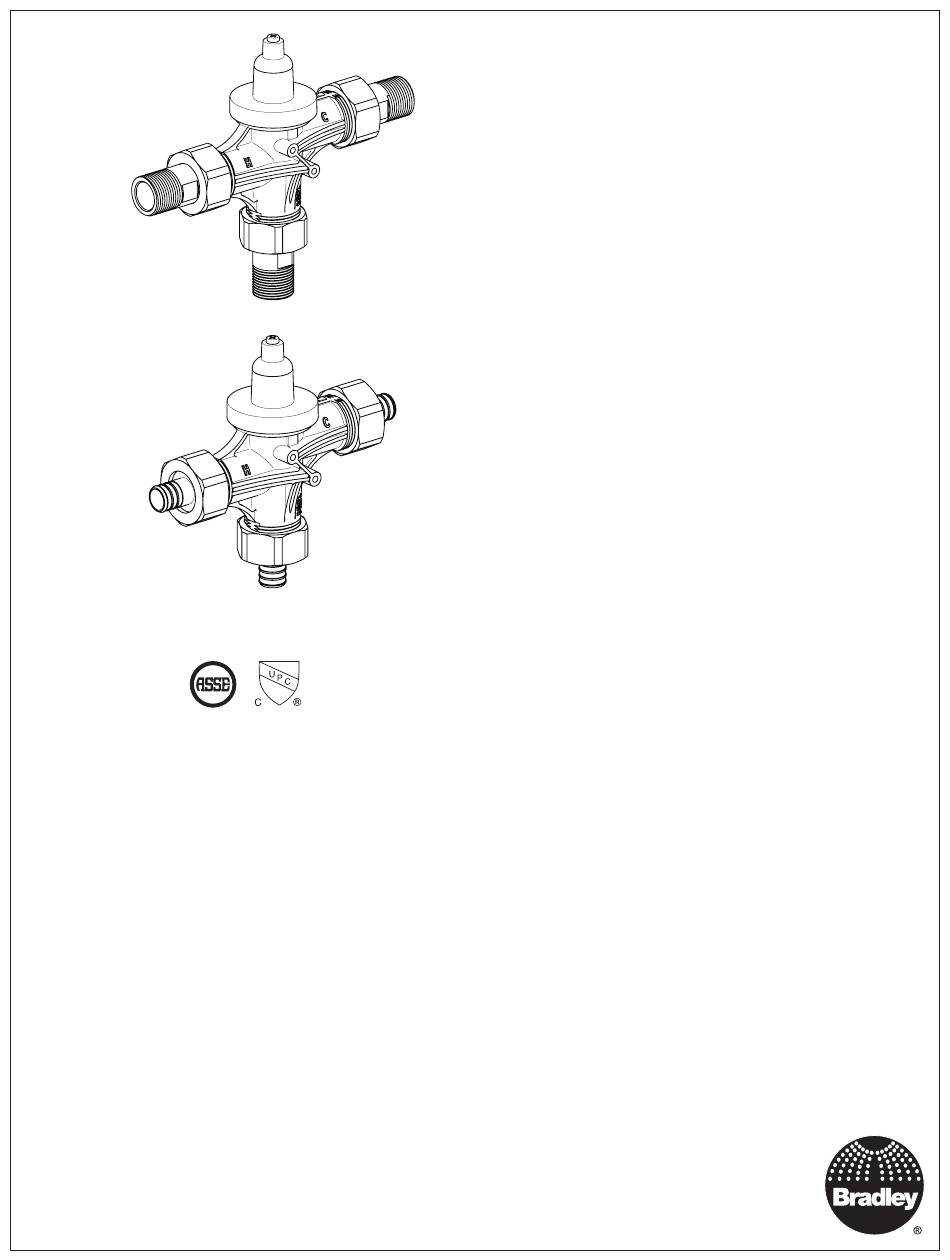

S59-4016 Series
Navigator
®
Mixing Valve
S59-4016D ½" NPT/Sweat Connections
S59-4016X ½" PEX Connections
S59-4016N ¾" NPT Connections
S59-4016S ¾" Sweat Connections
S59-4016Y ¾" PEX Connections
Table of Contents
Supplies and Tools Required . . . . . . . . . . . . . . . . . . . . . . .3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Maintenance And Troubleshooting . . . . . . . . . . . . . . . . . . .4
Assembly Of Components and Parts List . . . . . . . . . . . . . .5
Temperature Range: 59 – 140°F
Maximum Pressure: 125 PSIG
Inlet Temperature, Hot: 120 – 180°F
Inlet Temperature, Cold: 33 – 80°F
Minimum Temperature Differential (from valve set point): 10°F
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
Thermostatic
P.O. Box 309
+1 262 251 6000
bradleycorp.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Navigator S59-4016 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bradley Navigator S59-4016 Series

  • Page 1 Minimum Temperature Differential (from valve set point): 10°F ® P.O. Box 309 215-1710 Rev. E; ECN 17-09-007 Menomonee Falls, WI 53052 USA 800 BRADLEY (800 272 3539) © 2017 Bradley +1 262 251 6000 Page 1 of 5 3/30/2017 bradleycorp.com...
  • Page 2 Separate parts from packaging and make sure all parts are accounted for before discarding packaging material. If any parts are missing, do not begin installation until you obtain the missing parts. Product warranties may be found under “Products” on our web site at bradleycorp.com. Bradley • 215-1710 Rev. E; ECN 17-09-007 3/30/2017...
  • Page 3 Shut the cold water inlet off by closing the cold water inlet valve . While the cold water supply is off, check to make sure that the hot water flow has shut down . If hot water has shut down, fully reopen cold water supply . Bradley • 215-1710 Rev. E; ECN 17-09-007 3/30/2017...
  • Page 4 2 . Remove cover and U-clip . Remove the cartridge and clean the strainer . It is not required to grease cartridge, however if desired, use silicone grease only . Do not use grease on check valves . Bradley • 215-1710 Rev. E; ECN 17-09-007 3/30/2017...
  • Page 5 Tailpiece Nut Mounting Bracket Kit S45-2456 (optional) 129-067 ¾" Sweat Tailpiece 129-068 ½" NPT/Sweat Tailpiece 129-066 ¾" NPT Tailpiece 129-070 ¾" PEX Tailpiece 129-069 ½" PEX Tailpiece * Included with Prepack S65-380 Bradley • 215-1710 Rev. E; ECN 17-09-007 3/30/2017...

This manual is also suitable for:

Navigator s59-4016dNavigator s59-4016xNavigator s59-4016nNavigator s59-4016sNavigator s59-4016yNavigator s59-4000a ... Show all
