ASSE 1017 and cUPC Certified
®
WARNING Installation and final temperature
adjustment are the responsibility
of the installer.
215-1297 Rev. L; ECN 17-08-009
© 2017 Bradley
Page 1 of 7
9/29/2017

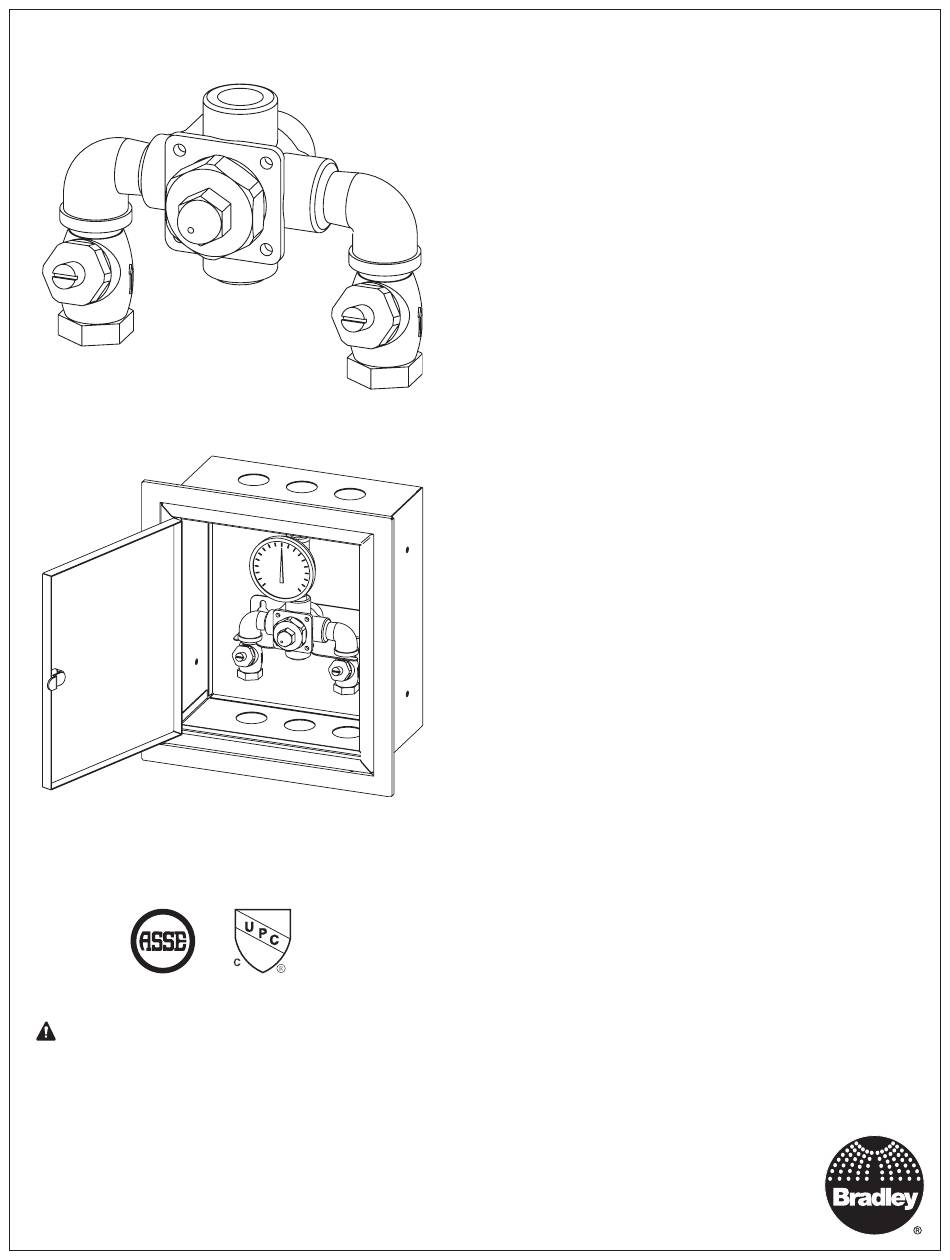

Installation

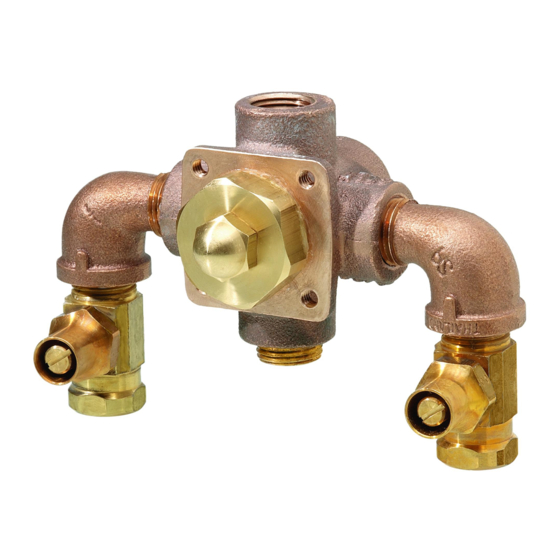

Thermostatic Mixing
Valve for Sinks/Faucets
Model S59-2007 (Valve Only)
Model S59-2007RE (Valve with
Recess-Mounted Enamel Cabinet)
Model S59-2007SE (Valve with
Surface-Mounted Enamel Cabinet)
Model S59-2007RS (Valve with
Recess-Mounted Enamel Cabinet)
Model S59-2007SS (Valve with
Surface-Mounted Enamel Cabinet)
Table of Contents
Supplies recommended for installation ...........................................2
Tools required for temperature adjustment .....................................2
Tools required for maintenance/troubleshooting .............................2
Install Optional Cabinet ...................................................................3
Installation Instructions ....................................................................4
Connect Supply Lines and Install Thermometer .............................4
Adjust Temperature with Water Running .........................................4
Test Unit ..........................................................................................4
Troubleshooting: Piston Disassembly and Cleaning .......................5
Troubleshooting Thermostatic Mixing Valve ....................................6
Parts Breakdown .............................................................................7
Inlet Connections: 1/2" NPT
Outlet Connections: 1/2" NPT
Temperature Range: 95-115°F
Maximum Pressure: 125 PSIG
Inlet Temperature, Hot: 120°-200°F
Inlet Temperature, Cold: 33°-80°F
Minimum Temperature Differential
(from valve set point): 20°F
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
P.O. Box 309
+1 262 251 6000
bradleycorp.com
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Bradley S59-2007
Summary of Contents for Bradley S59-2007
-
Page 1: Table Of Contents
Installation Thermostatic Mixing Valve for Sinks/Faucets Model S59-2007 (Valve Only) Model S59-2007RE (Valve with Recess-Mounted Enamel Cabinet) Model S59-2007SE (Valve with Surface-Mounted Enamel Cabinet) Model S59-2007RS (Valve with Recess-Mounted Enamel Cabinet) Model S59-2007SS (Valve with Surface-Mounted Enamel Cabinet) Table of Contents Supplies recommended for installation ...........2... -
Page 2: Supplies Recommended For Installation
Tools required for maintenance/troubleshooting • 3/4" wrench (for acorn nut removal) • 15/16" socket wrench and needle-nose pliers (for piston liner removal) • 1/2" deep well socket wrench (for piston assembly’s upper seat removal) Bradley • 215-1297 Rev. L; ECN 17-09-008 9/29/2017... -
Page 3: Optional Recessed / Surface Mounted Cabinet Dimensions
¹⁄₂" NPT Total Inlets 11" ⁵⁄₁₆" Ø (279) (6) Holes 13" (330) 8¹⁄₂" (216) BOTTOM VIEW 3¹⁄₄" (83) ³⁄₄" (19) 2" (51) 5¹⁄₂" (140) 11" 2" 7" MOUNTING HOLE LOCATIONS (279) (51) (178) Bradley • 215-1297 Rev. L; ECN 17-09-008 9/29/2017... -
Page 4: Installation Instructions
Shut the cold water supply off by closing the cold water inlet valve or supply check valve. While the cold water supply is off, check to make sure that the hot water flow has shut down. If hot water is shut down, reopen cold water supply. Bradley • 215-1297 Rev. L; ECN 17-09-008 9/29/2017... -
Page 5: Troubleshooting: Piston Disassembly And Cleaning
If, after a thorough cleaning, the piston does not move freely, the piston/liner assembly must be Seal replaced. Contact your Bradley representative and ask for Piston/Liner Kit (part number S65-205). Screw Spring Liner with O-Ring Push Down Then Release Bradley • 215-1297 Rev. L; ECN 17-09-008 9/29/2017... -
Page 6: Troubleshooting Thermostatic Mixing Valve
115° water. The pushrod should pop out of the thermostat approximately 1/10". If the thermostat pushrod does not pop out, the thermostat must be replaced (it cannot be repaired). Contact your Bradley representative and ask for Thermostat Kit (Part number S65-417). Clean Stop and Check Valves:... -
Page 7: Parts Breakdown
Retainer Ring O-Ring Thermostat Liner O-Ring and Seal Kit S65-204 O-Ring Spring Item Qty. Description Screw Retainer O-Ring Seal O-Ring Piston O-Ring Screw Spring Seal Nametag Retainer O-Ring Acorn Nut Retainer Ring O-Ring Bradley • 215-1297 Rev. L; ECN 17-09-008 9/29/2017...
