Rear panel

The rear panel contains I/O ports, network interface ports, power supplies, and a hard disk carrier.
I/O ports
The I/O ports are color-coded per the PC 99 specification. The locations of the various I/O ports are
shown in the following figure.

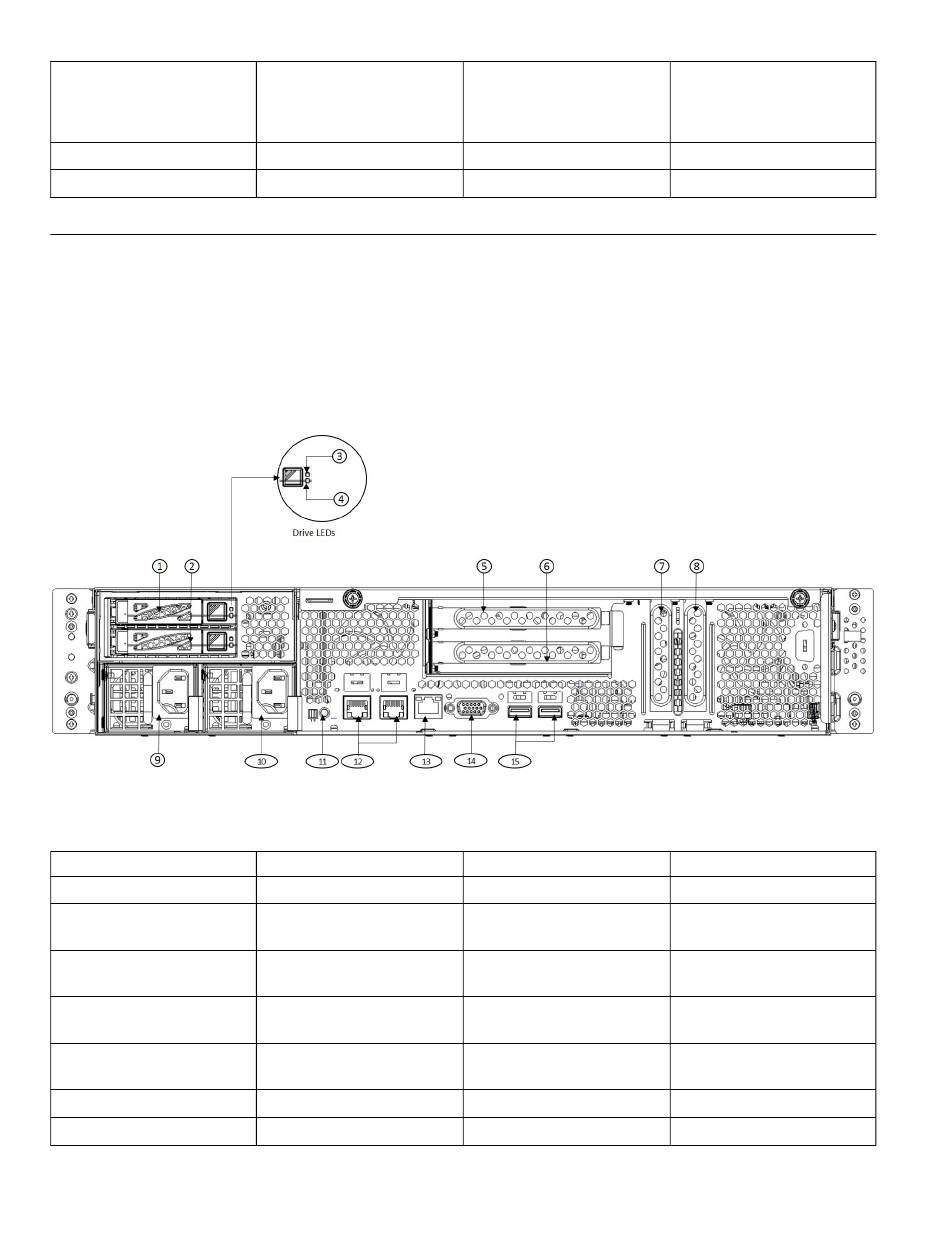

Figure 15. Rear panel I/O ports for the appliance
Table 5. Legend for rear panel I/O Ports for the appliance
1
2
3
4
5
6
7
8
14
IBM Cloud Object Storage System: Slicestor 2212A Appliance Manual 3401-S10/3403-S10
Disk drive 1
Disk drive 2
Disk drive 3
OS Disk Drive 0
OS Disk Drive 1
Individual disk activity
LED (green)
Individual disk status LED
(blue/amber)
PCIe card slot (on riser
card)
PCIe card slot (on riser
card)
Disk controller card slot
Unpopulated PCIe slot
22
23
9
10
11
12
13
14
15
Asset tag (a pullout mylar
tag for customer use to add
the server serial number or
MAC address).
Rack mount screw (2)
Power supply 1
Power supply 2
Unit identification
button/LED
1 GbE RJ45 ports (2)
10/100 Mbit/s management
port
DB-15 video connector
USB 2.0 ports (2)
