Norac UC5 Can Bus Installation Manual

Spray height control system, rogator active roll 2012 plus
Hide thumbs Also See for UC5 Can Bus:
Table of Contents

Advertisement

Quick Links

Download this manual
Rogator Active Roll (2012+)
Installation Manual
RG12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UC5 Can Bus and is the answer not in the manual?

Questions and answers

Related Manuals for Norac UC5 Can Bus

Summary of Contents for Norac UC5 Can Bus

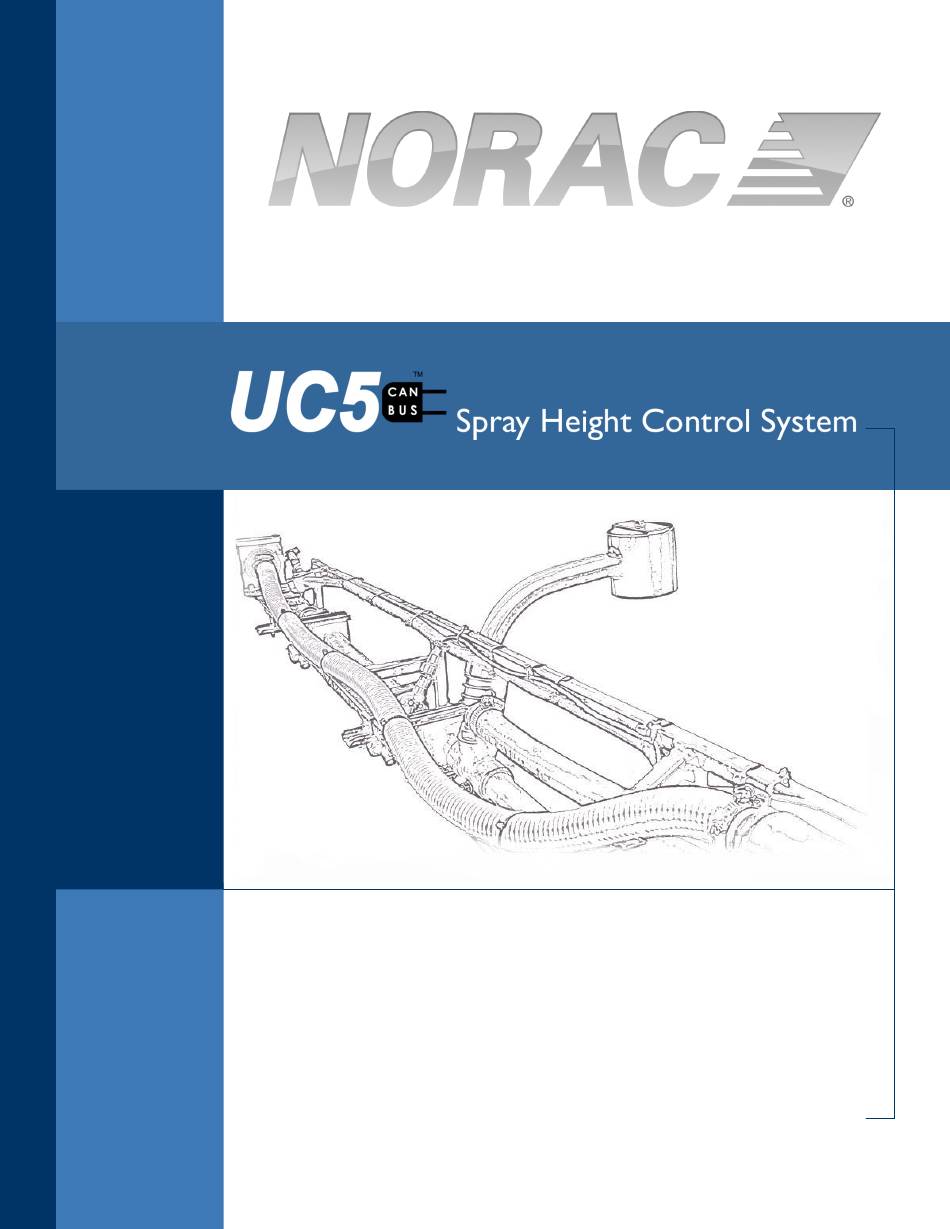

  • Page 1 Rogator Active Roll (2012+) Installation Manual RG12...
  • Page 2 Reorder P/N: UC5-BC-RG12-INST Rev G (Rogator Active Roll (2012+)) NOTICE: NORAC Systems International Inc. reserves the right to improve products and their specifications without notice and without the requirement to update products sold previously. Every effort has been made to ensure the accuracy of the information...

  • Page 3: Table Of Contents

    Contents Introduction ........................ 1     Technical Specifications .................... 2     General UC5 System Layout ..................3     Kit Parts ........................4     Pre-Install Checklist ....................10     Ultrasonic Sensor Installation ................11     Module Installation ....................17  ...

  • Page 4: Introduction

    Introduction Congratulations on your purchase of the NORAC UC5 Spray Height Control System. This system is manufactured with top quality components and is engineered using the latest technology to provide operating reliability unmatched for years to come. When properly used the system can provide protection from sprayer boom damage, improve sprayer efficiency, and ensure chemicals are applied correctly.

  • Page 5: Technical Specifications

    Technical Specifications CAN ICES-3(A)/NMB-3(A) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.

  • Page 6: General Uc5 System Layout

    General UC5 System Layout Figure 1 illustrates the general layout of the UC5 system components: Figure 1: General UC5 System Layout...

  • Page 7: Kit Parts

    Kit Parts Kit Overview Figure 2: RG12 System Parts...
  • Page 8 Hydraulic Plumbing Figure 3: RG12 Hydraulic Plumbing...
  • Page 9 List of Parts Item Part Number Name Quantity 44706-01 KIT CABLE TIE BLACK 10 PCS 21 IN 150 PCS 7.5 IN 44728 MOUNTING BRACKET COMPLETE UC4 BREAKAWAY EXTENDED 44695-4 MOUNTING BRACKET UC3 SENSOR 6IN LG 44724 BRACKET BREAKAWAY SPACER 2IN WITH BOLTS 43220-03 CABLE UC5 NETWORK 14 AWG 3M 43220-01...
  • Page 10 Hydraulic Fitting Kit Details (P/N: 44865-54) Item Part Number Name Quantity Picture 104586 TEE ADAPTER - 6FORXR 6MORT 104885 TEE ADAPTER - 8FORXR 8MORT 105327 MALE TO FEMALE ADAPTER - 12FORX 6MOR 106136 PLUG - 12MORP 44917 MALE ADAPTER - 6MB 6MOR 104369 PLUG - 6MBP 44928...
  • Page 11 Hydraulic Fitting Kit Details (P/N: 44865-65) Picture Item Part Number Name Quantity 44917 MALE TO MALE ADAPTER - 6MB 6MOR 44975 ORIFICE INSERT .036 IN ONE WAY 44927 ORIFICE INSERT .031 IN ONE WAY 104590 90 DEGREE ADAPTER - 6MOR 6FORX90 6 M B - 6 M OR X 90 Fitting Name Example:...
  • Page 12 BRACKET MOUNTING LINEAR ROLL ROGATOR LT - LOWER Do not use high speed power tools/drills when installing hardware. The use of dielectric grease is not recommended on any NORAC electrical connections. To ensure all stainless steel hardware does not gall or seize apply a light coating of the supplied Permatex Anti-seize grease to all threaded parts upon installation.

  • Page 13: Pre-Install Checklist

    Pre-Install Checklist The pre-install checklist is necessary to check the existing sprayer functionality before the installation. 1. Unfold the sprayer over a flat, unobstructed area (i.e. no power lines…etc.). 2. Ensure all boom-fold operations are functional (place a check mark in boxes below). 3.

  • Page 14: Ultrasonic Sensor Installation

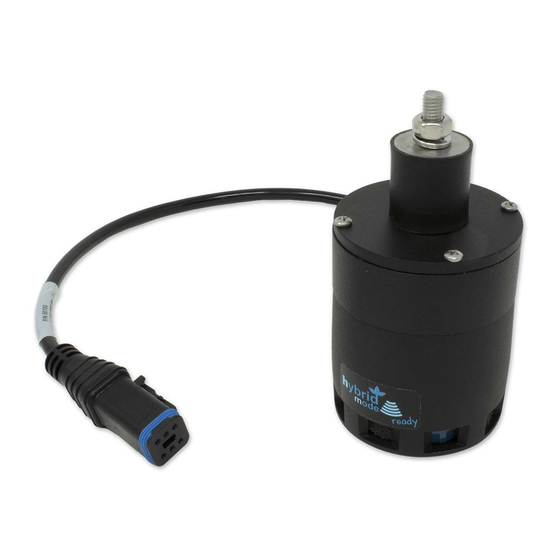

    Ultrasonic Sensor Installation Bracket Assembly Assemble the breakaway sensor bracket as illustrated in Figure 5, following the instructions below. Figure 5: Breakaway Bracket Assembly 1. Compress the spring and insert it together with the collar into the base. 2. Slide the tube through the assembled part. 3.
  • Page 15 Ultrasonic Sensor Serial Number Arrangement When installing the UC5 sensors, start with the smallest serial number on the left-hand side, and proceed to the largest serial number on the right hand side. Each UC5 sensor has a serial number stamped on the sensor housing. Apply a light coating of the supplied Permatex Anti-seize grease to all threaded parts upon installation.
  • Page 16 Ultrasonic Sensor Mounting Guidelines The following guidelines will ensure optimal sensor performance and prevent sensor measurement error. These rules should be followed for both the wing sensors and the main lift (middle) sensor. 1. In its lowest position, the sensor must be 9 inches (23 cm) or more from the ground (A). 2.
  • Page 17 Wing Sensor Installation 1. The sensor bracket should be oriented forward (ahead of the boom). 2. Typically the best mounting location for the outer wing sensor brackets will be near the end of the boom tips, approximately two feet (60cm) from the end. 3.
  • Page 18 A problem can arise if a sensor is not mounted correctly. It is possible for the sensor to read off of the boom instead of the ground. This may only become apparent once the control system is switched from soil to crop mode. Also be careful that the sensor bracket does not collide with any other part of the boom when the boom is folded to transport position.
  • Page 19 Main Lift Sensor Installation 1. There are a variety of ways to mount the main lift bracket on most sprayers. The bracket should position the sensor approximately in the center of the sprayer, forward of the boom. An example of this mounting is illustrated in Figure 11. 2.

  • Page 20: Module Installation

    (Figure 13). 3. All cables that connect to the control module are located in the electrical box. 4. Connect the cable marked “NORAC C1” to the end of the control module with only one Deutsch connector. 5. Connect the cables marked “NORAC C2” and “NORAC C3” to the control module CANbus connectors.
  • Page 21 Figure 13: Control Module and Electrical Box Location...
  • Page 22 Valve Module 1. Install the valve module (E02) to the top of the NORAC valve block. Orient the 6-pin Deutsch (CANbus) connectors towards the “P” and “T” ports with the label facing up. Output Number Normal Function Left Up Left Down...
  • Page 23 Figure 16: Valve Module Bracket Installation 5. Connect one of the valve module CANbus connectors to the existing cable labeled “NORAC” running to the rear of the sprayer from the electrical box. Route cable C03 from the other CANbus connector to the 8-way coupler (E11).

  • Page 24: Hydraulic Installation

    Component failure due to oil contamination is not covered under the NORAC UC5 system warranty. It is recommended that a qualified technician perform the hydraulic installation.
  • Page 25 Figure 18: NORAC Valve Block Details Valve Block Mounting 1. A suitable mounting location for the valve block on the Rogator is illustrated in Figure 19. 2. Insert the threaded rod into the block and use a hex nut to hold the rod. The block holes are 3/8”...
  • Page 26 Linear Roll Cylinder Assembly and Installation Before continuing, tilt both the left and right booms up to the top of their stroke to make it easier to rotate the boom. 1. Before installing the linear roll cylinder, the factory springs, dampers and rubber bumpers must be removed from the sprayer.
  • Page 27 2. In the linear roll cylinder crate is the linear roll cylinder, boom target, spring target and sensor bracket. Figure 22: Linear Roll Cylinder Assembly Figure 23: Linear Roll Cylinder Mounting Location...
  • Page 28 3. Using the supplied 1 inch bolt and two spacers, install the damper end (one port) of the linear roll cylinder onto the top mounting bracket. There must be a spacer on each side of the spherical bearing. The damper should be mounted on the back side of the mount (between the mount and boom).
  • Page 29 6. Install the spring target and align by rotating the metal casing around the linear roll cylinder. 7. Install a sensor onto the sensor mounting bracket. 8. Mount the sensor bracket to the damper end (the end with no hoses). A straight edge can be used to line up the spring target with the center of the hole on the sensor mounting bracket.
  • Page 30 5. Connect hose H04 to the tee (F02) and route to the NORAC valve block. Figure 27: Rogator Pressure and Tank Plumbing 6. Connect hose H04 to the pressure port and hose H05 to the tank port on the NORAC valve block.
  • Page 31 (H02) connects to the right tee. Route the hoses to the tilt cylinders. H03 is longer than H02 since the NORAC valve block is normally located on the right side of the sprayer. 12. Connect H02 and H03 to the cylinders using the 12FORX 6MOR fittings (F05).

  • Page 32: Connecting The Sensors To The Canbus

    Connecting the Sensors to the CANbus 1. Fasten the 8-way coupler (E11) to the boom with cable ties. Connect cable C03 from the valve module to the 8-way coupler. 2. Connect the main lift sensor to the 8-way coupler using cable C04 and a 2-way coupler (E12).

  • Page 33: Software Setup

    10 Software Setup AGCO armrest version must be 1.0.0.120302.1100 (Update 90). 1. Start up the sprayer and test the sprayer’s functionality. The display terminal does not need to be powered on for the original boom function switches to operate. Unfold the booms and raise/lower each boom and the main section.

  • Page 34: Cable Drawings

    11 Cable Drawings 11.1 ITEM C03: 43220-03 - CABLE UC5 NETWORK 14 AWG - 3M 11.2 ITEM C04: 43220-01 - CABLE UC5 NETWORK 14 AWG - 1M...
  • Page 35 11.3 ITEM C05: 43210-15 - CABLE UC5 NETWORK 18 AWG - 15M 11.4 ITEM C10: 43230-04 – CABLE UC5 VALVE DT TO DT...

  • Page 36: Start Up And System Check

    12 Start Up and System Check 12.1 Pre-Calibration Check 1. Before driving to a suitable setup and test location, verify system communication and firmware versions. Follow the steps below on the ROGATOR Management Center UC5 page to locate the firmware of all components. Turn the key switch to on to supply power to the UC5 system.
  • Page 37 2. Park the sprayer on level ground with no vegetation. Calibration must be performed with the sensors “looking at” bare ground, gravel or carpet. Hard surfaces such as concrete and asphalt are not desirable. Snow and puddled water will also cause calibration problems 3.
  • Page 38 Select the Next button (right arrow). Select the Setup button. Select Automatic Setup. Acknowledge the warning. Select the sprayer make and model from the lists. Then select the Check button. Read and acknowledge all of the precaution screens by pressing the Check button. It is very important that you read these precautions and follow them.
  • Page 39 Press and hold the Check button. Continue holding while each boom section is moved. The display will show an arrow. At this time the boom will be in motion. When it is done the display will instruct you to release the Check button. Do not move the booms at this time.
  • Page 40 The reading can be changed by selecting the reading and entering the appropriate height. 3. Using the NORAC Verification Tool to log data, perform the following: a) Save all settings. b) Step Test - Manually raise the right wing to 60 inches and lower the left wing to 20 inches.
  • Page 41 Canada NORAC Systems International Inc. Phone: (+1) 306 664 6711 Toll Free: 1 800 667 3921 Shipping Address: 3702 Kinnear Place Saskatoon, SK S7P 0A6 United States NORAC, Inc. Phone: (+1) 952 224 4142 Toll Free: 1 866 306 6722...
