- Page 1 UM10830 OM13071 LPCXpresso824-MAX Development board Rev. 1 — 29 September 2014 User manual Document information Info Content Keywords OM13071, LPC82x, development board, mbed, arduino Abstract This user manual describes the LPCXpresso824-MAX development board.
- Page 2 UM10830 NXP Semiconductors OM13071 Revision history Date Description 20140929 Initial version Contact information For more information, please visit: http://www.nxp.com For sales office addresses, please send an email to: salesaddresses@nxp.com UM10830 All information provided in this document is subject to legal disclaimers.
-
Page 3: Introduction
UM10830 NXP Semiconductors OM13071 1. Introduction The LPCXpresso-MAX family of boards provides a powerful and flexible development system for NXP's low end Cortex-M0+ MCUs. They can be used with a range of development tools, including the LPCXpresso IDE, in addition to ARM's mbed online toolchain. -
Page 4: Board Layout

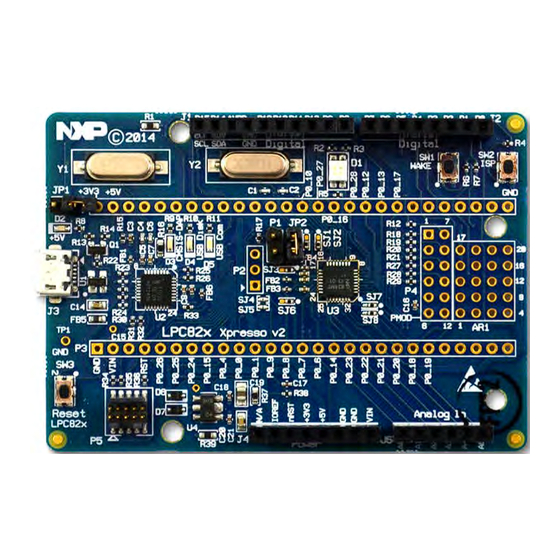

UM10830 NXP Semiconductors OM13071 • Prototyping area. • Powering options from multiple sources. • Options to allow measurement of current consumed by target MCU. 2. Board layout The LPCXpresso824-MAX development board layout is shown in Fig 2. Fig 2. LPCXpresso824-MAX development board layout UM10830 All information provided in this document is subject to legal disclaimers. -
Page 5: Jumper Settings
UM10830 NXP Semiconductors OM13071 2.1 Jumper settings Jumpers on the LPCXpresso824-MAX board can be used to configure debug probe selection (on-board vs off-board) or to measure power consumption as described in sections 2.1.1 2.1.2. 2.1.1 JP1: on-board/off-board debug When this jumper is open (default), the on-board debug probe (LPC11U35 device) is used as the debug interface. -
Page 6: Reset
UM10830 NXP Semiconductors OM13071 2.2.1 Reset This button is normally used to reset the LPC824. Holding down this button when the board is powered-up also prevents the LPC11U35 from booting. See section 2.1.1. 2.2.2 ISP The ISP button connects to the LPC824 PIO_12 pin and can be used to force the LPC824 into ISP boot mode. -
Page 7: Arduino Uno Headers
UM10830 NXP Semiconductors OM13071 See the board schematics, available at http://www.lpcware.com/lpcxpresso-max-boards, for more information. 3.1 Arduino UNO headers Arduino is a popular hobbyist platform, with a standardized set of expansion connectors. The Arduino connectors on the LPCXpresso824-MAX board are compatible with the “Arduino UNO”... -
Page 8: Debugging With An External Debug Probe
UM10830 NXP Semiconductors OM13071 If running on Windows, you will need to install the mbed Windows serial port driver so that the LPCXpresso824-MAX board’s CMSIS-DAP debug link is visible to LPCXpresso. Download the drivers from: http://mbed.org/handbook/Windows-serial-configuration#1-download-the-mbed-windows- serial-port 4.1.2 Debugging with an external debug probe JP1 should be closed (jumper fitted) to use the board with an external debug probe. -
Page 9: Board Specifications
UM10830 NXP Semiconductors OM13071 3. The board will appear on your system as a disk called CRP DISABLD. 4. Delete the file called firmware.bin on this disk. 5. Drag and drop the new binary image to be programmed onto this disk. -
