UM10726
User manual for the PCA8538 evaluation board OM13501A
Rev. 2 — 18 July 2013
Document information
Info
Content
Keywords
LCD driver, segment driver, COG, Chip-On-Glass, PCA8538, Vertical
Alignment (VA)
Abstract
This evaluation board can be used to demonstrate and evaluate the
PCA8538 segment driver. This is a chip-on-glass LCD driver which can
drive up to 918 segments in MUX 1:9. The board contains only the
display module, some decoupling capacitors and some jumpers. The
jumpers can be used for interface selection (I
been provided as well, which makes it easy to connect the board to any
microcontroller and power supply, and start developing an application.
User manual
2
C or SPI). A pin strip has

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UM10726 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NXP Semiconductors UM10726

  • Page 1 UM10726 User manual for the PCA8538 evaluation board OM13501A Rev. 2 — 18 July 2013 User manual Document information Info Content Keywords LCD driver, segment driver, COG, Chip-On-Glass, PCA8538, Vertical Alignment (VA) Abstract This evaluation board can be used to demonstrate and evaluate the PCA8538 segment driver.
  • Page 2 UM10726 NXP Semiconductors User manual PCA8538 evaluation board Revision history Date Description 20130718 revision Type number of board corrected, from OM13502 to OM13501A 20130702 First version Contact information For more information, please visit: http://www.nxp.com For sales office addresses, please send an email to: salesaddresses@nxp.com...
  • Page 3: Introduction

    UM10726 NXP Semiconductors User manual PCA8538 evaluation board 1. Introduction This user manual describes the PCA8538 evaluation board. The board contains a COG display module, some decoupling capacitors for the power supply and some jumpers to configure the display driver.
  • Page 4: Board Description And Layout

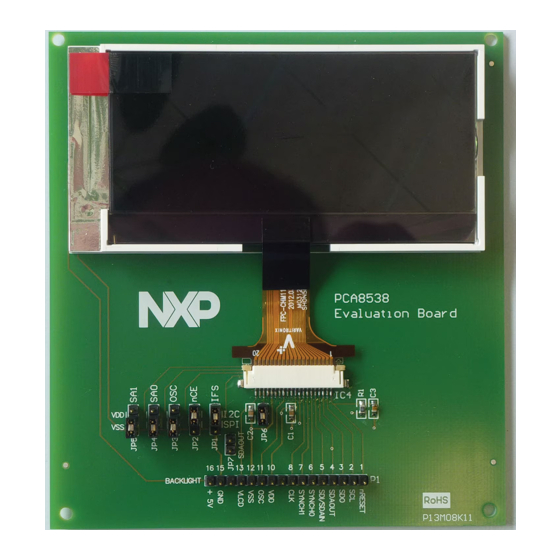

    UM10726 NXP Semiconductors User manual PCA8538 evaluation board 2. Board description and layout Fig 1 shows a picture of the board. Fig 1. PCA8538 evaluation board For best optical performance, remove the protective foil from the display. The jumpers are visible on the left, the pins for connecting the module are at the bottom of the board.
  • Page 5: Jumper Settings

    UM10726 NXP Semiconductors User manual PCA8538 evaluation board can either be generated by the internal charge pump or it can be supplied with a second supply voltage (pin 13 of connector P1). In that case the internal charge pump must be disabled. Jumper JP6 should be removed when using an external V supply voltage.
  • Page 6 UM10726 NXP Semiconductors User manual PCA8538 evaluation board Table 2. Jumpers for oscillator and V selection Jumpers settings JP3, OSC , internal oscillator , external oscillator JP6, V placed, internal V removed, external V If pin OSC is tied to V , CLK is the output pin of the internal oscillator.
  • Page 7: Software Code Example

    UM10726 NXP Semiconductors User manual PCA8538 evaluation board 4. Software code example Section 8 of the PCA8538 data sheet contains all the commands and their description. In order to write software for this driver, it will be necessary to read the datasheet.
