UM10935
PN7150 NFC Controller SBC Kit User Manual
Rev. 1.5 — 10 July 2019
348015
Document information
Info
Content
Keywords
OM5578, PN7150, Demo kit, Raspberry Pi, BeagleBone, Arduino
Abstract
This document is the user manual of the PN7150 NFC Controller SBC kit.
User manual
COMPANY PUBLIC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OM5578/PN7150S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NXP Semiconductors OM5578/PN7150S

Summary of Contents for NXP Semiconductors OM5578/PN7150S

  • Page 1 UM10935 PN7150 NFC Controller SBC Kit User Manual Rev. 1.5 — 10 July 2019 User manual 348015 COMPANY PUBLIC Document information Info Content Keywords OM5578, PN7150, Demo kit, Raspberry Pi, BeagleBone, Arduino Abstract This document is the user manual of the PN7150 NFC Controller SBC kit. Arrow.com.
  • Page 2 UM10935 NXP Semiconductors PN7150 NFC Controller SBC Kit User Manual Revision history Date Description 201907210 Aligned settings configuration across documentation 20170302 Updated schematics with final components values Removed weblinks redirection 20170104 Added errata about first demo kits limitation Added CE certification details...

  • Page 3: Introduction

    PN7150 NFC Controller SBC Kit User Manual 1. Introduction The present document describes the OM5578/PN7150S demonstration kit, a flexible and easy-to-use Single Board Computer (SBC) Kit for the PN7150 NFC Controller. It enables the development of an NFC solution based on PN7150 in a Linux, Android or Windows for IoT environment or even in system based on RTOS or without OS.

  • Page 4: Overview

    UM10935 NXP Semiconductors PN7150 NFC Controller SBC Kit User Manual 2. Overview 2.1 Kits description All 3 OM5578 kits contains a PN7150 NFC Controller Board, a dedicated interface board, as well as an NFC Sample Card in form of an NFC Forum Type 2 Tag.

  • Page 5: Pn7150 Nfc Controller Board

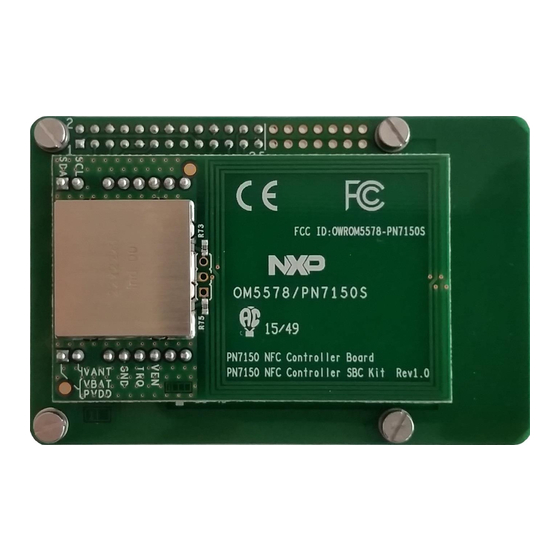

    OM29110 Interface boards (see [6]). RF Antenna PN7150 Connectors to interface boards Fig 4. OM5578/PN7150S PN7150 NFC Controller Board UM10935 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2019. All rights reserved. User manual Rev.

  • Page 6: Om29110 Interface Boards

    UM10935 NXP Semiconductors PN7150 NFC Controller SBC Kit User Manual 2.3 OM29110 Interface Boards The OM29110 Interface Boards offer support for connection to Raspberry Pi, BeagleBone or Arduino Compatible Interface platforms (refer to [6] for more details). Fig 5. OM29110RPI Raspberry Pi Interface Board Fig 6.

  • Page 7: Nfc Sample Card

    OM29110ARD Arduino Interface Board 2.4 NFC Sample Card OM5578/PN7150S kit includes a NFC Sample Card, based on NTAG216 tag IC, allowing to demonstrate NFC reader capabilities of PN7150 NFC Controller. For the current purpose of PN7150 NFC Controller demonstration, the card has been pre-configured with NDEF URI type message “http://www.nxp.com/demoboard/OM5578”.

  • Page 8: Pn7150 Nfc Controller Board Details

    UM10935 NXP Semiconductors PN7150 NFC Controller SBC Kit User Manual 3. PN7150 NFC Controller Board details 3.1 Schematics Fig 9. PN7150 NFC Controller Board schematics UM10935 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2019. All rights reserved.

  • Page 9: Layout

    UM10935 NXP Semiconductors PN7150 NFC Controller SBC Kit User Manual 3.2 Layout 3.2.1 Components layers Fig 10. PN7150 NFC Controller Board Top components layers Fig 11. PN7150 NFC Controller Board Bottom components layers UM10935 All information provided in this document is subject to legal disclaimers.

  • Page 10: Layer 1

    UM10935 NXP Semiconductors PN7150 NFC Controller SBC Kit User Manual 3.2.2 Layer 1 Fig 12. PN7150 NFC Controller Board Layer 1 3.2.3 Layer 2 Fig 13. PN7150 NFC Controller Board Layer 2 UM10935 All information provided in this document is subject to legal disclaimers.

  • Page 11: Layer 3

    UM10935 NXP Semiconductors PN7150 NFC Controller SBC Kit User Manual 3.2.4 Layer 3 Fig 14. PN7150 NFC Controller Board Layer 3 3.2.5 Layer 4 Fig 15. PN7150 NFC Controller Board Layer 4 UM10935 All information provided in this document is subject to legal disclaimers.

  • Page 12: Top Silkscreen Layer

    UM10935 NXP Semiconductors PN7150 NFC Controller SBC Kit User Manual 3.2.6 Top Silkscreen layer Fig 16. PN7150 NFC Controller Board Top silkscreen layer UM10935 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2019. All rights reserved.

  • Page 13: Pn7150 Nfc Controller Board Performances

    UM10935 NXP Semiconductors PN7150 NFC Controller SBC Kit User Manual 4. PN7150 NFC Controller Board performances 4.1 Settings configuration Following performance results are obtained applying dedicated configuration to PN7150 optimized for OM5578 characteristics. Those are: Table 1. RF settings Transition...
  • Page 14 UM10935 NXP Semiconductors PN7150 NFC Controller SBC Kit User Manual Table 4. Reader/Writer mode performance Card type Communication distance (mm) ISO 15693 UPM RaceTrack NFC Sample Card (NTAG216 – ID1) NFC Sticker (NTAG216 – 40x40) Topaz (35mm Round) Type B (ID1) Felica (ID1) Table 5.

  • Page 15: Additional Information

    5. Additional information 5.1 Using different Antenna The OM5578/PN7150S kit provide a flexible way of connecting an external RF antenna to be used in place of the on-board one. On the PN7150 NFC Controller Board, the dedicated 3 pins connector referenced as TB1 allows to connect your own antenna.

  • Page 16: Using Different Tvdd Supply Option

    PN7150 NFC Controller SBC Kit User Manual 5.2 Using different TVDD supply option The OM5578/PN7150S kit comes with Configuration 2: external 5V used to generate TVDD (refer to “AN11756 – PN7150 Hardware Design Guide” for more details). The 5V being provided by the underlayer SBC platform via the VANT pin of connector TB2.

  • Page 17: Using Different I2C Address

    PN7150 NFC Controller SBC Kit User Manual 5.3 Using different I2C address The OM5578/PN7150S kit comes with default 0x28 (7 bits) I2C address. However, it is still possible to change it (between 0x28 and 0x2B) by setting of R6, R23, R24 and R32 resistors.

  • Page 18: Using In Another System

    PN7150 NFC Controller SBC Kit User Manual 5.4 Using in another system The OM5578/PN7150S demonstration kit can be reuse in another system (different from Raspberry Pi or BeagleBone, and not offering Arduino Compatible interface). Indeed, the PN7150 NFC Controller Board provides all required signal on TB2 and TB3 (signals are duplicated on both connectors) connectors to interface boards.
  • Page 19 UM10935 NXP Semiconductors PN7150 NFC Controller SBC Kit User Manual Table 10. PN7150 NFC Controller Board TB3 connector pinout PN7150 signal I2CSDA: I2C-bus serial data I2CSCL: I2C-bus serial clock input Not connected Not connected Not connected Not connected Not connected...

  • Page 20: Product Certification

    UM10935 NXP Semiconductors PN7150 NFC Controller SBC Kit User Manual 6. Product certification Only the default configuration of the product is considered in below certification statements. Ohers configurations, described in chapter 5, are excluded. 6.1 European Conformity The PN7150 NFC Controller Board (see chapter 2.2) meets applicable tests and...

  • Page 21: Installation Instructions

    UM10935 NXP Semiconductors PN7150 NFC Controller SBC Kit User Manual 6.2.2 Installation instructions PN7150 NFC Controller board can be reused as a module for integration into end devices following below instruction/restrictions: • The module is limited to OEM installation ONLY •...

  • Page 22: References

    UM10935 NXP Semiconductors PN7150 NFC Controller SBC Kit User Manual 7. References The Raspberry Pi is a low cost, credit-card sized computer that plugs into a computer monitor or TV, and uses a standard keyboard and mouse. It is a capable little device that enables people of all ages to explore computing, and to learn how to program in languages like Scratch and Python.
  • Page 23 UM10935 NXP Semiconductors PN7150 NFC Controller SBC Kit User Manual More details in the related UM10956 - OM29110 NFC's SBC Interface Boards User Manual: http://www.nxp.com/documents/user_manual/UM10956.pdf UM10936 - PN7150 User Manual AN11755 - PN7150 Antenna Design and Matching Guide UM10935 All information provided in this document is subject to legal disclaimers.

  • Page 24: Legal Information

    NXP Semiconductors makes no representation or warranty that such applications will be suitable for the Purchase of an NXP Semiconductors IC that complies with one of the Near specified use without further testing or modification.

  • Page 25: Table Of Contents

    UM10935 NXP Semiconductors PN7150 NFC Controller SBC Kit User Manual 9. Contents Trademarks ............24 Introduction ............3 Contents ............. 25 Overview .............. 4 Kits description ........... 4 PN7150 NFC Controller Board ......5 OM29110 Interface Boards ........ 6 NFC Sample Card ..........7 PN7150 NFC Controller Board details ....
