- Page 2 UM11055 NXP USB PD shield board user manual Rev. 1.0 — 9 February 2018 User manual Document information Information Content Keywords OM13588, USB Type-C, PD (power delivery), Alt-mode-DP, Host, Dock Abstract This user manual presents demonstration / application kit capability of power, data delivery through single USB Type-C cable between a shield board used in conjunction with a Kinetis KL27Z FRDM Board and a USB-PD capable device or Power source.
- Page 3 UM11055 NXP Semiconductors NXP USB PD shield board user manual Revision history Revision history Date Description v.1.0 20180209 Added note to section 3.1 v.0.3 20170619 Minor corrections to text v.0.2 20170608 Updated document information keywords v.0.1 20170501 Initial version UM11055 All information provided in this document is subject to legal disclaimers.
-
Page 4: Introduction
UM11055 NXP Semiconductors NXP USB PD shield board user manual Introduction The main purpose of this user’s manual is to illustrate USB-PD operation for a Type C port using PTN5110 PD PHY and KL27 PD controller. PTN5110 is a 1-port TCPC compliant USB Power Delivery (PD) PHY IC that implements Type-C Configuration channel interface and USB PD Physical layer functions to a Type- C Port Manager that handles PD Policy management. -
Page 5: General Description
UM11055 NXP Semiconductors NXP USB PD shield board user manual General description 2.1 Block diagram 2.1.1 USB-PD shield board schematic block diagram USB 3.0 A 9V Power Jack Receptacle 3.3V 1.8V Regulator Regulator Regulator NX5P3290 ARDUINO ARDUINO HEADERS I2C, INT, CROSS... -
Page 6: Usb Pd Shield Board

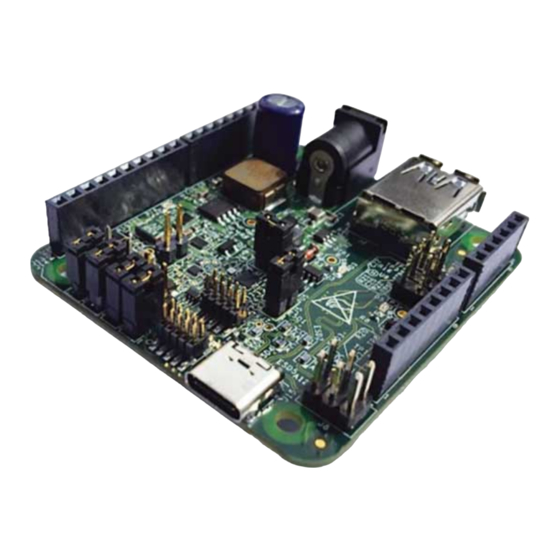

UM11055 NXP Semiconductors NXP USB PD shield board user manual 2.1.2 USB PD shield board Figure 2. USB PD shield board 2.2 Shield board description Please refer to Figure 1 Figure 2 above for the actual shield board block diagram and image. It consists of 4 Arduino headers, 2 on either side of the board. J403, J404 on the left and J405, J9 on the right side. -
Page 7: Hardware Setup
UM11055 NXP Semiconductors NXP USB PD shield board user manual Hardware setup 3.1 Hardware setup for USB-PD In order to set up the board for USB-PD operation please follow the below jumper settings on the board. 1. Install shunt at J4 2. -
Page 8: Hardware Setup For Cc Logic Operation
UM11055 NXP Semiconductors NXP USB PD shield board user manual There is a USB Type A port on the shield board to demonstrate high speed USB operation. The Type A port is connected to the Type C port through PTN36043, USB3.1 Gen 1 redriver. -
Page 9: Usb-Pd Shield Boards - Errata List
UM11055 NXP Semiconductors NXP USB PD shield board user manual USB-PD shield boards - errata list 4.1 Errata list Table 1. Errata list Errata list Demo system impact Solution None UM11055 All information provided in this document is subject to legal disclaimers. -
Page 10: Legal Information
Customer is responsible for doing all necessary testing for the customer’s applications and products using NXP Semiconductors products in order to avoid a default of the applications and the products or of the application or use by 5.2 Disclaimers... - Page 11 UM11055 NXP Semiconductors NXP USB PD shield board user manual Tables Tab. 1. Errata list ............8 UM11055 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2018. All rights reserved. User manual Rev. 1.0 — 9 February 2018...
- Page 12 UM11055 NXP Semiconductors NXP USB PD shield board user manual Figures Fig. 1. USB PD shield board block diagram ....4 Fig. 2. USB PD shield board ........5 UM11055 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2018. All rights reserved.
-
Page 13: Table Of Contents
UM11055 NXP Semiconductors NXP USB PD shield board user manual Contents Introduction ............3 Purposes ............3 General description ..........4 Block diagram ............4 2.1.1 USB-PD shield board schematic block diagram .............. 4 2.1.2 USB PD shield board ........5 Shield board description ........5 Hardware setup ...........
