UM10878
PN7120 NFC controller SBC kit user manual
Rev. 1.5 — 9 February 2021
318515
Document information
Information
Content
Keywords
OM5577, PN7120, demo kit, Raspberry Pi, BeagleBone
Abstract
This document is the user manual of the PN7120 NFC controller SBC kit.
User manual
COMPANY PUBLIC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OM5577 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NXP Semiconductors OM5577

Summary of Contents for NXP Semiconductors OM5577

  • Page 1 PN7120 NFC controller SBC kit user manual Rev. 1.5 — 9 February 2021 User manual 318515 COMPANY PUBLIC Document information Information Content Keywords OM5577, PN7120, demo kit, Raspberry Pi, BeagleBone Abstract This document is the user manual of the PN7120 NFC controller SBC kit.

  • Page 2: Revision History

    UM10878 NXP Semiconductors PN7120 NFC controller SBC kit user manual Revision history Revision history Date Description 20210209 Removed Windows IoT support 20170104 Added CE certification details 20160707 Added demo kit performance details 20160503 FCC statement updated 20151007 • FCC statement added •...

  • Page 3: Introduction

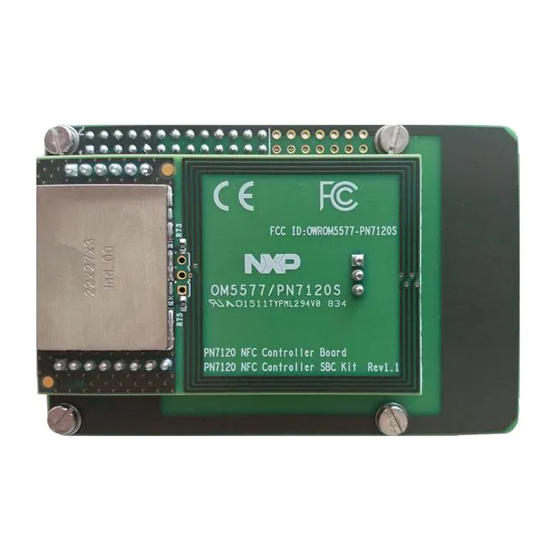

    PN7120 NFC controller SBC kit user manual Introduction The present document describes the OM5577/PN7120S demonstration kit, a flexible and easy-to-use Single Board Computer (SBC) Kit for the PN7120 NFC controller. It contains a PN7120 NFC controller board, a Raspberry Pi interface board, a BeagleBone interface board, as well as an NFC Forum Type 2 Tag in a form of a MIFARE Ultralight card.

  • Page 4: Overview

    NXP Semiconductors PN7120 NFC controller SBC kit user manual Overview 3.1 Kit description OM5577/PN7120S kit is a high performance fully NFC-compliant expansion board for both Raspberry Pi (refer to for more details) and BeagleBone (refer to for more details). It meets compliance with reader mode, P2P mode and Card emulation mode standards.

  • Page 5: Pn7120 Nfc Controller Board

    UM10878 NXP Semiconductors PN7120 NFC controller SBC kit user manual 3.2.1 PN7120 NFC controller board The PN7120 NFC controller board is the main board of the demonstration kit. It embeds the PN7120 and all related circuitry. It also includes an onboard RF antenna with related matching circuitry.

  • Page 6: Beaglebone Interface Board

    UM10878 NXP Semiconductors PN7120 NFC controller SBC kit user manual 3.2.2 BeagleBone interface board The BeagleBone interface board offers support for connection to BeagleBone board (refer to for more details). As such it integrates the connectors allowing the PN7120 NFC controller board to be plugged on it, as well as connectors to be assembled on top of the BeagleBone board.

  • Page 7: Raspberry Pi Interface Board

    UM10878 NXP Semiconductors PN7120 NFC controller SBC kit user manual 3.2.3 Raspberry Pi interface board The Raspberry Pi interface board offers support for connection to Raspberry Pi board (refer to for more details). As such it integrates the connectors allowing the PN7120 NFC controller board to be plugged on it, as well as connector to be assembled on top of the Raspberry Pi board.

  • Page 8: Mifare Ultralight Ev1 Card

    PN7120 NFC controller SBC kit user manual 3.2.4 MIFARE Ultralight EV1 card OM5577/PN7120S kit includes a MIFARE Ultralight EV1 card allowing to demonstrate NFC reader capabilities of PN7120 NFC controller. MIFARE Ultralight EV1 is the next generation of paper ticketing smart card IC for limited- use applications.

  • Page 9: Details

    UM10878 NXP Semiconductors PN7120 NFC controller SBC kit user manual Details 4.1 PN7120 NFC controller board 4.1.1 Schematics Notes: - C8 capacitor (on PN7120 pin D7) has been identified useless - R53/R54 resistors have been identified useless Figure 6. PN7120 NFC controller board schematics UM10878 All information provided in this document is subject to legal disclaimers.

  • Page 10: Layout

    UM10878 NXP Semiconductors PN7120 NFC controller SBC kit user manual 4.1.2 Layout 4.1.2.1 Components layers Figure 7. PN7120 NFC controller board top components layers Figure 8. PN7120 NFC controller board bottom components layers UM10878 All information provided in this document is subject to legal disclaimers.

  • Page 11: Layer 1

    UM10878 NXP Semiconductors PN7120 NFC controller SBC kit user manual 4.1.2.2 Layer 1 Figure 9. PN7120 NFC controller board layer 1 4.1.2.3 Layer 2 Figure 10. PN7120 NFC controller board layer 2 4.1.2.4 Top silkscreen layer Figure 11. PN7120 NFC controller board top silkscreen layer UM10878 All information provided in this document is subject to legal disclaimers.

  • Page 12: Beaglebone Interface Board

    UM10878 NXP Semiconductors PN7120 NFC controller SBC kit user manual 4.2 BeagleBone interface board 4.2.1 Schematics Figure 12. BeagleBone Interface Board schematics 4.2.2 Layout 4.2.2.1 Components layers Figure 13. BeagleBone interface board top components layers UM10878 All information provided in this document is subject to legal disclaimers.

  • Page 13: Layers 1 And 2

    UM10878 NXP Semiconductors PN7120 NFC controller SBC kit user manual Figure 14. BeagleBone interface board bottom components layers 4.2.2.2 Layers 1 and 2 Figure 15. BeagleBone interface board layers 1 and 2 UM10878 All information provided in this document is subject to legal disclaimers.

  • Page 14: Layer 3

    UM10878 NXP Semiconductors PN7120 NFC controller SBC kit user manual 4.2.2.3 Layer 3 Figure 16. BeagleBone interface board layer 3 4.2.2.4 Layer 4 Figure 17. BeagleBone interface board layer 4 UM10878 All information provided in this document is subject to legal disclaimers.

  • Page 15: Top Silkscreen Layer

    UM10878 NXP Semiconductors PN7120 NFC controller SBC kit user manual 4.2.2.5 Top silkscreen layer Figure 18. BeagleBone interface board top silkscreen layer 4.3 Raspberry Pi interface board 4.3.1 Schematics Figure 19. Raspberry Pi interface board schematics UM10878 All information provided in this document is subject to legal disclaimers.

  • Page 16: Layout

    UM10878 NXP Semiconductors PN7120 NFC controller SBC kit user manual 4.3.2 Layout 4.3.2.1 Components layers Figure 20. Raspberry Pi interface board top components layers Figure 21. Raspberry Pi Interface board bottom components layers UM10878 All information provided in this document is subject to legal disclaimers.

  • Page 17: Layers 1 And 2

    UM10878 NXP Semiconductors PN7120 NFC controller SBC kit user manual 4.3.2.2 Layers 1 and 2 Figure 22. Raspberry Pi interface board layers 1 and 2 4.3.2.3 Layer 3 Figure 23. Raspberry Pi interface board layer 3 4.3.2.4 Layer 4 Figure 24. Raspberry Pi interface board layer 4 UM10878 All information provided in this document is subject to legal disclaimers.

  • Page 18: Top Silkscreen Layer

    UM10878 NXP Semiconductors PN7120 NFC controller SBC kit user manual 4.3.2.5 Top silkscreen layer Figure 25. Raspberry Pi interface board top silkscreen layer UM10878 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2021. All rights reserved.

  • Page 19: Pn7120 Nfc Controller Board Performances

    UM10878 NXP Semiconductors PN7120 NFC controller SBC kit user manual PN7120 NFC controller board performances Following RF performance results are obtained running the demo kit: Table 1. Power transfer (Poll mode) Measured with EMVCo reference PICC @ 0 cm @ 1 cm...

  • Page 20: Additional Information

    Additional information 6.1 Using different antenna The OM5577/PN7120S kit provides a flexible way of connecting an external RF antenna to be used in place of the onboard one. On the PN7120 NFC controller board, the dedicated 3 pins connector referenced as TB1 allows connecting your own antenna.
  • Page 21 UM10878 NXP Semiconductors PN7120 NFC controller SBC kit user manual Indeed, the PN7120 NFC controller board provides all required signal on TB2 and TB3 (signals are duplicated on both connectors) connectors to interface boards. Figure 27. PN7120 NFC controller board interface connectors Table 6. PN7120 NFC controller board TB2 connector pinout...

  • Page 22: Product Certification

    UM10878 NXP Semiconductors PN7120 NFC controller SBC kit user manual Product certification Only the default configuration of the product is considered in below certification statements. Other configurations, described in Section 6, are excluded. 7.1 European Conformity The PN7120 NFC controller board (see Section 3.2.1) meets applicable tests and...

  • Page 23: Installation Instructions

    UM10878 NXP Semiconductors PN7120 NFC controller SBC kit user manual Figure 28. FCC accreditation 7.2.2 Installation instructions PN7120 NFC controller board can then be reused as a module for integration into end devices following below instruction/restrictions: • The module is limited to OEM installation ONLY •...
  • Page 24 UM10878 NXP Semiconductors PN7120 NFC controller SBC kit user manual Note: The grantee is not responsible for any changes or modifications not expressly approved by the third party responsible for compliance. Such modifications could void the user’s authority to operate the equipment.

  • Page 25: References

    UM10878 NXP Semiconductors PN7120 NFC controller SBC kit user manual References The Raspberry Pi is a credit card sized computer. The initial idea behind it was to develop a small and cheap computer to be used by kids all over the world to learn programming.

  • Page 26: Legal Information

    Purchase of NXP ICs with NFC technology products using NXP Semiconductors products, and NXP Semiconductors Purchase of an NXP Semiconductors IC that complies with one of the accepts no liability for any assistance with applications or customer product Near Field Communication (NFC) standards ISO/IEC 18092 and ISO/ design.
  • Page 27 UM10878 NXP Semiconductors PN7120 NFC controller SBC kit user manual MIFARE Ultralight — is a trademark of NXP B.V. FeliCa — is a trademark of Sony Corporation. NXP — wordmark and logo are trademarks of NXP B.V. UM10878 All information provided in this document is subject to legal disclaimers.
  • Page 28 UM10878 NXP Semiconductors PN7120 NFC controller SBC kit user manual Tables Tab. 1. Power transfer (Poll mode) ......19 Tab. 6. PN7120 NFC controller board TB2 Tab. 2. Reader/Writer mode performance ....19 connector pinout ..........21 Tab. 3. Peer to Peer mode performances ....19 Tab.
  • Page 29 UM10878 NXP Semiconductors PN7120 NFC controller SBC kit user manual Figures Fig. 1. PN7120NFC controller SBC kit content .....4 Fig. 16. BeagleBone interface board layer 3 ....14 Fig. 2. PN7120 NFC Controller Board ......5 Fig. 17. BeagleBone interface board layer 4 ....14 Fig.

  • Page 30: Table Of Contents

    UM10878 NXP Semiconductors PN7120 NFC controller SBC kit user manual Contents Revision history ..........2 Introduction ............3 Overview .............. 4 Kit description ............ 4 Kit content ............4 3.2.1 PN7120 NFC controller board ......5 3.2.2 BeagleBone interface board ......6 3.2.3...
