Operating the system

The system is operated by the remote control unit (O2000) and by the mouse (O5000
Trackball unit).
The remote controller is used for menu operation, and for easy operation of the quick access
buttons.
The mouse is mainly used for managing targets, and in situations where it is required to
position the cursor accurately on the PPI.
For a full overview of remote controller and mouse keys, refer to "O2000/O5000 Trackball, key function
comparison" on page 69.

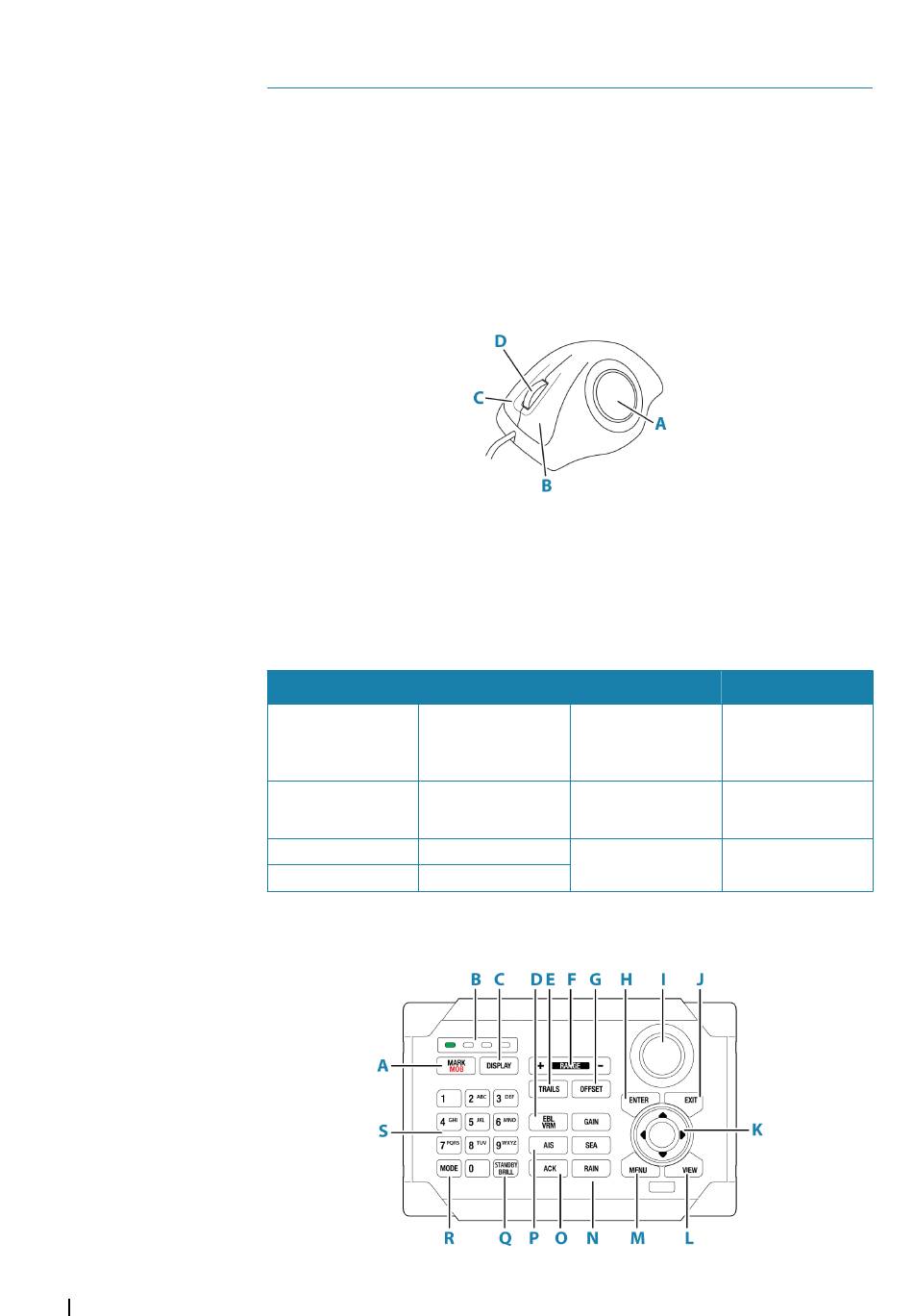

O5000 trackball mouse keys

The optical trackball (A) is used for positioning the cursor. The other mouse keys have
different functionality depending on the position of the cursor on the radar panel.
The following table lists the key functions relative to the part of the radar panel that is under
the cursor.
Ú Note:
The cursor must be located over an open menu or over the quick access pop-up
to be able to use the scroll function.
Cursor over ... Left key (B)
Menu Select
Quick access button Select
AIS target Activate/deactivate
Radar target Acquire target

O2000 front controls

Operating the system | R5000 Operator manual
Right key (C) Scroll wheel (D)
• Rotate to scroll
Return to previous
menu options
menu level
• Press to select
• Rotate to scroll
Display selected
pop-up options
button's pop-up
Display target menu No action
