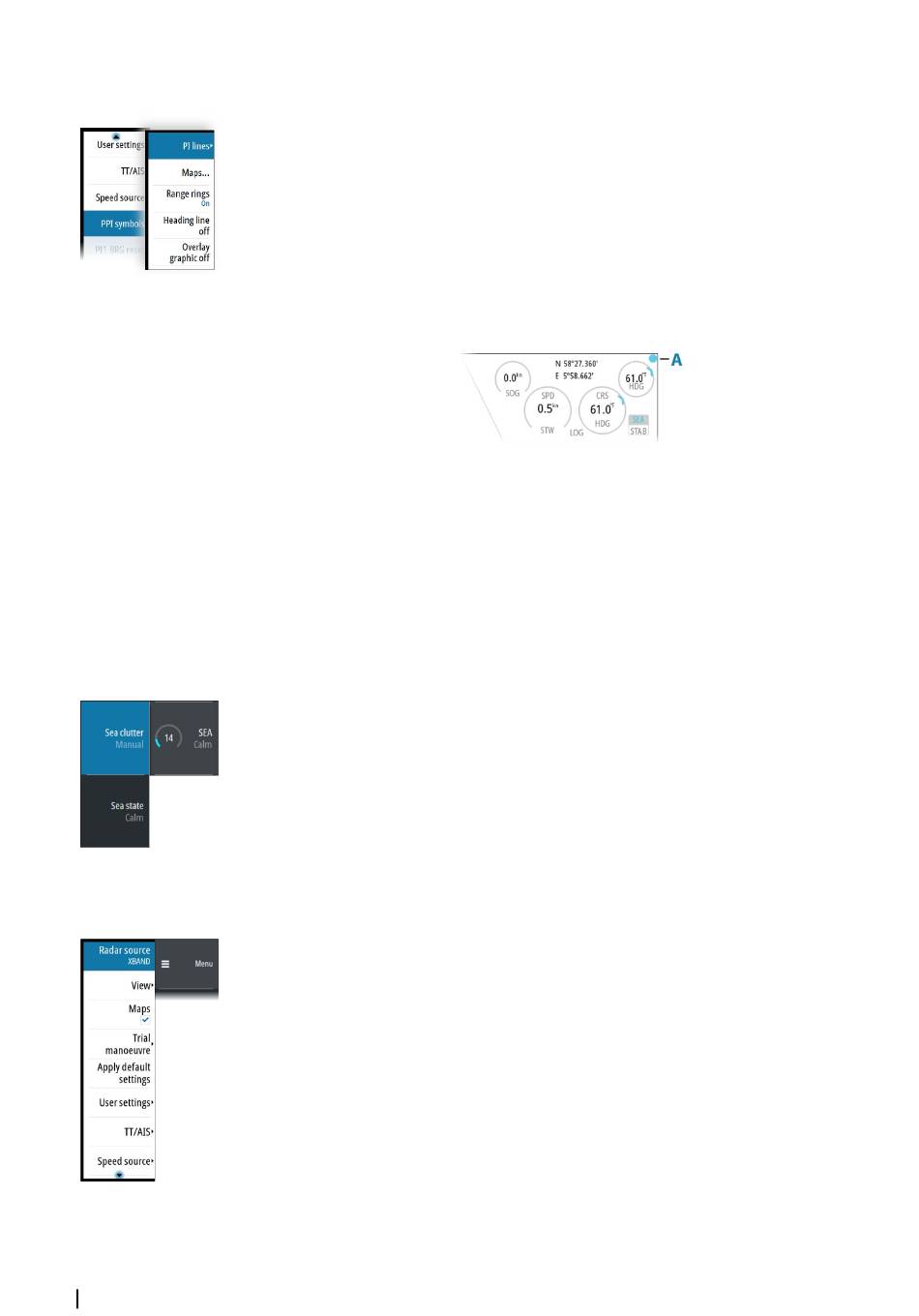

PPI symbols

Range rings and heading line symbols can be turned on and off individually.
For parallel index lines and maps, see "Parallel index lines" on page 45 and "Maps" on page 50.
The overlay graphic off menu option turns off all graphics overlaid on the radar PPI, showing
only the video signal.
Ú Note:
The heading line off and overlay graphic off menu options are mono stable. That
means you have to press and hold the enter key or the right arrow key to temporarily
remove the relevant symbols from the panel. The graphics are invisible as long as the key
is pressed, and will turn on again when the key is released.

Picture freeze indicator

The image includes a picture freeze indicator (A). The small dot blinks at an interval of 1
second to show that the screen is alive and that information from sensors is updated.
If the picture freezes the unit needs to be restarted.

Quick access buttons

The quick access buttons are activated from the dedicated keys on the controller, or by using
the mouse to select the button.
More details about the quick access buttons are available in the separate sections describing
the functions later in this manual.
Quick access pop-ups
Some of the quick access buttons have additional functions, presented as a pop-up.
To display the pop-up:
• Double-press the dedicated key on the controller
• Press the right mouse key when the cursor is over a selected quick access button
To remove the pop-up and revert to the button's main function:
• Press the exit key on O2000
• Press the left mouse key when the cursor is outside the pop-up
• Press the right mouse key when the cursor is over the pop-up

Main menu and submenus

You access the main menu by pressing the menu key, or by selecting the quick access menu
button.
To operate the menu with the O2000:
• Press the up and down arrow keys or turn the rotary knob to move up and down in a
menu
• Press the enter key, the right arrow key or the rotary knob to access a submenu, to toggle
options or to confirm a selection
• Press the exit key or the left arrow key to return to previous menu level and then exit the
menu system
Some options display a slider. Turn the rotary knob or press the up/down arrow keys to
adjust the value.
To use the trackball mouse to operate the menu:
• Use the scroll wheel to move up and down in a menu
• Use the left key to access a submenu, to toggle options or to confirm a selection
