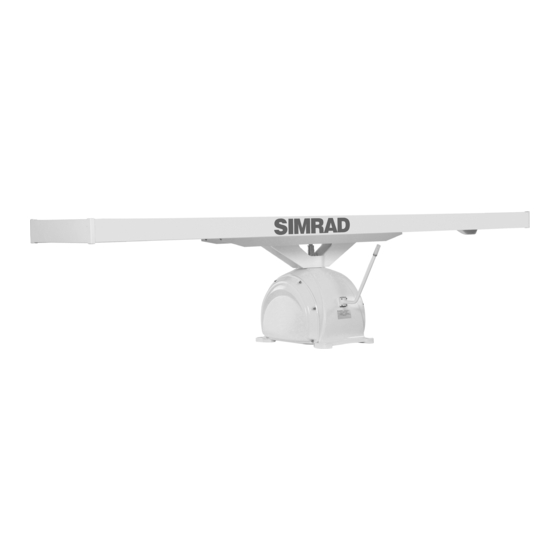

Simrad R5000 Installation Manual
Srt lan radar sensor x-band up-mast
Hide thumbs
Also See for R5000:
- Operator's manual (82 pages) ,
- Commissioning manual (49 pages) ,
- Installation manual (27 pages)
Subscribe to Our Youtube Channel
Related Manuals for Simrad R5000
Summary of Contents for Simrad R5000
- Page 1 SRT LAN Radar sensor X-band up-mast Installation Manual ENGLISH www.navico-commercial.com...
- Page 3 Navico® is a trademark of Navico Holding AS. • SIMRAD® is a trademark of Kongsberg Maritime AS, Licensed to Navico Holding AS. Warranty The warranty card is supplied as a separate document. In case of any queries, refer to the brand website of your unit or system: www.navico-commercial.com...
- Page 4 Only reading these operating instructions cannot replace such training. Persons authorized to operate, maintain and troubleshoot the system are instructed and trained by Simrad. Persons operating or servicing this radar system must be familiar with the general safety regulations and specific safety systems, and they must have passed all required training.
- Page 5 Ú Note: Main power is always present on the terminal board unless the main break from the power distribution panel of the vessel is turned off. Warning: Never look down a waveguide from which power is being radiated! Warnings High voltage Radar equipment includes high voltage that can cause injury or loss of life.
-
Page 6: Table Of Contents
Contents Parts included R5000 X-band up-mast SRT LAN radar sensor Installation Installation guidelines Interference Obstructions and blind sectors Radar antenna height implications Mounting 13 Wiring System example General wiring guidelines SRT LAN up-mast transceiver overview Grounding the SRT LAN transceiver... -
Page 7: Parts Included
Parts included R5000 X-band up-mast SRT LAN radar sensor Radar antenna (6 feet, 9 feet or 12 feet) and SRT LAN up-mast transceiver Radar performance monitor arm kit Ethernet cable Power cable Parts included | SRT LAN Radar sensor X-band up-mast... -
Page 8: Installation
Installation Installation guidelines The information provided by radar is of vital importance to skippers and the safe navigation of ships. Special care should be taken to ensure correct installation of the radar, in order to ensure the performance of the radar system is not compromised. Interference, either by reflecting structures or other RF transmitters, may significantly impair radar performance by creating blind sectors, clutter on the radar display or generation of false targets. -
Page 9: Obstructions And Blind Sectors
12.5° 12.5° 12.5° 12.5° (6 ft) (9.8 ft) STBY STBY 12.5° 12.5° (6 ft) STBY Pulse radar and pulse compression radar Pulse radar and broadband radar Two pulse radars Other RF sources The radar antenna should be installed at a safe distance from interfering high-power energy sources and other transmitting and receiving radio antennas. -
Page 10: Radar Antenna Height Implications
< 2l < 500 m Radar antenna height implications Antenna elevation table The antenna elevation from the water surface determines the distance the radar beam travels before hitting the water surface. Height (m) Distance (m) 14.1 18.8 23.5 Height (m) Distance (m) 35.3 47.0... - Page 11 536.0 mm (21.10”) 458.0 mm (18.03”) min. 200.0 mm (7.87”) min. 258.5 mm (10.18”) 100.0 mm (7.16”) 182.0 mm (7.16”) Ú Note: A length of at least 0.5x the diameter of the screw should be visible when the SRT LAN up-mast transceiver is properly secured. Use a good quality isolating or anti-seize compound on the thread, to prevent electrolysis.
- Page 12 All electrical connections are made when the performance monitor arm is attached to the pedestal. It is not necessary to complete any further connections inside SRT LAN transceiver enclosure. Installation | SRT LAN Radar sensor X-band up-mast...
-
Page 13: Wiring
Wiring System example SRT LAN radar sensor Antenna SRT LAN up-mast transceiver R5000 power supply unit M5000 monitor R5000 radar processor O5000 trackball O2000 controller O2000 power supply unit R5000 control station Power cable LAN cable General wiring guidelines •... -
Page 14: Srt Lan Up-Mast Transceiver Overview
SRT LAN up-mast transceiver overview Power connector LAN connector Heater connector location (shown with a protective cover attached) Grounding terminal Radar performance monitor arm flange Safety switch Grounding the SRT LAN transceiver Connect a tinned copper cable (>25 mm2) between the ground terminal on the SRT LAN transceiver and the ship´s structure. -
Page 15: Heater Kit (Optional)
The optional heater kit is used to ensure safe start-up and operation in harsh conditions. For details, refer to "Technical specifications" on page 18. Parts included R5000 power supply unit Connector (8-pin female) for temperature sensor and controller PCB In-line fuse holder (10 A SB fuse) - Page 16 Remove the blanking plate and gasket from the heater connection at the SRT LAN transceiver. Pass the heater elements, 8-pin connector, and fuse holder through the hole, from outside to the inside. Mount the external connector to the SRT LAN transceiver using the removed screws.
-
Page 17: R5000 Power Supply Unit Mounting And Wiring
Upper heater element mounting hole Cable route Connect and route the external power cable to the R5000 power supply unit R5000 power supply unit mounting and wiring The heater kit operates at 52 V DC and should be connected to the 52 V DC output. Refer to the power supply unit documentation for mounting and wiring details. -
Page 18: Technical Specifications
Technical specifications SRT LAN Radar sensor X-band up-mast General Antenna type End-fed-slotted waveguide Type approval Radar Equipment CAT 1 (H), CAT 2 (H) and CAT 3 Environmental Temperature Operating temperature -25°C to 55°C (According to IEC 60945 ed. 4.0) Operating temperature with heater kit -40°C to 55°C according to RMRS rules installed (2-020101-040-E Vol 2 - Environmental Test of... - Page 19 Short pulse 3000 Hz Medium pulse 1500 Hz Long pulse 750 Hz Modulator MOSFET Solid State IF amplifier Logarithmic IF dynamic 95 dB IF center frequency 60 MHz IF bandwidth Short pulse 20 MHz Medium pulse 4.8 MHz Long pulse 1.5 MHz Horizontal beam width 6 ft.
-
Page 20: Accessories
Accessories The most up-to-date accessories list is available at: • www.navico-commercial.com Accessories | SRT LAN Radar sensor X-band up-mast... -
Page 21: Dimensional Drawings
Dimensional drawings SRT LAN Radar sensor X-band up-mast Front: 364 mm (14.3”) The antenna length (A) is model dependent: 6 feet antenna: 1810 mm (71.26") 9 feet antenna: 2660 mm (104.72") 12 feet antenna: 3628 mm (142.83") Side: 182.0 mm (7.17”) 276.0 mm (10.87”) - Page 23 www.navico-commercial.com...
