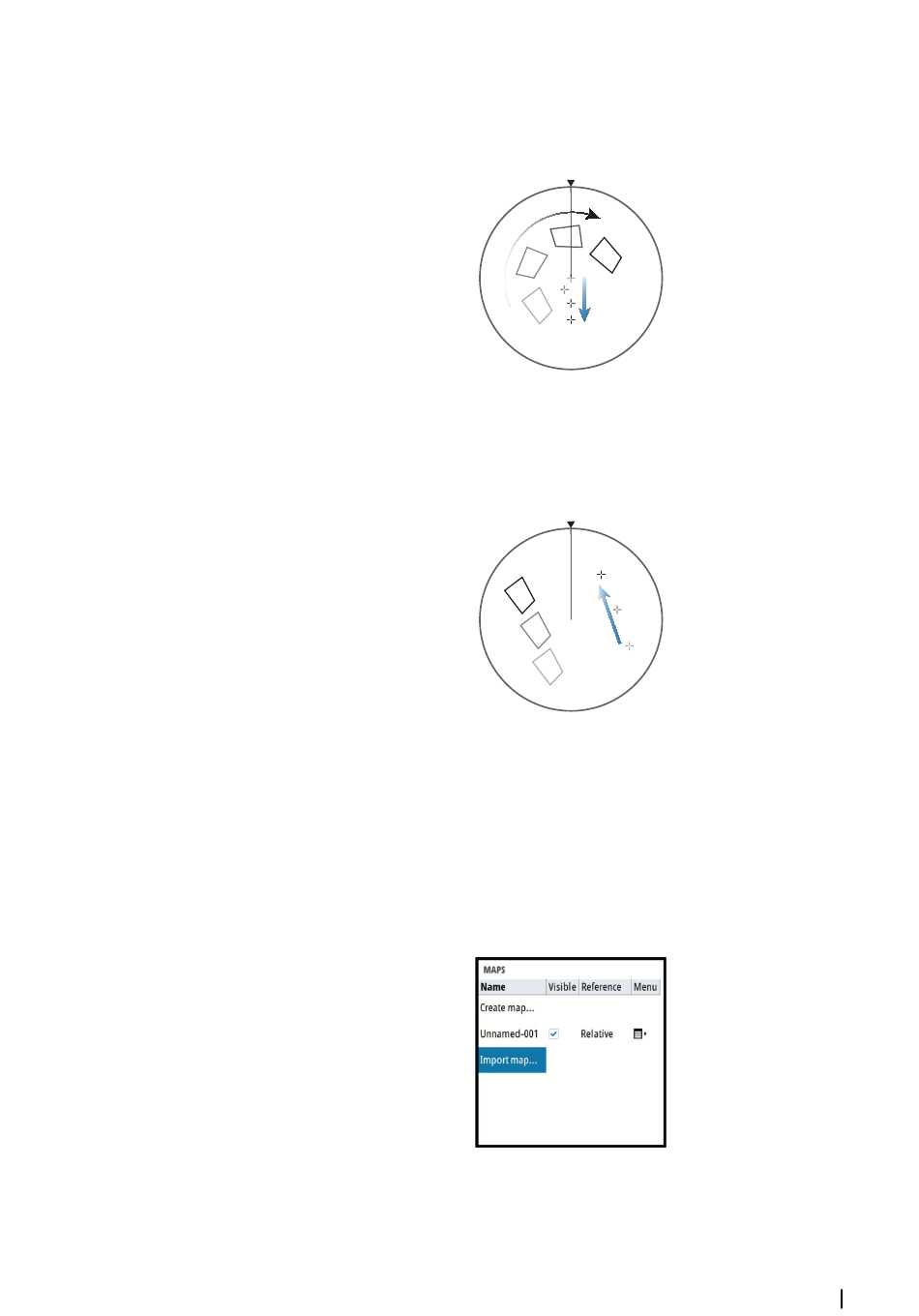

Rotating a map
When the rotate option is selected, the cursor is positioned in the center of the PPI.
• Use the arrow keys to move the cursor and to rotate the map around the vessel's position
• Press the exit key to leave edit mode
Shifting a map position
When the shift option is selected, the cursor is positioned in the center of the PPI, and the
map is anchored to the cursor.
• Use the arrow keys to move the cursor and to shift the map position
• Press the exit key to leave edit mode

Exporting maps

Maps listed in the maps dialog can be exported individually and used on other compatible
radar units.
Saved maps can also be copied from internal memory to a memory card from the files
management system.

Importing maps

Compatible maps created on other units can be imported to the system. Imported maps are
added to the units' non-volatile memory, and the maps are added to the list of loaded maps.
