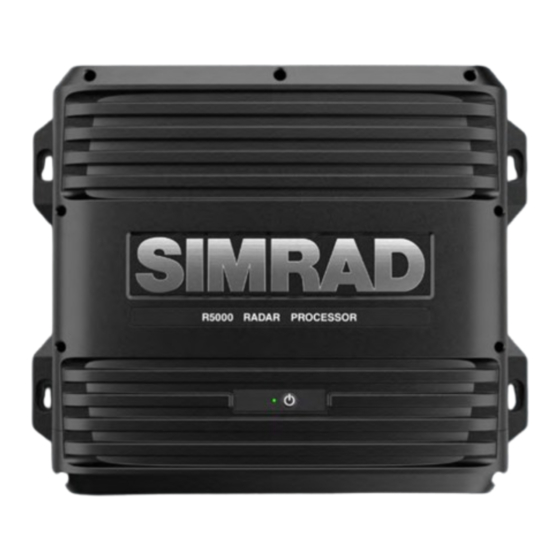

R5000 Radar processor
Installation Manual
English
www.navico-commercial.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R5000 and is the answer not in the manual?

Questions and answers

Related Manuals for Simrad R5000

Summary of Contents for Simrad R5000

  • Page 1 R5000 Radar processor Installation Manual English www.navico-commercial.com...
  • Page 3 • Navico® is a trademark of Navico Group. • SIMRAD® is a trademark of Kongsberg Maritime AS, Licensed to Navico Group. • HALO® is a trademark of Navico Group. • HDMI® and High-Definition Multimedia Interface® are trademarks of HDMI Licensing Administrator, Inc.
  • Page 4 Only reading these operating instructions cannot replace such training. Persons authorized to operate, maintain and troubleshoot the system are instructed and trained by Simrad. Persons operating or servicing this radar system must be familiar with the general safety regulations and specific safety...
  • Page 5 Main power is always present on the terminal board unless the main break from the power distribution panel of the vessel is turned off. Warning: Never look down a waveguide from which power is being radiated! Preface | R5000 radar processor Installation Manual...

  • Page 6: Table Of Contents

    DGT (Dangerous Target) DMA (Dead Man Alarm) Monitor Ethernet Alphabetic alert list NMEA® 2000 Video in USB devices Card reader 22 Technical specifications R5000 processor unit 24 Accessories 25 Dimensional drawings R5000 processor unit Contents | R5000 radar processor Installation Manual...

  • Page 7: Parts Included

    • 3x alarm/DGT/DMA (2 positions) • Terminal connector kit Document pack DVI cable for monitor connection, 3 m (9.84 ft) Serial cable for monitor control, with terminal plugs, 3 m (9.84 ft) Parts included | R5000 radar processor Installation Manual...

  • Page 8: Installation

    Exposing the unit to conditions that exceed the specifications could invalidate your warranty, refer to the technical specification in the on page 22. "Technical specifications" Wall mounting Installation | R5000 radar processor Installation Manual...

  • Page 9: Wiring

    SRT LAN up-mast or HALO transceiver R5000 power supply unit M5000 monitor R5000 radar processor O5000 trackball O2000 controller or expanded keyboard O2000 power supply unit R5000 control station Managed switch Lightweight Ethernet sensor (LWE IEC 61162-450) Wiring | R5000 radar processor Installation Manual...

  • Page 10: Connectors

    It is protected against reverse polarity, under voltage and over voltage (for a limited duration). If R5000 power supply is not used, a fuse or circuit breaker shall be fitted to the positive supply. For recommended fuse rating, refer to "Technical specifications" on page 22.
  • Page 11 Listener B (Rx_B) Shield Port 1 Ground (IEC 61162-2) Talker A (Tx_A) Talker B (Tx_B) Shield Listener A (Rx_A) Listener B (Rx_B) Shield Port 2 Ground (IEC 61162-2) Talker A (Tx_A) Talker B (Tx_B) Shield Wiring | R5000 radar processor Installation Manual...
  • Page 12 Failure to do so would make the rest of the system non-compliant. The system must be connected to an External Position Fixing System (EPFS), a gyrocompass/ heading sensor, and a SDME source via serial line. Wiring | R5000 radar processor Installation Manual...

  • Page 13: Alarm

    DMA (Dead Man Alarm) The DMA output is active when an action is made by the operator on the control station. This output is intended to be connected to a BNWAS system. Wiring | R5000 radar processor Installation Manual...

  • Page 14: Vdr

    The unit should be turned off prior to connecting or disconnecting a DVI cable. Monitor control wiring A serial connection to the monitor is required to control the monitor brightness. For wiring details, refer to the System Installation Manual. Wiring | R5000 radar processor Installation Manual...

  • Page 15: Ethernet

    Every device that is a part of the LWE network shall be assigned an IP address (10.0.0.1 to 10.255.255.253 or 192.168.0.1 to 192.168.255.254). This IP address is to be chosen as a unique address for every device on the boat network. Wiring | R5000 radar processor Installation Manual...
  • Page 16 NAVD - Transfer group 1 is the default transfer group to interface the VDR. Destination multicast Addresses and Port Numbers Transmission group Category Multicast Destination address port MISC Data sharing (SNGFs) 239.192.0.1 60001 Wiring | R5000 radar processor Installation Manual...

  • Page 17: Alphabetic Alert List

    AIS target # is lost. 3052 BAM HBT Lost BAM heartbeat lost. 10000 Bearing Pulse Bearing pulse fault. 16016 FAIL Dangerous AIS CPA or TCPA values of an activated AIS target 3044 less than set limits. Wiring | R5000 radar processor Installation Manual...
  • Page 18 3015 SOG FAIL Not used. Speed Over Ground failure. 10194 Speed log failure. 3015 Speed LOG FAIL Not used. Speed log failure. 10194 SPD Long. Axis Speed longitudinal axis data failure. 3015 FAIL Wiring | R5000 radar processor Installation Manual...
  • Page 19 TT Lost: # Tracked target # is lost. 3052 TT Unavailable Tracking unavailable. 16043 TXRX PM Loss Transmit performance loss. 16048 UTC Data FAIL UTC data failure. 3015 Radar Video FAIL Radar video failure. 3015 Wiring | R5000 radar processor Installation Manual...

  • Page 20: Nmea® 2000

    USB cable length should not exceed 5 m when using regular cables. Lengths over 5 m may be possible with the use of an active USB cable. USB connector details Unit socket (female) Cable plug/Device plug (male) The unit is equipped with standard USB type-A connector(s). Wiring | R5000 radar processor Installation Manual...

  • Page 21: Card Reader

    Card reader A memory card can be used for: • Software updates • Transfer of user data • System backup Card details ® The unit supports MicroSD cards up to 8 GB. Wiring | R5000 radar processor Installation Manual...

  • Page 22: Technical Specifications

    Monitor DVI output to remote display Card reader 1 MicroSD® card reader LWE (IEC 61162-450 Interface) Technology Standards 100BaseT, IEEE 802.3, IPv4 IP address (selectable): Class A Between 10.0.0.1 to 10.255.255.253 Technical specifications | R5000 radar processor Installation Manual...
  • Page 23 500 (not intended for the equipment at 50% of the maximum load of 1000) Network Traffic Filtering IGMP version 2 by external managed switch Communication redundancy RSTP by external managed switch Other Network Functions Navico Radar Protocol (NRP) Technical specifications | R5000 radar processor Installation Manual...

  • Page 24: Accessories

    Accessories The most up-to-date accessories list is available at: • www.navico-commercial.com Accessories | R5000 radar processor Installation Manual...

  • Page 25: Dimensional Drawings

    Dimensional drawings R5000 processor unit 281 mm (11.05”) 265 mm 69 mm (10.42”) (2.73”) Dimensional drawings | R5000 radar processor Installation Manual...
  • Page 27 © 2023 Navico Group. All Rights Reserved. Navico Group is a division of Brunswick Corporation. ®Reg. U.S. Pat. & Tm. Off, and ™ common law marks.  Visit http://www.navico.com/intellectual-property to review the global trademark rights and accreditations for Navico www.navico-commercial.com Group and other entities.
