Introduction

R5000 system overview

A basic R5000 radar system has the following main parts:
• SRT LAN radar sensor (A), including:
- Antenna
- Up-mast or down-mast SRT LAN transceiver
- R5000 power supply unit
• R5000 radar control station (B), including:
- M5000 monitor
- O2000 control unit
- O5000 trackball unit
- R5000 radar processor
A
B

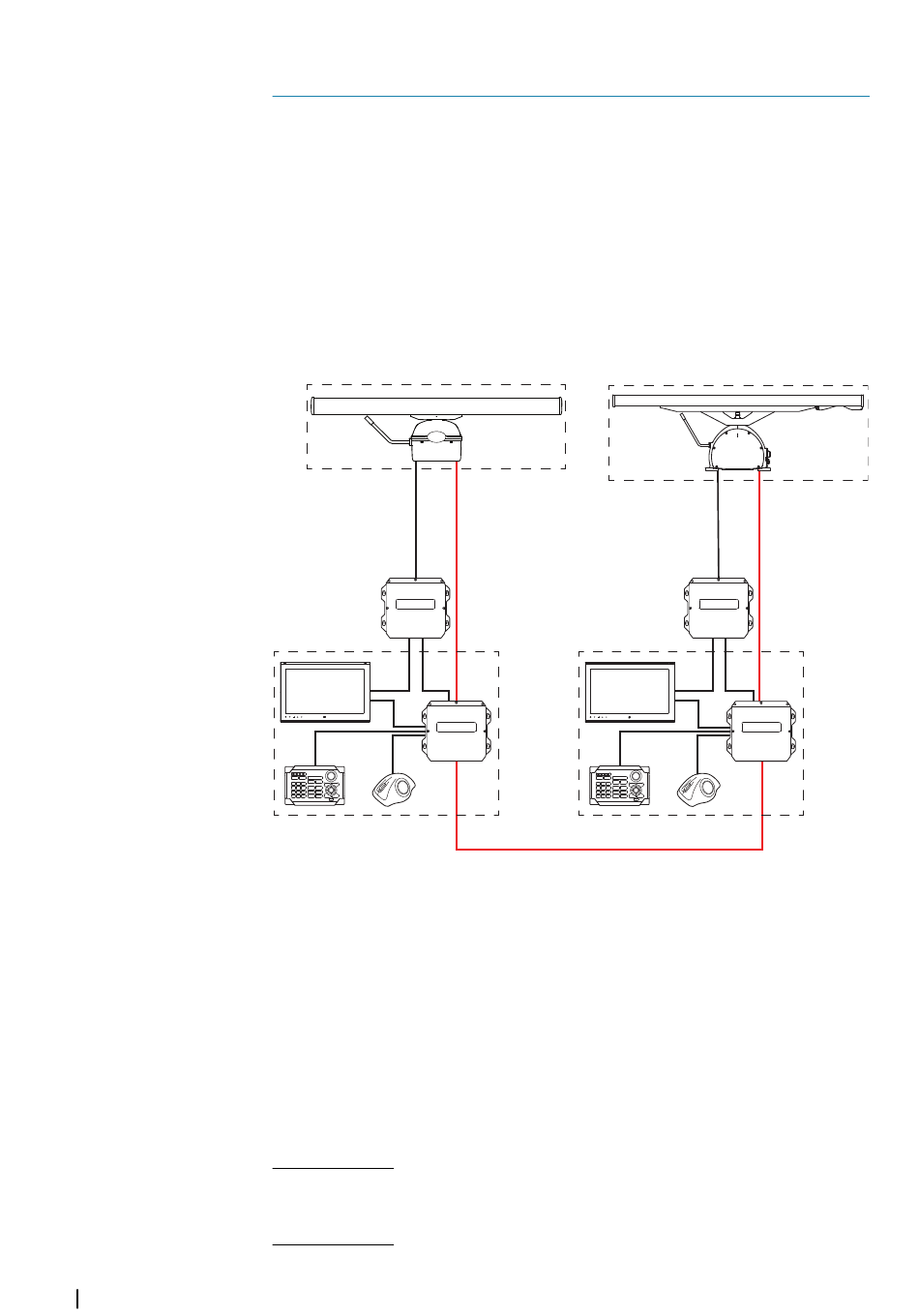

An R5000 system can be installed as a stand-alone radar system, or as an advanced
installation with several sensors and control stations.
In an advanced installation, each radar sensor has a control station directly wired to it. This
control station will be the radar sensor's default master controller. The R5000 radar
processors can be connected with an interswitch LAN cable. This allows for sharing the
control of the radar sensors between multiple radar control stations. During commissioning
of the system, the interswitch function is configured to manage the control of the radar
sensors. For more information, refer to "The Interswitch function" on page 24.

R5000 manuals

The following documentation is available for the R5000 radar systems:
R5000 Operator manual
User descriptions of the radar control unit and of the features included in the system.
Intended audience: System operator.
R5000 Quick Guide
Graphical document describing the keys and the main functions.
Intended audience: System operator.
