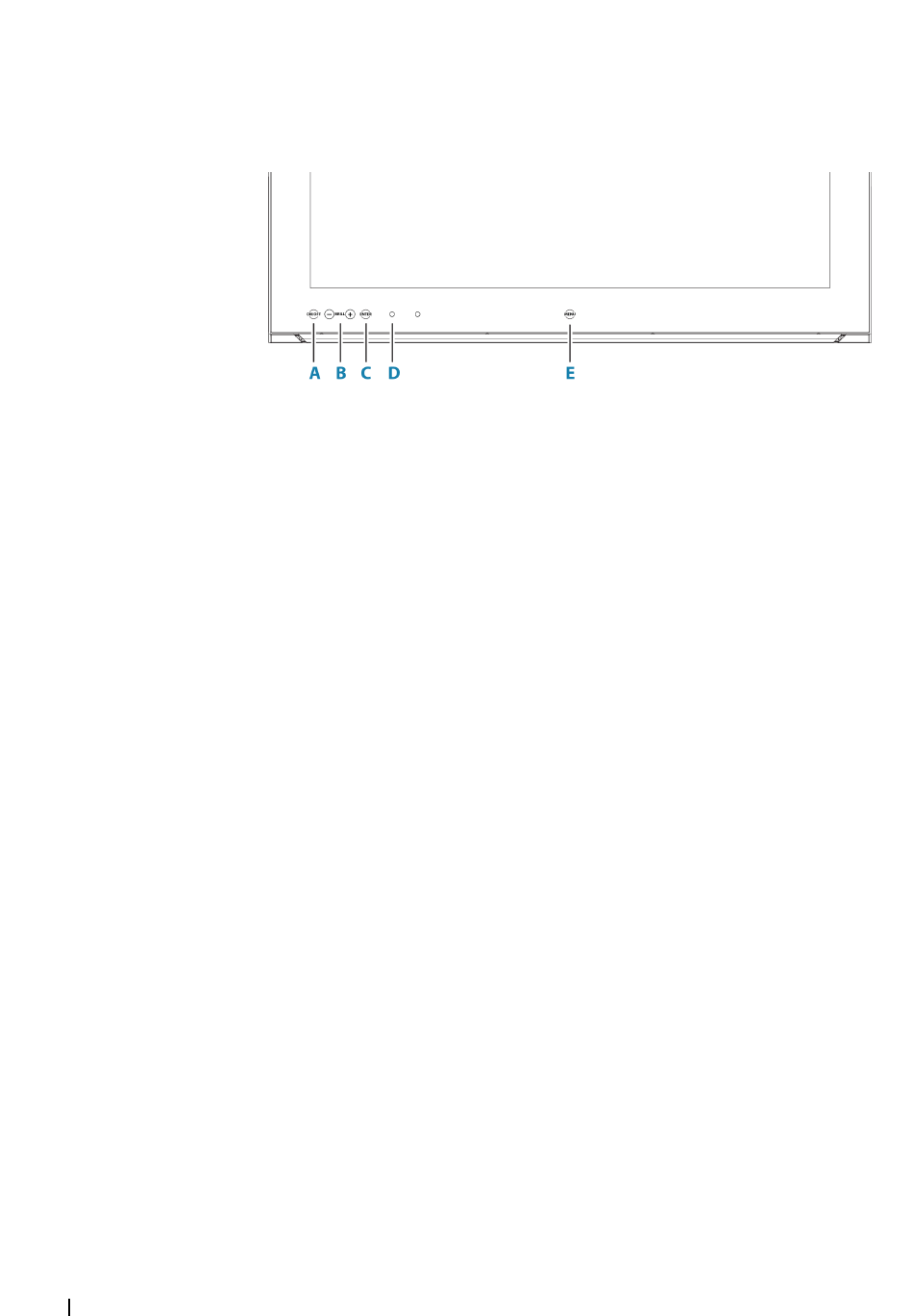

M5000 monitor keys
The monitor is configured and controlled using the row of touch sensitive buttons along the
lower edge of the monitor frame. All buttons are backlit - only the power button is
illuminated when the monitor is turned off.
A
Power key
•
With OSD (On Screen Display) menu active: press to return to previous menu
level
•
With no OSD menu action: no action
B
Brilliance adjustment key
•
Press plus/minus key to decrease/increase brightness (no on-screen display of
brightness level)
•
Simultaneously press and hold both keys to reset the brightness level to default
value. The default value is set in the OSD menu
•
With OSD menu active: press plus/minus key to move focus up/down in the
menu
C
Enter key
•
With OSD menu active: press to confirm a selection
•
With no OSD menu active: no action
D
Red LED
•
Solid on: standby mode, or no video source
•
Flashing: monitor booting or upgrading
E
Menu key
•
Press and hold to activate the OSD menu
For more information, refer to the separate documentation for the monitor.
