Wiring

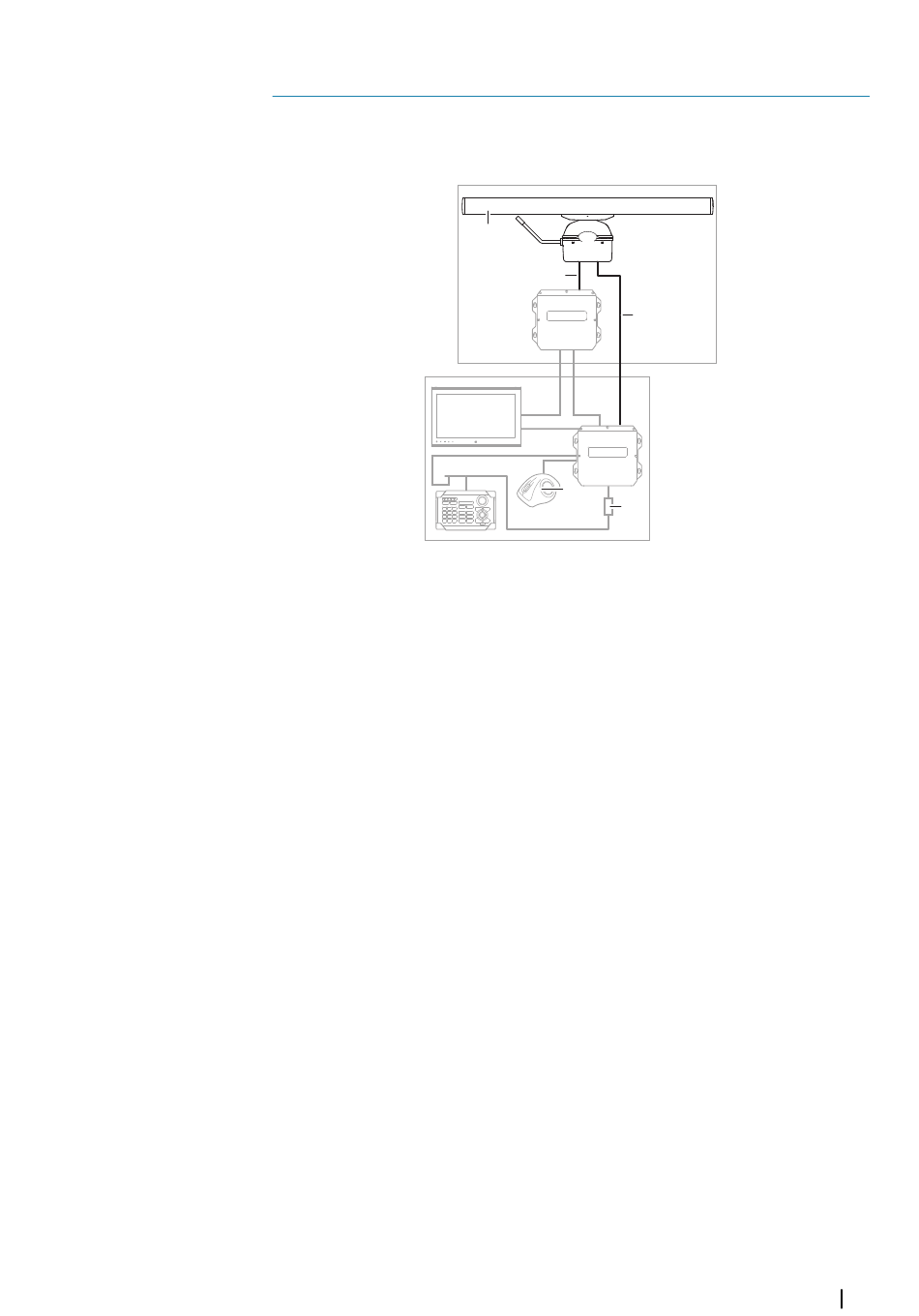

System example
A
SRT LAN radar sensor
B
Antenna
C
SRT LAN up-mast transceiver
F
R5000 power supply unit
G
M5000 monitor
H
R5000 radar processor
I
O5000 trackball
J
O2000 controller
K
O2000 power supply unit
L
R5000 control station
1
Power cable
2
LAN cable
General wiring guidelines
•
Check all ground connections. During the hardware installation they must be completed
before power and communication cabling
•
Create drips loops where cable connects to product, to prevent water collecting on
device connectors
•
All cables should be routed as directly as possible, consistent with consideration for other
equipment, in order to reduce electromagnetic interference effects and voltage drop
•
Cables should not be installed close to high-power or high frequency conducting cables,
such as radar or radio-transmitter lines or large DC motor cables
•
Where cables intersect, try to stay at right angles (90°) to minimize inductance of noise
•
Only use suitable waterproof connectors when joining cables
•
If a cable being pulled through a concealed area requires excessive force to finish pulling
through the remaining cable, consider rerouting cable via an alternative route – otherwise
cable conductors may get broken, the cable sheath & insulation may be damaged, or the
same damage may be done to adjacent cables, which may cause a fire
Wiring
| SRT LAN Radar sensor X-band up-mast
A
B
C
1
F
F
G
G
H
H
I
K
J
J
L
2
