30  Start-up
Rev. 00 08/17

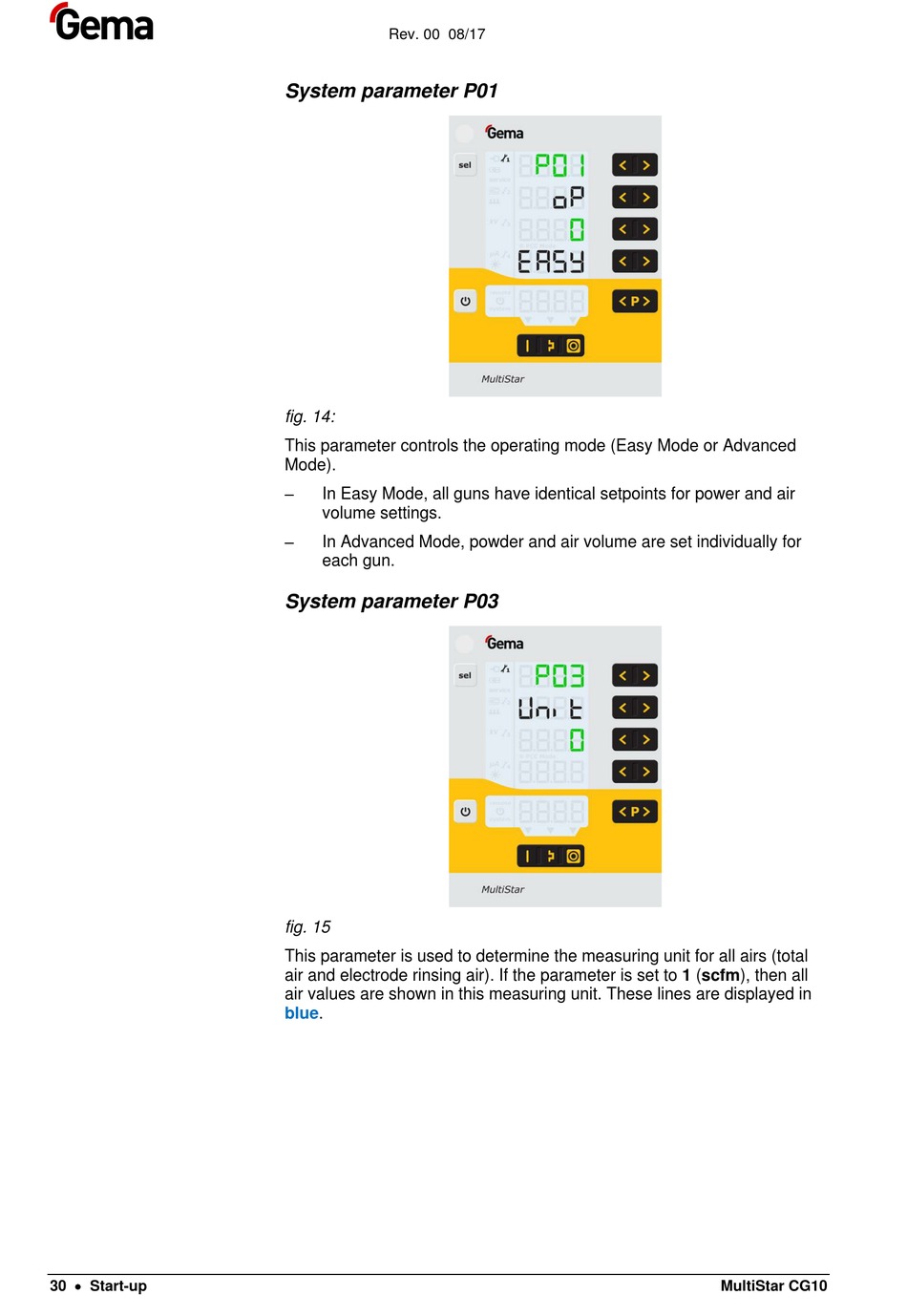

System parameter P01
fig. 14:
This parameter controls the operating mode (Easy Mode or Advanced
Mode).
–
In Easy Mode, all guns have identical setpoints for power and air
volume settings.
–
In Advanced Mode, powder and air volume are set individually for
each gun.
System parameter P03
fig. 15
This parameter is used to determine the measuring unit for all airs (total
air and electrode rinsing air). If the parameter is set to 1 (scfm), then all
air values are shown in this measuring unit. These lines are displayed in
blue.
