14  Product description
Rev. 00 08/17

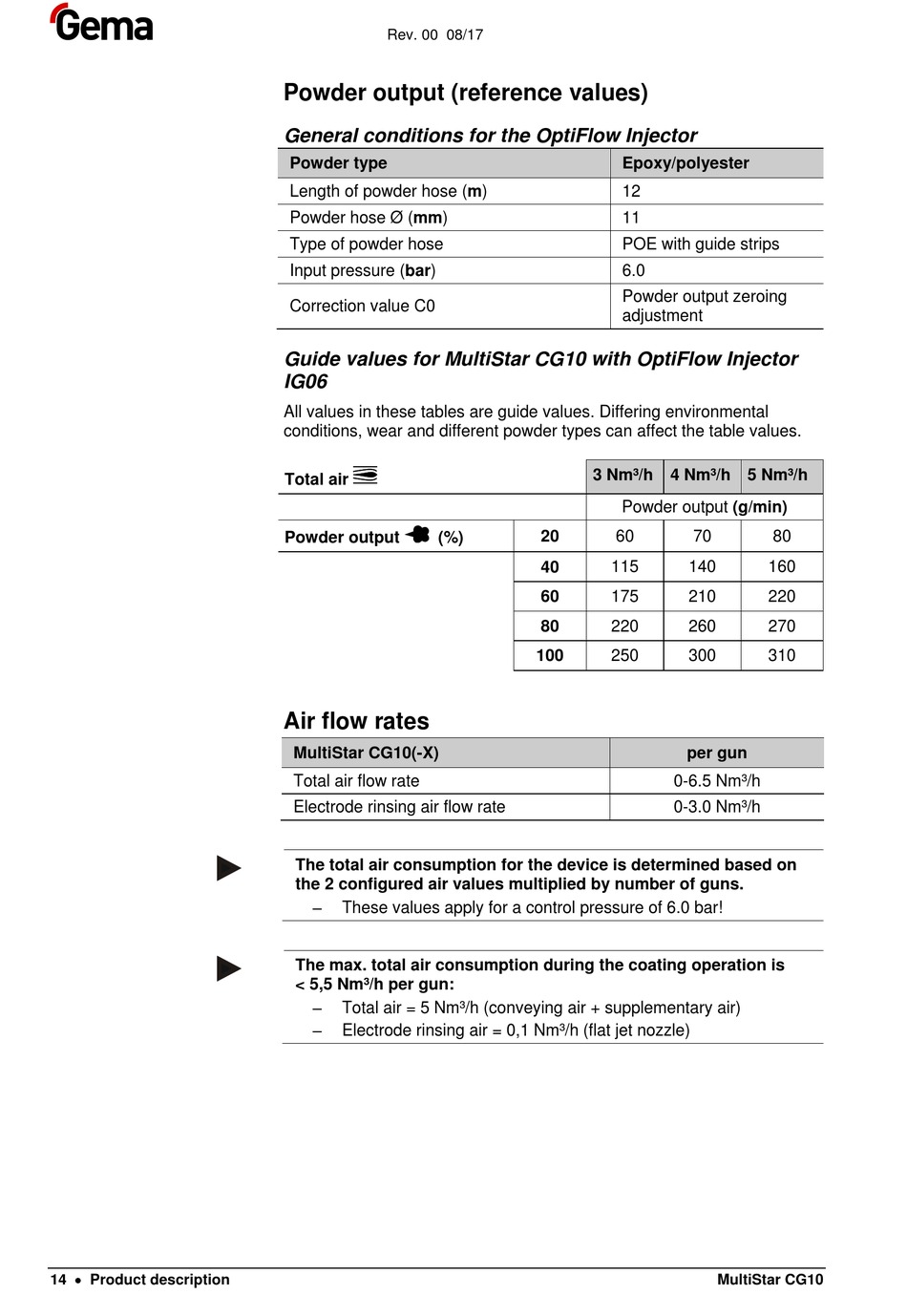

Powder output (reference values)

General conditions for the OptiFlow Injector
Powder type
Length of powder hose (m)
Powder hose Ø (mm)
Type of powder hose
Input pressure (bar)
Correction value C0
Guide values for MultiStar CG10 with OptiFlow Injector
IG06
All values in these tables are guide values. Differing environmental
conditions, wear and different powder types can affect the table values.
Total air
Powder output (%)

Air flow rates

MultiStar CG10(-X)
Total air flow rate
Electrode rinsing air flow rate
The total air consumption for the device is determined based on
the 2 configured air values multiplied by number of guns.
–
These values apply for a control pressure of 6.0 bar!
The max. total air consumption during the coating operation is
< 5,5 Nm³/h per gun:
–
Total air = 5 Nm³/h (conveying air + supplementary air)
–
Electrode rinsing air = 0,1 Nm³/h (flat jet nozzle)
Epoxy/polyester
12
11
POE with guide strips
6.0
Powder output zeroing
adjustment
3 Nm³/h 4 Nm³/h 5 Nm³/h
Powder output (g/min)
20 60 70
40 115 140
60 175 210
80 220 260
100 250 300
per gun
0-6.5 Nm³/h
0-3.0 Nm³/h
80
160
220
270
310
MultiStar CG10
