Connections

Compressed air hoses / cables

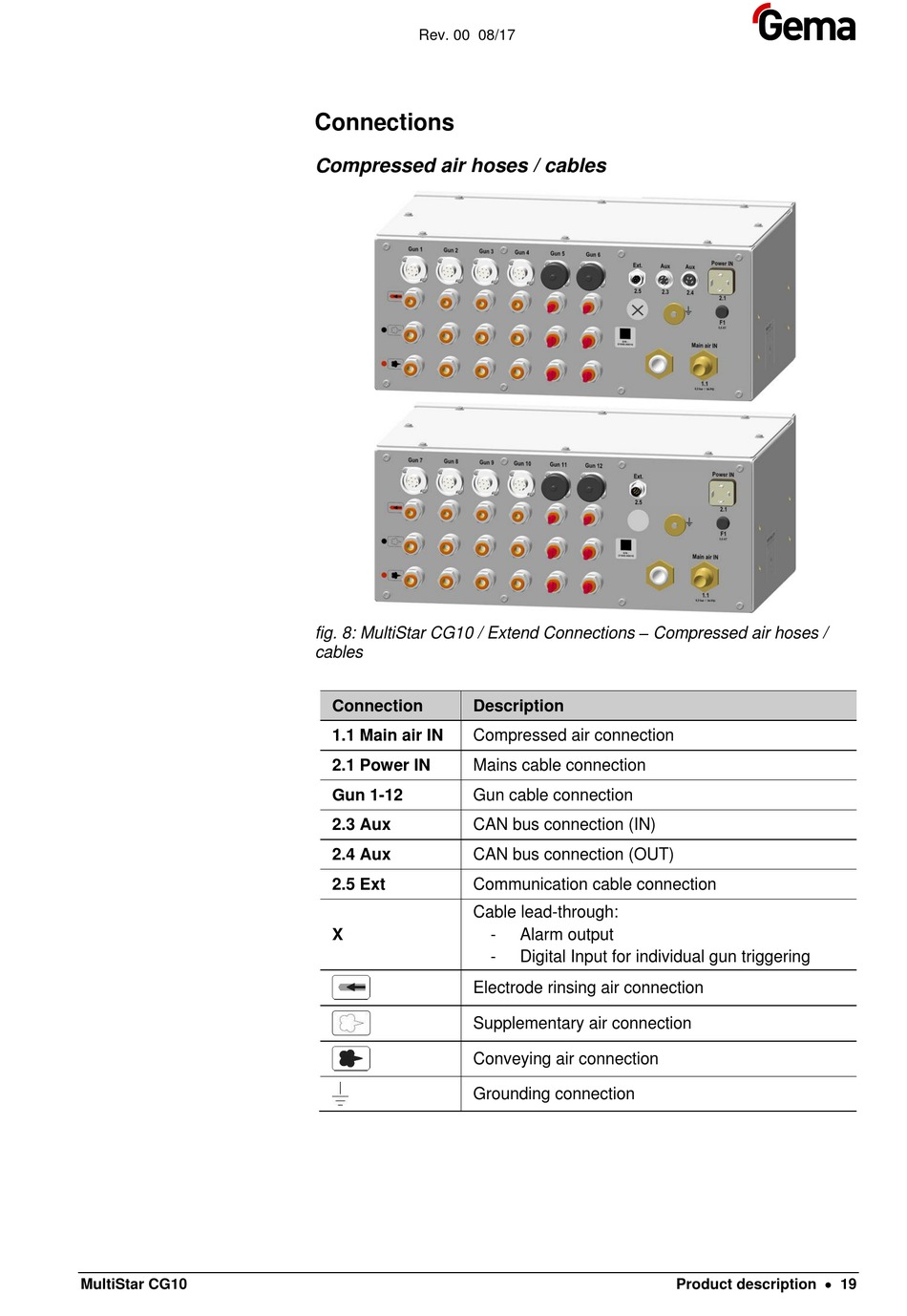

fig. 8: MultiStar CG10 / Extend Connections – Compressed air hoses /
cables
Connection Description
1.1 Main air IN Compressed air connection
2.1 Power IN Mains cable connection
Gun 1-12 Gun cable connection
2.3 Aux CAN bus connection (IN)
2.4 Aux CAN bus connection (OUT)
2.5 Ext Communication cable connection
Cable lead-through:
X
Electrode rinsing air connection
Supplementary air connection
Conveying air connection
Grounding connection
- Alarm output
- Digital Input for individual gun triggering
