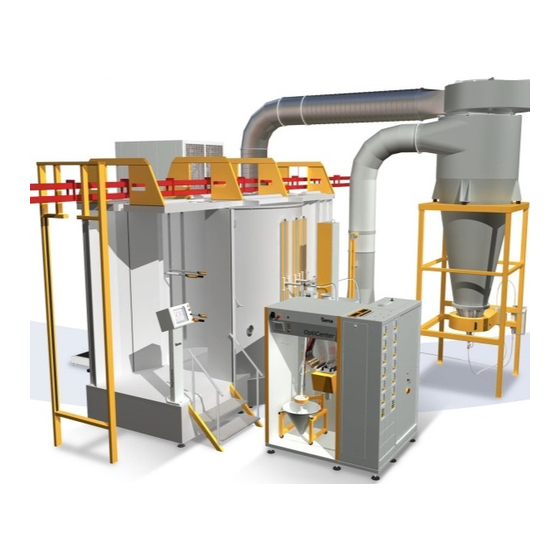

- Page 1 Operator Quick Guide CM30 with OptiCenter OC03 Your global partner for high quality powder coating...
- Page 2 Switch on the plant 1. Turn the key switch on 1 2. Touch the screen 3. Log in with user name and password Switch on the plant V 01/16 CM30 Start-up...
- Page 3 4. Referencing axes 5. Select the Coating mode 6. This mask is displayed CM30 Start-up V 01/16 Switch on the plant...
- Page 4 9. Confirm the RP hose position !!Caution!! In Waste powder mode only fresh powder is used. There is NO powder recovered! It is imperative to switch to the Recovery mode after a certain period! Switch on the plant V 01/16 CM30 Start-up...
- Page 5 Switch off the installation 1. Exit the Cleaning mode 2. Press the Standby key 3. Exit Standby 4. Press the Exit key 5. Turn the key switch on 0 CM30 Start-up V 01/16 Switch off the installation...
- Page 6 Color change / Cleaning mode On the CM30 panel 1. Exit the Coating mode 2. Select the Cleaning mode 3. Close the doors 4. Coarse cleaning of the booth 5. Clean the outside of the guns (only in case of a foreign booth or if there are...
- Page 7 8. Select the Cleaning mode 9. Select the cleaning possibility 10. Put the fresh powder lance in the park position 11. Move the FP cone under OptiSpeeder 12. Pres the "Emptying OptiSpeeder" key 2x CM30 Start-up V 01/16 Color change / Cleaning mode...
- Page 8 13. Move back the FP cone 14. Change the recovery hose position 15. Confirm 16. The sequence continues to run automatically 17. Wait until this mask is displayed 18. Clean the OptiSpeeder, place the cover Color change / Cleaning mode V 01/16 CM30 Start-up...
- Page 9 19. Connect the RP hose to the "Cleaning" 20. Confirm connection 21. Remove powder bag, clean the OC 22. Fine booth cleaning thoroughly 23. Clean the ducting 24. Clean and remove the sieve CM30 Start-up V 01/16 Color change / Cleaning mode...
- Page 10 27. Clean the cyclone, use only one nozzle at the 28. Insert the sieve and close the cyclone time 29. Place the bag with new color, connect the RP 30. Exit the Cleaning mode hose to the "Waste" connection Color change / Cleaning mode V 01/16 CM30 Start-up...
- Page 11 31. Select the "Spray to waste" mode 32. Confirm the RP hose position On the CM30 panel 33. Open the doors 34. Exit the Cleaning mode 35. Return to the Coating mode CM30 Start-up V 01/16 Color change / Cleaning mode...
- Page 12 Manual operating mode only: conveyor simulation Start / Stop guns, axes Object recognition Current object present / no object operating mode Call up programs to change them locally Current error with number Acknowledge the alarm CM30 Start-up V 01/16 Main menu...
- Page 13 Access to powder output correction (Manual operating mode only) Changes per Access to all Access to axes Acknowle Error Save Exit screen station or all coating parameters dge error description changes stations programs CM30 Start-up V 01/16 Guns settings...
- Page 14 !! Caution !! before and after the (controlled by object !! Collision danger !! object width recognition) Access to all Access to guns Acknowle Error Save Exit screen coating parameters dge error description changes programs CM30 Start-up V 01/16 Axes settings...
- Page 15 Schematic Powder Circuit CM30 Start-up V 01/16 Schematic Powder Circuit...
