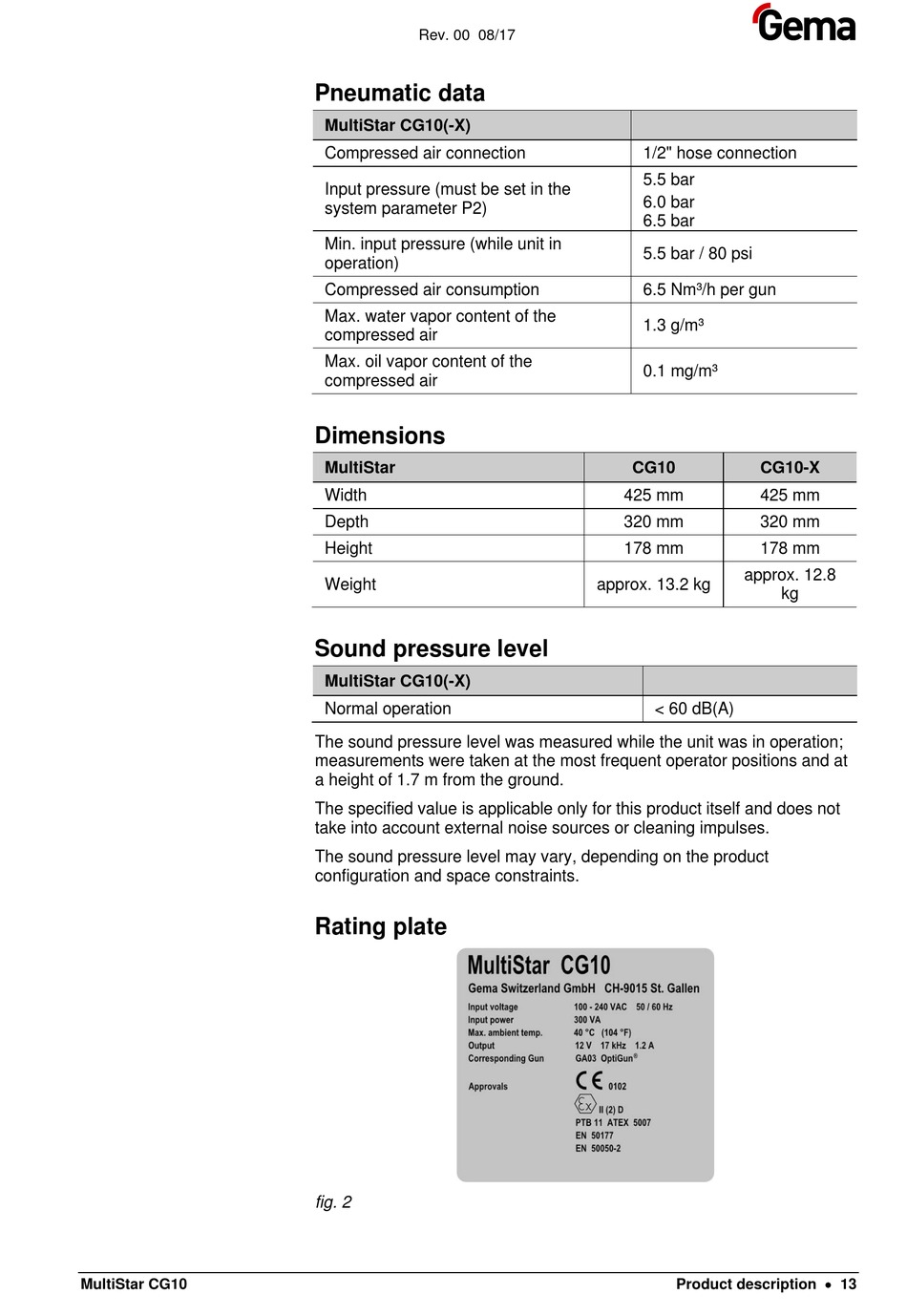

Pneumatic Data; Dimensions; Sound Pressure Level; Rating Plate - Gema MultiStar CG10 Operating Instructions And Spare Parts List

MultiStar CG10
Rev. 00 08/17

Pneumatic data

MultiStar CG10(-X)
Compressed air connection
Input pressure (must be set in the
system parameter P2)
Min. input pressure (while unit in
operation)
Compressed air consumption
Max. water vapor content of the
compressed air
Max. oil vapor content of the
compressed air

Dimensions

MultiStar
Width
Depth
Height
Weight

Sound pressure level

MultiStar CG10(-X)
Normal operation
The sound pressure level was measured while the unit was in operation;
measurements were taken at the most frequent operator positions and at
a height of 1.7 m from the ground.
The specified value is applicable only for this product itself and does not
take into account external noise sources or cleaning impulses.
The sound pressure level may vary, depending on the product
configuration and space constraints.

Rating plate

fig. 2
1/2" hose connection
5.5 bar
6.0 bar
6.5 bar
5.5 bar / 80 psi
6.5 Nm³/h per gun
1.3 g/m³
0.1 mg/m³
CG10 CG10-X
425 mm 425 mm
320 mm 320 mm
178 mm 178 mm
approx. 12.8
approx. 13.2 kg
< 60 dB(A)
Product description  13
kg
