Operating elements

Displays
The desired and actual values are distributed across several
levels.
–
The "sel" key is used to switch between the levels.
–
If no controls are used within 6 s, the device automatically
returns to level 1.

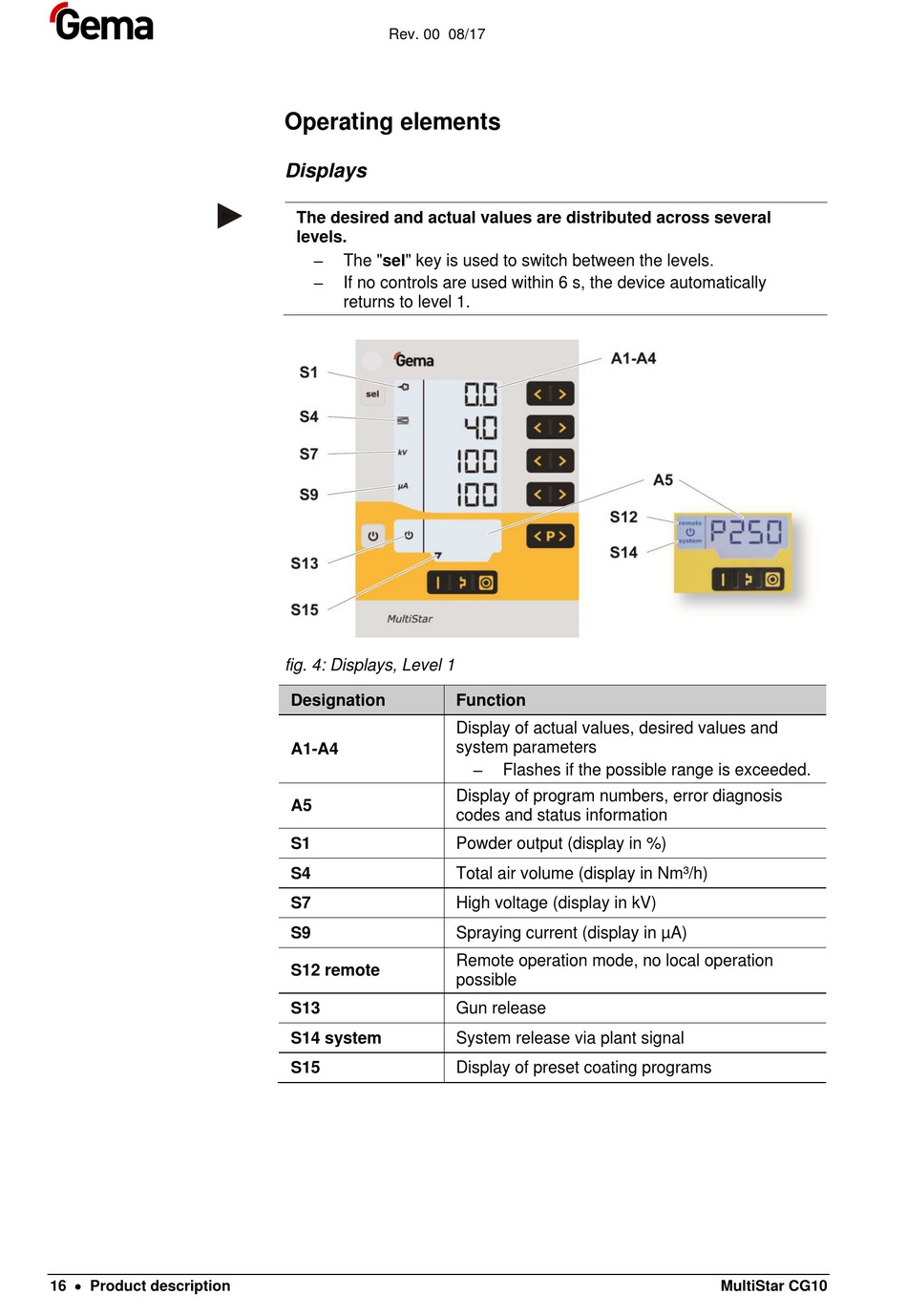

fig. 4: Displays, Level 1
Designation Function
Display of actual values, desired values and
system parameters
A1-A4
Display of program numbers, error diagnosis
A5
codes and status information
S1 Powder output (display in %)
S4 Total air volume (display in Nm³/h)
S7 High voltage (display in kV)
S9 Spraying current (display in µA)
Remote operation mode, no local operation
S12 remote
possible
S13 Gun release
S14 system System release via plant signal
S15 Display of preset coating programs
–
Flashes if the possible range is exceeded.
