Connecting material

Rinsing air hose – Ø 6/4 mm
1
Supplementary air hose – Ø 8/6 mm (black)
2
Conveying air hose – Ø 8/6 mm (red)
3
Hose – Ø 26.6/16.4 mm
4
Mains cable – see enclosed wiring diagram
5
CAN bus cable – 0.5 m
6
CAN bus cable – 4.5 m
CAN bus cable – 5.5 m
CAN bus cable – 6.0 m
6.1 Bus terminal resistor (not shown)
Communication cable – 0,6 m
7
MultiStar CG10
Rev. 00 08/17
* Please indicate length

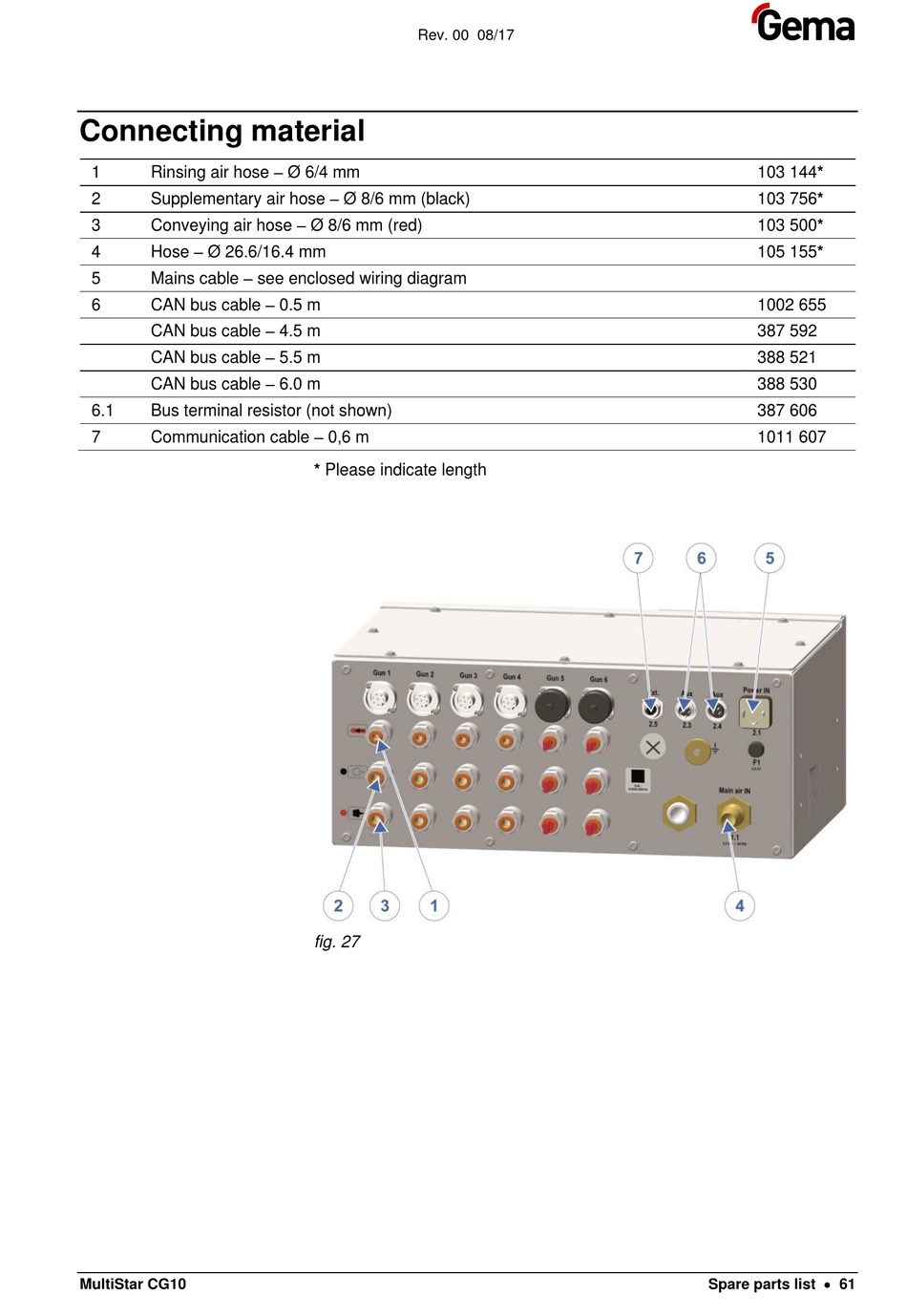

fig. 27
103 144*
103 756*
103 500*
105 155*
1002 655
387 592
388 521
388 530
387 606
1011 607
Spare parts list  61
