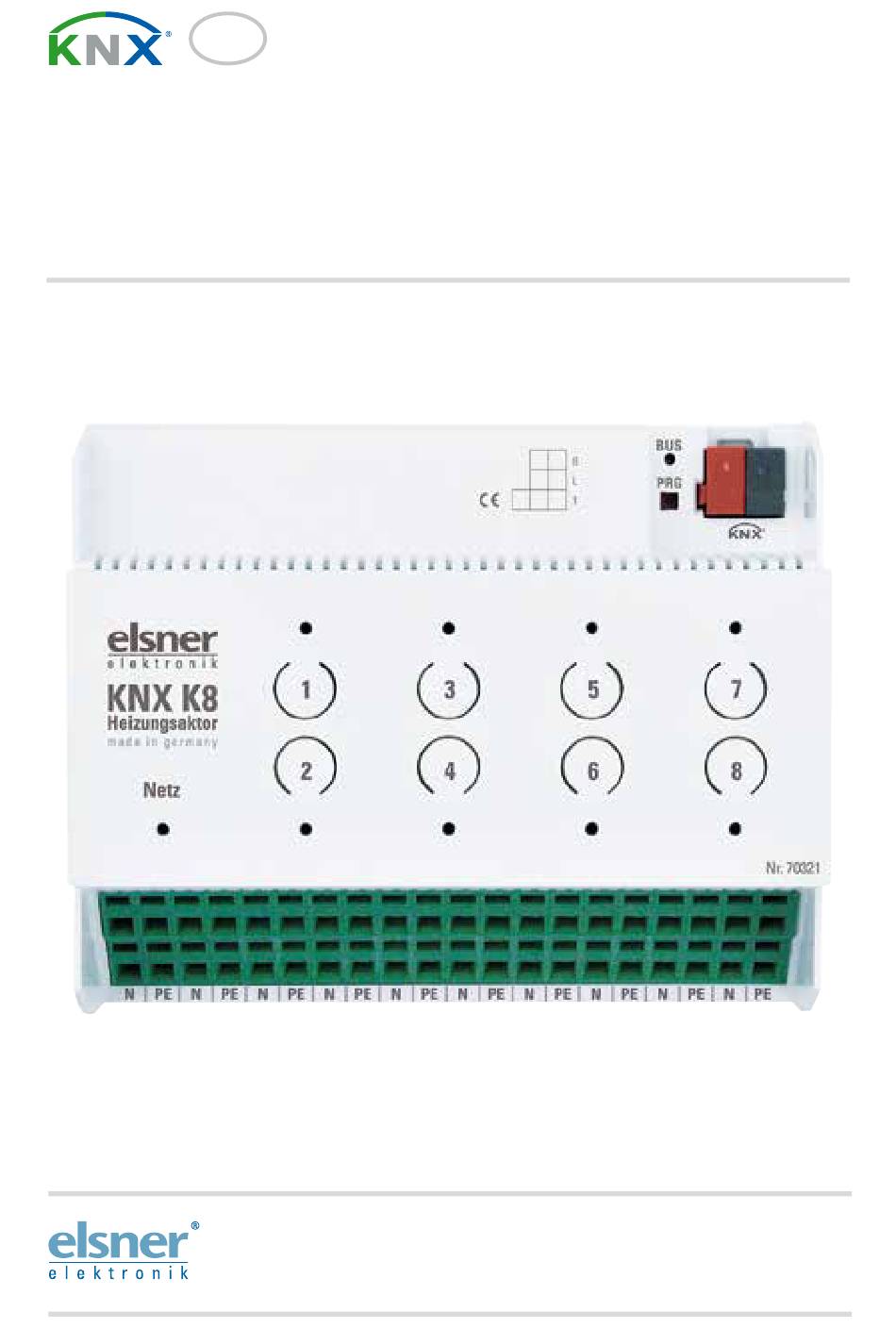

- Page 1 KNX K8 Actuator for Heating and Cooling Item number 70321 Installation and Adjustment...
-
Page 2: Table Of Contents
4.4.3. Heating control level 1/2 ................18 4.4.4. Cooling control level 1/2 ................20 Elsner Elektronik GmbH • Sohlengrund 16 • 75395 Ostelsheim • Germany KNX K8 actuator • from software version 1.00, ETS programme version 1.0 Status: 26.02.2016 • Subject to technical changes. Errors excepted. - Page 3 Clarification of signs Installation, inspection, commissioning and troubleshooting of the device must only be carried out by a competent electrician. This manual is amended periodically and will be brought into line with new software releases. The change status (software version and date) can be found in the contents footer. If you have a device with a later software version, please check www.elsner-elektronik.de in the menu area "Service"...
-
Page 4: Description
The KNX K8 actuator offers eight internal temperature regulators and eight output channels for controlling heating or cooling systems. The temperature regulators can control both the outputs on the KNX K8 and other climate control system on the KNX- Bus. -
Page 5: Installation And Start-Up
Elsner Elektronik is not liable for any changes in norms and standards which may occur after publication of these operating instructions. -
Page 6: Device Connection And Design
During this phase no information can be received or sent via the bus. 2.3.1. Buttons and LEDs for the output channels The buttons on the devices can be deactivated in the ETS (active when delivered). KNX K8 actuator • Version: 26.02.2016 • Technical Changes and Errors excepted. - Page 7 Behaviour of the LEDs for the output channels in Automatic mode: Actuating variable = 0% Actuating variable > 0% in Manual mode: Flashes slowly Manually OFF Flashes fast Manually ON KNX K8 actuator • Version: 26.02.2016 • Technical Changes and Errors excepted.
-
Page 8: Transmission Protocol
Channel 7: Control / Status Input / Output 5,001 C R W T Channel 7: Auto / Manual Input / Output 5.002 C R W T Channel 7: Block Input 1.001 KNX K8 actuator • Status: 18.11.13 • Technical Changes and Errors excepted. - Page 9 9,001 C R W comfort cooling Outp TC_X_ Set point, Input 1.002 comfort cooling (1:+ | 0:-) TC_X_ Set point, Input 9,001 C R W standby heating Outp KNX K8 actuator • Status: 18.11.13 • Technical Changes and Errors excepted.
- Page 10 (level 2) TC_X_ Status Outp 1.002 C R T Heating 1 (1=ON | 0=OFF) TC_X_ Status Outp 1.002 C R T Heating 2 (1=ON | 0=OFF) KNX K8 actuator • Status: 18.11.13 • Technical Changes and Errors excepted.
-
Page 11: Parameter Setting
• 20 messages per second Select which channels and temperature controls you would like to use. The channels control the connected heating/cooling systems on the output channels 1 to 8. Set the KNX K8 actuator • Status: 18.11.13 • Technical Changes and Errors excepted. -
Page 12: Channel 1
(next setting). If control takes place via one of the internal temperature controls, control and variable are selected. Temperature controller no. 1 • 2 • 3 • 4 KNX K8 actuator • Status: 18.11.13 • Technical Changes and Errors excepted. - Page 13 • upon extended key actuation (> 3 s) • upon extended button actuation or upon time setting Time 5 s … 2 h; 1 min (only if switched to time) KNX K8 actuator • Status: 18.11.13 • Technical Changes and Errors excepted.
-
Page 14: Temperature Controller
Lighting time (in minutes) 1…60; 10 4.4. Temperature controller The KNX K8 actuator provides eight temperature controls that are independent of the device outputs and thus may also be used for the control of other heating/cooling actuators. 4.4.1. General regulation For an adequate regulation of the indoor temperature, comfort, standby, eco and building protection modes may be used. - Page 15 The status object shows the current status of the output variable (0 = OFF, >0 = ON) and may, for example, be used for visualisations or to switch off the heating pump as soon as the heating is off. KNX K8 actuator • Status: 18.11.13 • Technical Changes and Errors excepted.
-
Page 16: General Set Point Values
(do not save) or remain saved even after voltage recovery (and programming). This also applies to a comfort extension. Grading for set point changes 1… 50; 10 (in 0.1 °C) KNX K8 actuator • Status: 18.11.13 • Technical Changes and Errors excepted. - Page 17 Initial heating/cooling set point (in 0.1 °C) -300…800; 210 valid till 1st communication Min. object value heating/cooling (in 0.1 -300…800; 160 °C) Max. object value heating/cooling (in 0.1 -300…800; 280 °C) KNX K8 actuator • Status: 18.11.13 • Technical Changes and Errors excepted.
- Page 18 If the 2nd level has a common variable, this is also where you determine the control mode of the 2nd level. KNX K8 actuator • Status: 18.11.13 • Technical Changes and Errors excepted.
-
Page 19: Heating Control Level 1/2
The reset time shows how quickly the controls react to deviations from the set point value. In case of a short reset time, the controls react with a fast increase of the KNX K8 actuator • Status: 18.11.13 • Technical Changes and Errors excepted. - Page 20 Value (in %) 0...100 only if a value is transmitted In case of a common variable for heating and cooling, 0 is always transmitted as a fixed value. KNX K8 actuator • Status: 18.11.13 • Technical Changes and Errors excepted.
-
Page 21: Cooling Control Level 1/2
2 and if no common variables • PI control are used PI control with control parameters: This setting allows individual input of the parameters for PI control. Control type • PI control KNX K8 actuator • Status: 18.11.13 • Technical Changes and Errors excepted. - Page 22 Value (in %) 0...100 only if a value is transmitted 2-point-rule (only level 2): The 2-point-rule is used for systems which are only set to ON or OFF. KNX K8 actuator • Status: 18.11.13 • Technical Changes and Errors excepted.
- Page 23 Value (in %) 0...100 only if a value is transmitted In case of a common variable for heating and cooling, 0 is always transmitted as a fixed value. KNX K8 actuator • Status: 18.11.13 • Technical Changes and Errors excepted.
- Page 24 Elsner Elektronik GmbH Control and Automation Technology Sohlengrund 16 75395 Ostelsheim Phone +49(0)70 33/ 30945-0 info@elsner-elektronik.de Germany +49 (0) 70 33/ 30945-20 www.elsner-elektronik.de Technical support: +49 (0) 70 33 / 30 945-250...
