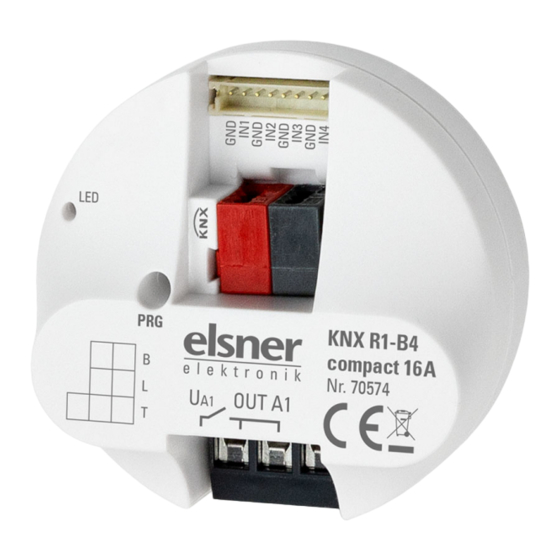

- Page 1 KNX R1-B4 compact 16 A Switching Actuator Item number 70574 Installation and Adjustment...
-
Page 3: Table Of Contents
6.4.2. Input as actuator ..................19 6.4.3. Control modes for drive control ..............20 Elsner Elektronik GmbH • Sohlengrund 16 • 75395 Ostelsheim • Germany Actuator KNX R1-B4 compact 16 A • from application 1.0 Version: 28.05.2020 • Subject to technical changes. Errors excepted. - Page 4 Clarification of signs Installation, inspection, commissioning and troubleshooting of the device must only be carried out by a competent electrician. This manual is amended periodically and will be brought into line with new software releases. The change status (software version and date) can be found in the contents footer. If you have a device with a later software version, please check www.elsner-elektronik.de in the menu area "Service"...
-
Page 5: Description
Current at the bus inrush current: 20 mA in operation: 10 mA Maximum load Each terminal contact may be loaded with a maximum of 16 A. Actuator KNX R1-B4 compact 16 A • Version: 28.05.2020 • Technical changes and errors excepted. -
Page 6: Installation And Start-Up
The device may only be used as a fixed-site installation; that means only when assem- bled and after conclusion of all installation and operational start-up tasks and only in the surroundings designated for it. Actuator KNX R1-B4 compact 16 A • Version: 28.05.2020 • Technical changes and errors excepted. -
Page 7: Safety Notice For Automatic Functions
If the power supply is removed, the connected drive switches off. When the power is restored, the consumer remains switched off until a new movement command is re- ceived by the actuator. Actuator KNX R1-B4 compact 16 A • Version: 28.05.2020 • Technical changes and errors excepted. -
Page 8: Connection
To connect the digital inputs (fig. 1 no. 1) use the attached breakout cable. The cables for the inputs can be extendet to up to 10 m. All GND connections of the inputs are bridged internally (black cable). Actuator KNX R1-B4 compact 16 A • Version: 28.05.2020 • Technical changes and errors excepted. -
Page 9: Connection Examples Output
16A Each terminal contact may be loaded with a maximum Nr. 70574 OUT A1 of 16 A. Mains (230 V AC) PE N L Actuator KNX R1-B4 compact 16 A • Version: 28.05.2020 • Technical changes and errors excepted. -
Page 10: Instructions For Assembly And Operational Start-Up
After use, the device must be disposed of or recycled in accordance with the legal reg- ulations. Do not dispose of it with the household waste! Actuator KNX R1-B4 compact 16 A • Version: 28.05.2020 • Technical changes and errors excepted. -
Page 11: Transfer Protocol
1 Bit Output Input 2 - Short Output R-CT [1.8] DPT_UpDown 1 Bit Input 2 - Switching Input / RWCT [1.1] DPT_Switch 1 Bit Output Actuator KNX R1-B4 compact 16 A • Version: 28.05.2020 • Technical changes and errors excepted. -
Page 12: Setting Parameters
Input 4 - Scene Output R-CT [18.1] 1 Byte DPT_SceneControl Input 4 - Blocking object Input -WC- [1.1] DPT_Switch 1 Bit Setting parameters The parameter defaults are underlined. Actuator KNX R1-B4 compact 16 A • Version: 28.05.2020 • Technical changes and errors excepted. -
Page 13: Behaviour On Power Failure/ Restoration Of Power
ETS. Label for channel objects [Free text max. 20 characters] The Scenes menu is activated here. Use scenes No • Yes (see the Scenes chapter) Actuator KNX R1-B4 compact 16 A • Version: 28.05.2020 • Technical changes and errors excepted. -
Page 14: Relationship Between Logic Operation - Timer Switch - Block
Application example: Staircase light that is only to be switched at twilight/night (link) and that is switched on in the event of a fire alarm (block). Actuator KNX R1-B4 compact 16 A • Version: 28.05.2020 • Technical changes and errors excepted. -
Page 15: Linking
The switch off delay causes the ventilator to run after the switch has been pressed again and the light is already off. Actuator KNX R1-B4 compact 16 A • Version: 28.05.2020 • Technical changes and errors excepted. -
Page 16: Staircase Time Switch
Time factor 4...255; 10 Staircase light time cannot be retriggered• can be retriggered Off telegram during staircase light time nothing • direct switch off causes Actuator KNX R1-B4 compact 16 A • Version: 28.05.2020 • Technical changes and errors excepted. -
Page 17: Block Function
Assign a scene number to the scene save point. The switch state stored in the actuator is retrieved/stored via this scene number. Make sure that every scene number is used only once per drive channel. Scene number 0...127 Actuator KNX R1-B4 compact 16 A • Version: 28.05.2020 • Technical changes and errors excepted. -
Page 18: Inputs
• on change to 1 • on change to 0 • on change and periodically • on change to 1 and periodically • on change to 0 and periodically Actuator KNX R1-B4 compact 16 A • Version: 28.05.2020 • Technical changes and errors excepted. - Page 19 • Dead man’s switch *A detailed description of the setting options for the individual control modes can be found in chapter Control modes for drive control, page 20. Actuator KNX R1-B4 compact 16 A • Version: 28.05.2020 • Technical changes and errors excepted.
- Page 20 By sending a temperature value, for example, the set point of the temperature control can be changed. Function Temperature encoder Temperature in 0.1? -300...800; 200 Actuator KNX R1-B4 compact 16 A • Version: 28.05.2020 • Technical changes and errors excepted.
-
Page 21: Input As Actuator
If a button with switching function is assigned to the input, select the bus function "Switch" and define which value is sent when the button is pressed/released and when it is sent. Button function Switch Actuator KNX R1-B4 compact 16 A • Version: 28.05.2020 • Technical changes and errors excepted. -
Page 22: Control Modes For Drive Control
If inputs are being used as switches to operate shades or windows, then various con- trol modes can be set. Control mode • Standard • Standard inverted • Comfort mode • Dead man’s switch Actuator KNX R1-B4 compact 16 A • Version: 28.05.2020 • Technical changes and errors excepted. - Page 23 End of time 1, start of time 2 Moving command Release after time 1 expired but before time 2 expires: Stop Release after time 1 + 2 expired: Move into end position Actuator KNX R1-B4 compact 16 A • Version: 28.05.2020 • Technical changes and errors excepted.
- Page 24 The drive moves as soon as the button is actuated and stops as soon as the button is released. Control mode Dead man's switch Behavior during button operation: Push button = Up or Down command Release button = Stop command Actuator KNX R1-B4 compact 16 A • Version: 28.05.2020 • Technical changes and errors excepted.
- Page 26 Elsner Elektronik GmbH Control and Automation Engineering Sohlengrund 16 75395 Ostelsheim Phone +49 (0) 70 33 / 30 945-0 info@elsner-elektronik.de Germany +49 (0) 70 33 / 30 945-20 www.elsner-elektronik.de Technical support: +49 (0) 70 33 / 30 945-250...
