EVAL-M1-05F804 User Manual
iMOTION™ Modular Application Design Kit
Schematics and Layout

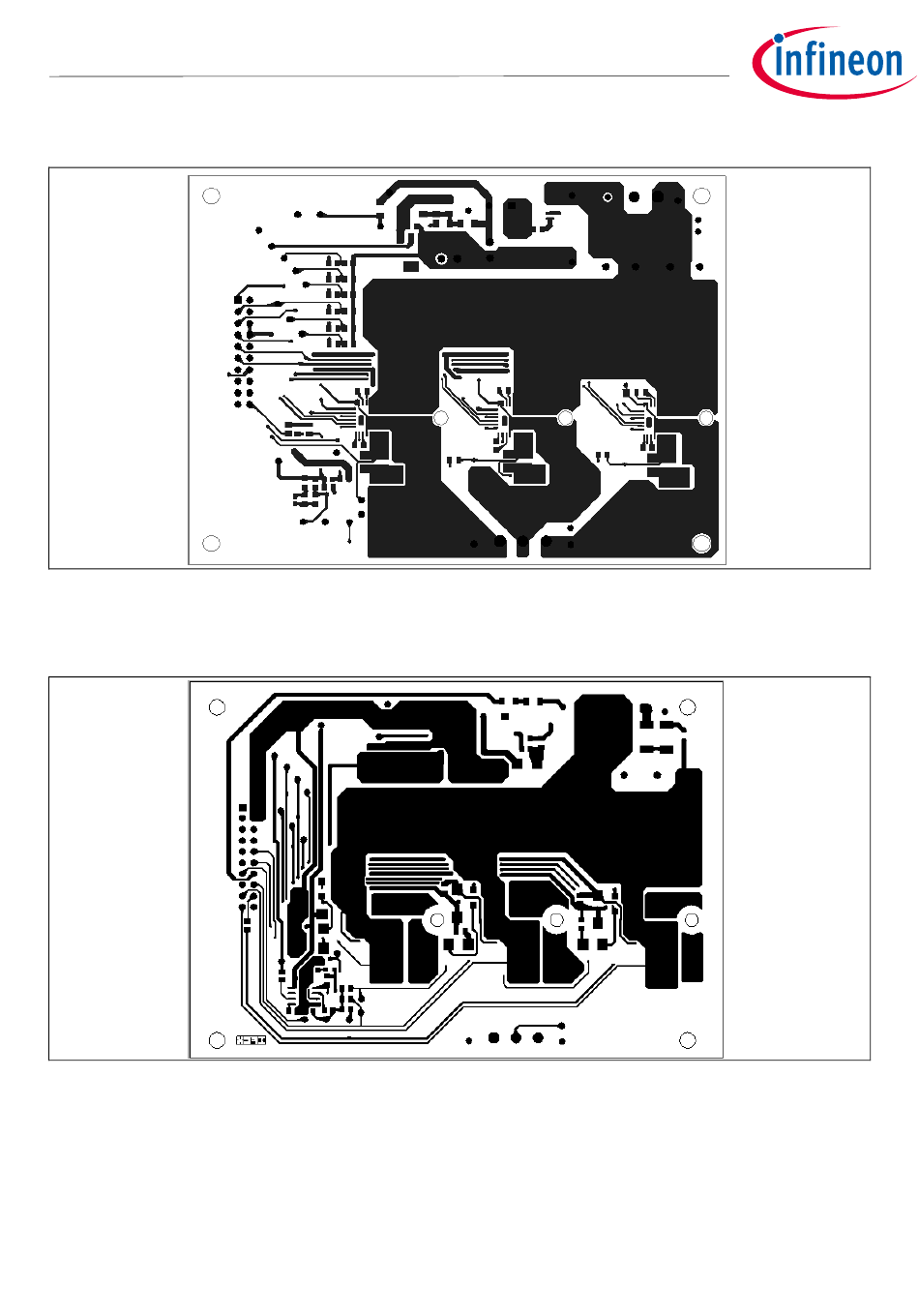

The top layer routing of the PCB is provided in the following Figure 18.
Figure 18 Top layer routing of the EVAL-M1-05F804 evaluation board
Figure 19 illustrates the bottom layer routing of the PCB.
Figure 19 Bottom layer routing of the EVAL-M1-05F804 evaluation board
User Manual
22
<Revision 1.1>
<2018-07-09>
