EVAL-M1-05F804 User Manual
iMOTION™ Modular Application Design Kit
Main features

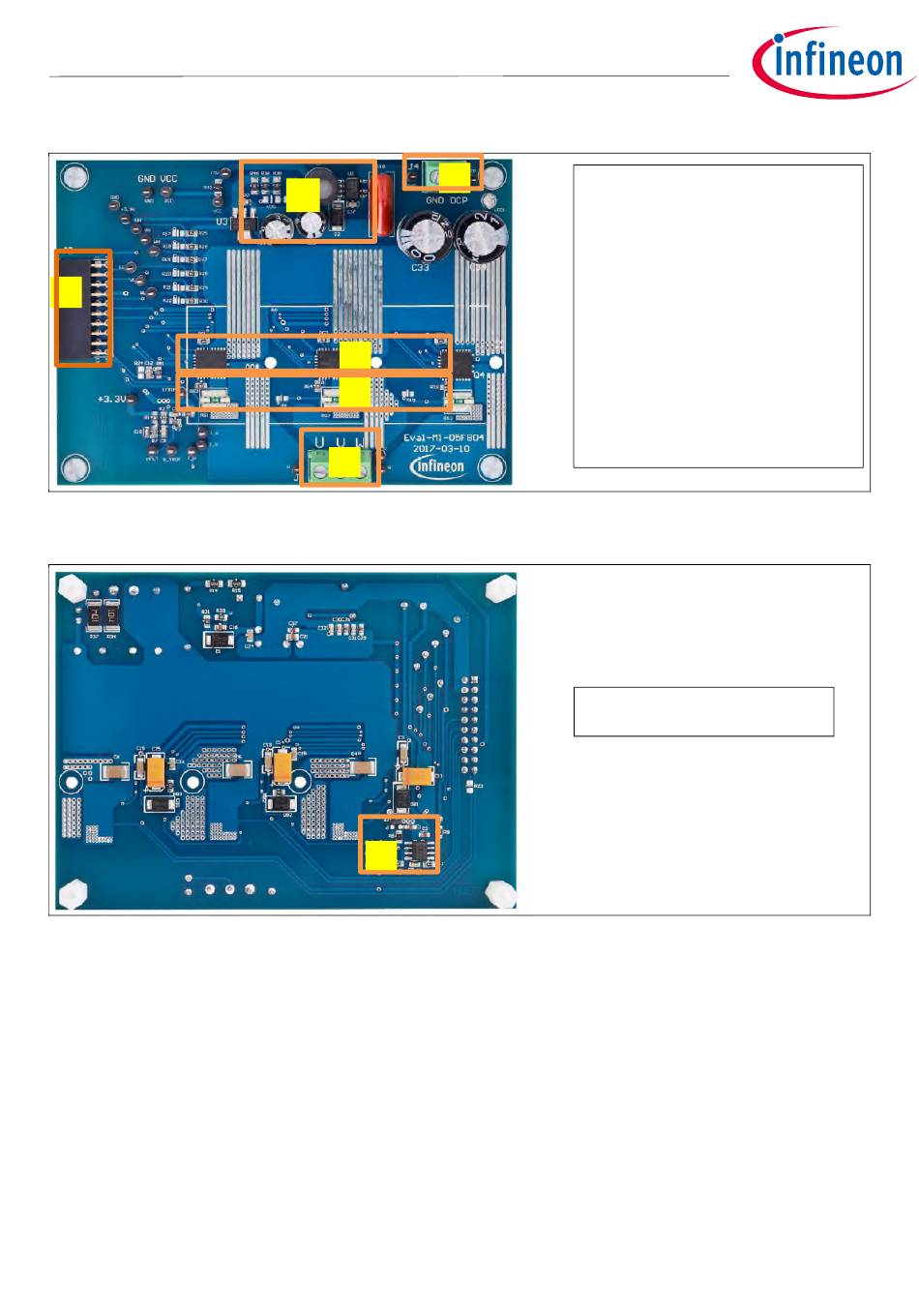

Figure 3 and Figure 4 hint out the functional groups of the EVAL-M1-05F804 evaluation board.
3
Figure 3 Functional groups of the EVAL-M1-05F804 evaluation board's top side
Figure 4 Functional groups of the EVAL-M1-05F804 evaluation board's bottom side
User Manual
1
2
4
5
6
7
9
1． DC Line connector (J4)
2．On board power supply for 15 V
and 3.3 V generations
3. iMOTION™ MADK-M1 20 pin
interface connector for control
board (J2)
4. Three Half bridge modules –
Μipm (Q1, Q3, Q4)
5．Shunt resistors(RS1,RS2,RS3)
6．Motor phase output
Connector (J1)
7. Over current comparator
<Revision 1.1>
<2018-07-09>
