Introduction

2 Introduction
The EVAL-M1-05F804 evaluation board is a part of the iMOTION™ Modular Application Design Kit for motor
control (iMOTION™ MADK).
The MADK platform is intended to use various power stages with different control boards. These boards can
easily be interfaced through the 20 pin iMOTION™ MADK-M1 interface connector.
This evaluation board is designed to give comprehensible solutions of a power stage featuring CIPOS™. It
provides a DC input and 3-phase output for power. It contains three emitter-shunts for current sensing and a
voltage divider for DC-link voltage measurement.
The EVAL-M1-05F804 evaluation board is available from Infineon. The features of this board are described in the
design feature chapter of this document, whereas the remaining paragraphs provide information to enable the
customers to copy, modify and qualify the design for production according to their own specific requirements.
Environmental conditions were considered in the design of the EVAL-M1-05F804. The design was tested as
described in this document but not qualified regarding safety requirements or manufacturing and operation
over the whole operating temperature range or lifetime. The boards provided by Infineon are subject to
functional testing only.
Evaluation boards are not subject to the same procedures as regular products regarding Returned Material
Analysis (RMA), Process Change Notification (PCN) and Product Discontinuation (PD). Evaluation boards are
intended to be used under laboratory conditions by specialists only.

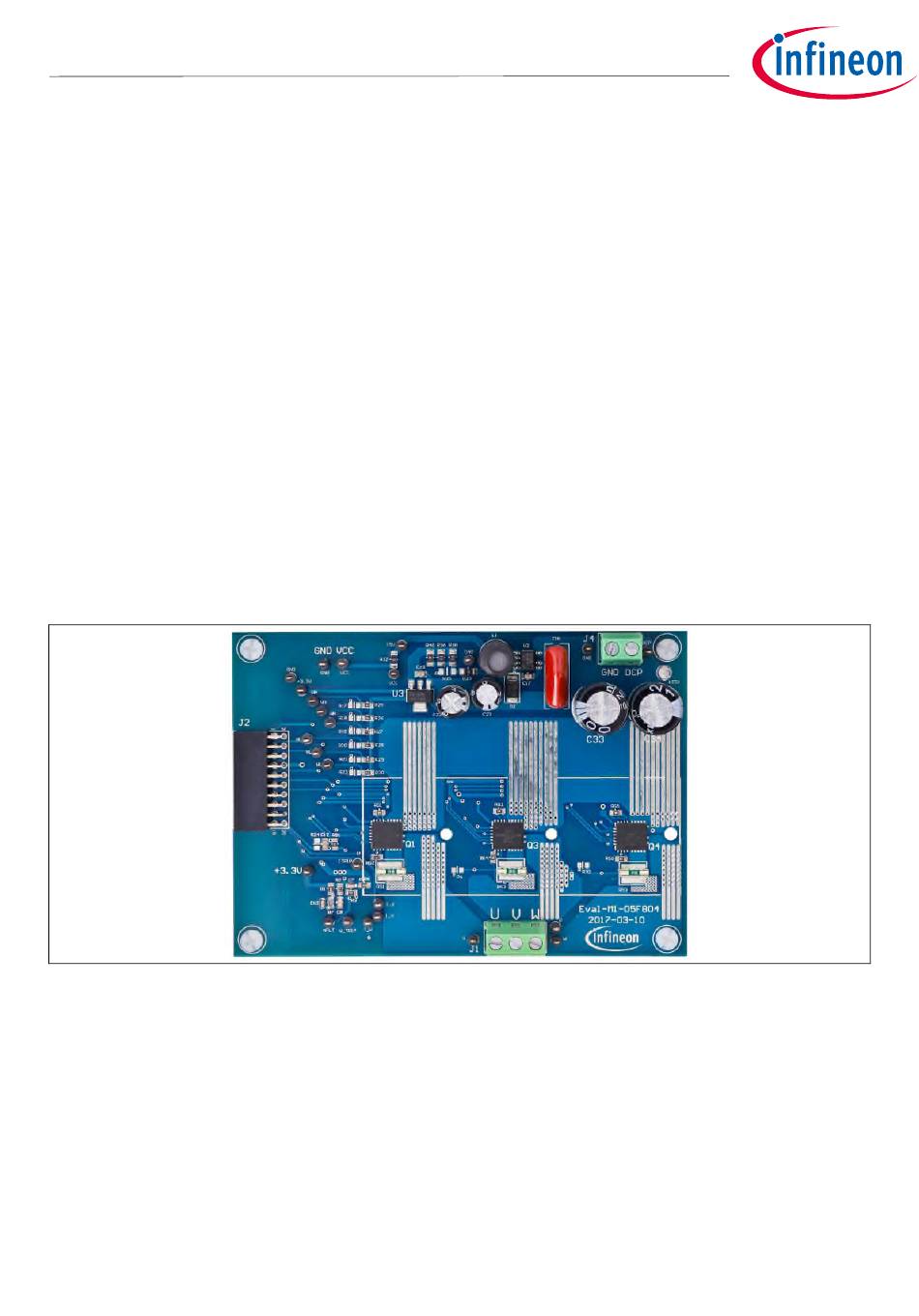

Figure 1 Evaluation board EVAL-M1-05F804
Figure 1 shows the picture of evaluation board EVAL-M1-05F804. This board is compatible with surface mount
CIPOS™ modules. This document explains the features and details of this board in combination with CIPOS™
Nano IRSM005-800MH. The difference between these modules is current and voltage. Ratings and other details
of the board are explained in the subsequent sections.
