Operating Instructions

IR (infrared) Port

Settings, including frequency, name, limiter, mix mode,
etc. can be transferred to and from the M2T/E01 trans-
mitter via this port to an IR enabled receiver to simplify
setup.

USB Port

For firmware updates and connection to Wireless De-
signer Software.
Reset Button
For MCU recovery in the event of an interrupted firm-
ware update.

Headphone Volume Adjustment

Adjust the headphone volume, and select source with
A1, A2, B1, B2 buttons.
Antenna Output Jacks
Two standard 50 ohm BNC connectors can be used
with whip antennas or coaxial cable connected to re-
mote antennas.

Dante Ports (optional)

A Dante Digital Audio Network Interface.

Ethernet Port

Used for setup, monitoring and control with Wireless
Designer Software.

Power Inlet

The threaded-locking DC coaxial jack accepts 9-18
VDC and draws 1.2A maximum.

Quick Sync

Sync an M2R rapidly by utilizing the Channel Function
Buttons. A long (1 second) press of one of the buttons
(A1, A2, B1, or B2) on the front panel initiates Quick
Sync. Two options are available, "SYNC ALL" or "SPLIT
MONO". The mode is selected prior to sync in the Front
Panel Setup menu item.
NOTE: See Front Panel Setup for more instruction
on the Quick Sync function.
Rio Rancho, NM

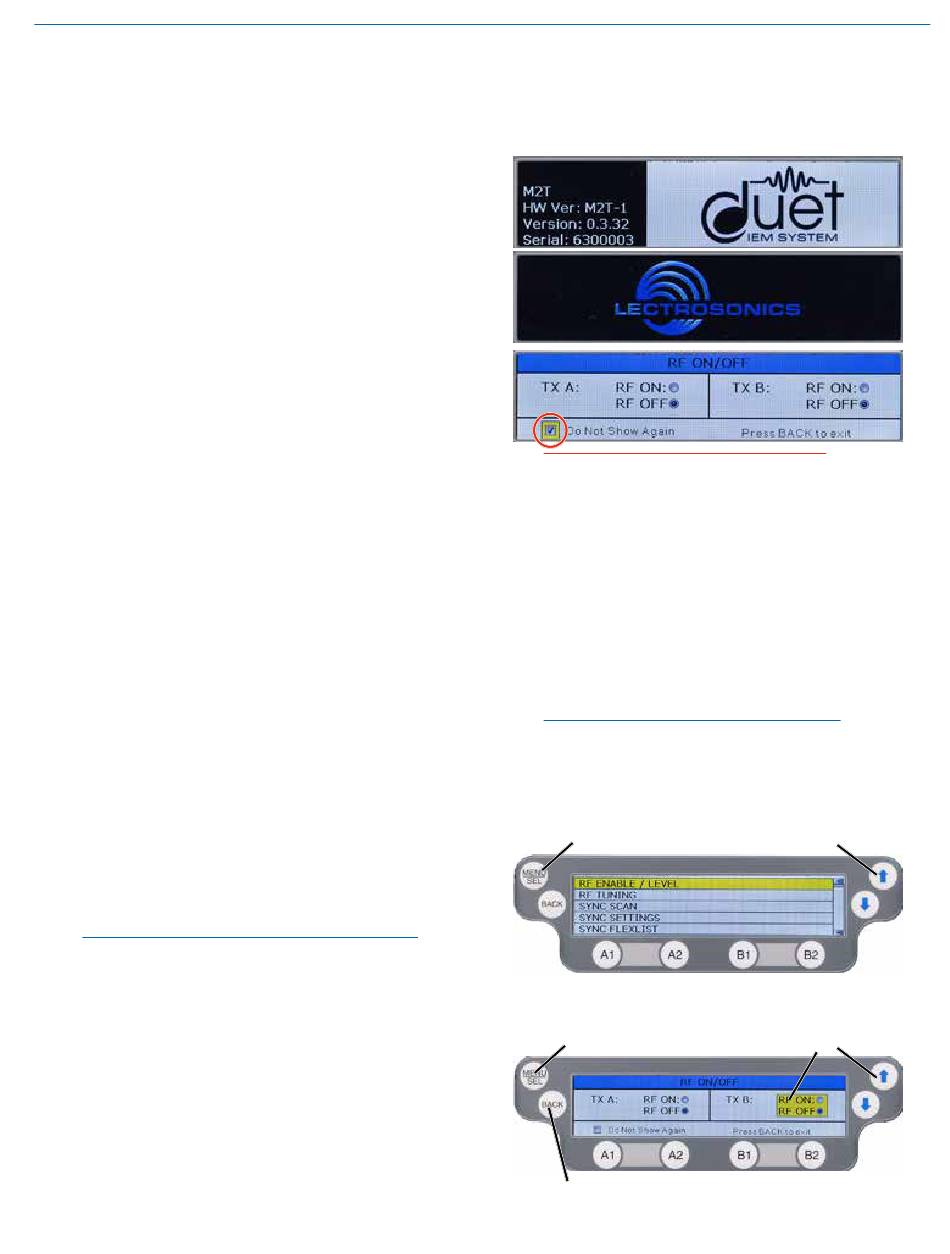

Power Screens
When powering on the M2T/E01, there are three
screens that appear in the following order, Duet, Lectro-
sonics, RF On/Off.:
WARNING: If RF ON is selected and the
user chooses to "Do Not Show Again" RF
transmissions will be on when M2T/E01 is
powered on and may interfere with frequencies
already in use. This can be reset in the FRONT
PANEL menu.

Navigating the Menus

All Menu setup items are arranged in a vertical list on
the LCD. Press MENU/SEL to enter the menu, then
navigate with the UP and DOWN arrows to highlight
the desired setup item. Refer to the menu map on the
following page.
NOTE: To guarantee chosen parameters are
saved, exit a setup screen BEFORE powering
down M2T.
Press MENU/
SEL to enter
the menu
Press MENU/SEL
to enter the setup
of the highlighted
item
Press BACK to return to
the previous screen
Digital IEM Transmitter
Press the UP and DOWN arrows
to navigate and highlight the
desired menu item
Press the UP and DOWN arrows
to navigate and highlight the
desired item
