Instruction Manual
Q
uick
S
tart
G
uide

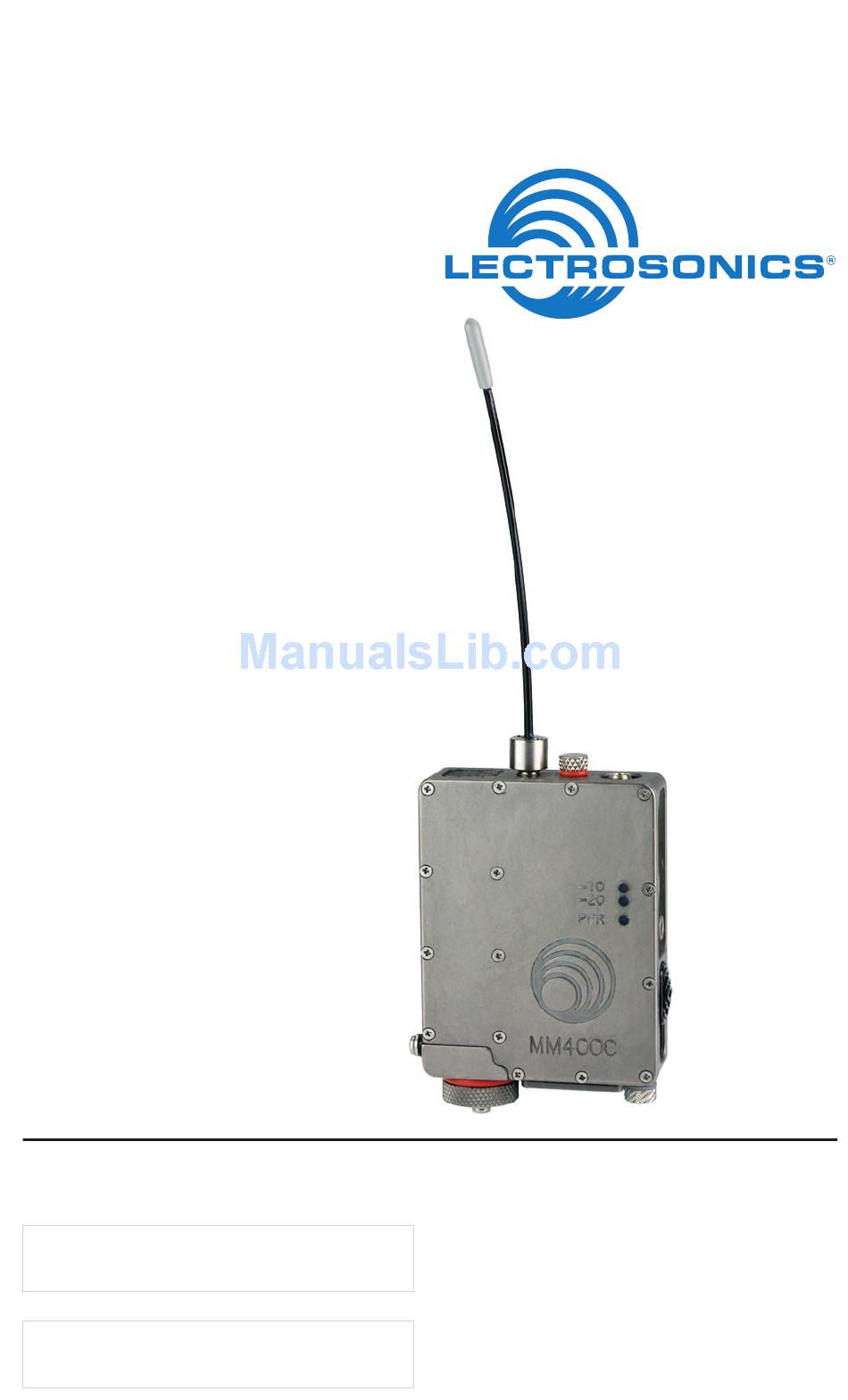

MM400C Transmitter
Fill in for your records:
Serial Number:
Purchase Date:
This guide is intended to assist with
initial setup and operation of your
Lectrosonics product.
For a detailed user manual, down-
load the most current
version at:
www.lectrosonics.com/manuals
U.S. Patent 7,225,135
07 july10
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lectrosonics MM400C
Summary of Contents for Lectrosonics MM400C
- Page 1 MM400C Transmitter U.S. Patent 7,225,135 Fill in for your records: This guide is intended to assist with initial setup and operation of your Serial Number: Lectrosonics product. For a detailed user manual, down- load the most current...
-
Page 2: Controls And Functions
Two 16-position rotary switches adjust the operating frequency. The 1.6M is a coarse adjustment and the 100K is the fine adjustment. Belt Clip The stainless steel wire belt clip may be removed for special applications by simply pulling out one side to release the end of the clip. LECTROSONICS, INC. - Page 3 3. Lubricate all rubber O-rings with petroleum jelly (such as Vaseline) after each use (included with transmitter and O-ring replacement DO NOT USE ANYTHING OTHER THAN PURE PETROLEUM kits). JELLY. Silicone-based lubricants will dissolve the rubber. Failing to lubricate the O-rings after each use will significantly shorten their life. www.lectrosonics.com...
-
Page 4: Operating Instructions
Operating Instructions Selecting the Compatibility Mode The MM400C can be used with Lectrosonics 400 Series Digital Hybrid, 200 Series analog, 100 Series analog and some non-Lectrosonics analog wireless receivers. Contact the factory for details on the non-Lectrosonics models that can be used. The transmitter must be set to the operating mode of the match- ing receiver, which is done using the supplied screwdriver and a battery. -
Page 5: Attaching A Microphone And Adjusting Gain
If several different people will be using the transmitter and there is not time to make the adjustment for each individual, adjust it for the loudest voice. www.lectrosonics.com... - Page 6 Note: If you are using a receiver with a frequency scan function, find a clear frequency with the receiver, then set the transmitter to the frequency selected with the receiver. With Lectrosonics 400 Series receivers, a front panel LCD character display will indicate the correct...
-
Page 7: Battery Installation
Because of this, using the PWR LED to verify battery status not reliable with NiMH batteries. It is possible to track battery status us- ing the Battery Timer function available in a number of Lectrosonics receivers. (Refer to your receiver manual to determine if this function is available.
