M2T/E01

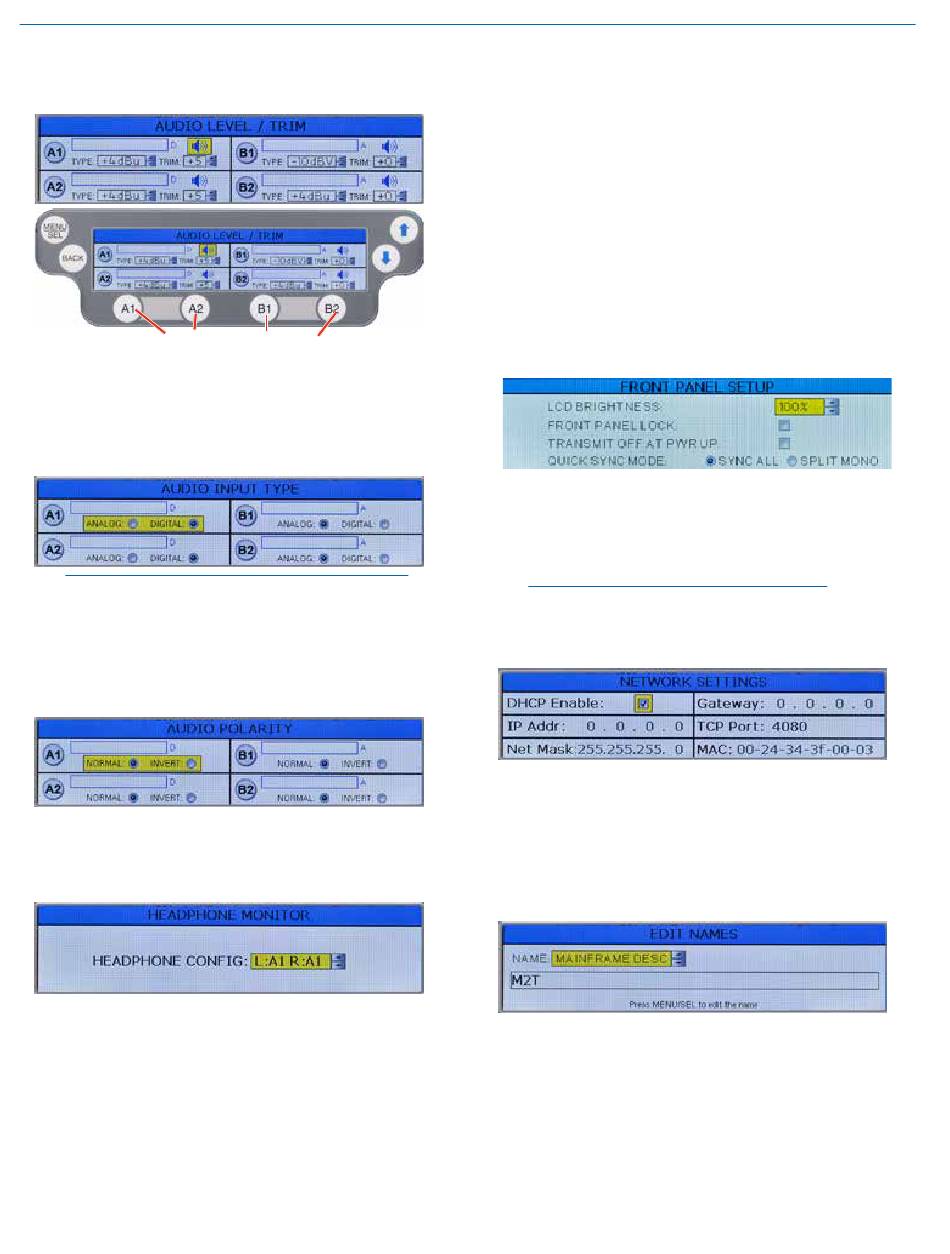

Audio Level/Trim

Set audio inputs at correct levels.
Easily switch between
channels with A1, A2, B1
or B2 Buttons.

Audio Input Type

Set independent channels to analog or digital (Dante)
if available.
NOTE: When selecting a Dante input, user must be
familiar with the Dante Controller from Audinate.

Audio Polarity

Select normal or inverted polarity for each
audio channel.

Headphone Monitor

The headphone source can be selected here or on the
front panel, using the A1, A2, B1 or B2 Buttons.
10

Front Panel Setup

Front panel settings may be customized as follows:
• LCD brightness
• Front panel lock
• Startup RF state
• Quick Sync Mode
Sync All: A long (1 second) press of
either the A1, A2, B1 or B2 buttons sends all
RX1 settings.
Split Mono: A long press of the A1or B1
buttons sends all RX1 settings with the mix mode
forced to Mono Ch. 1. A long press of the A2 or
B2 buttons sends all RX1 settings with the mix
mode forced to Mono Ch. 2.

Network Settings

Allows the user to set IP address or other network set-
tings when needed.
NOTE: New network settings require the unit
to reboot to take effect. Making a change and
pressing the BACK key will prompt the user to
Reboot Now, Save and Exit, or Discard and Exit.

Edit Names

Edit names to match talent for easy location in the
FlexList or easily identify multiple M2T/E01 transmitters
in a rack.
• Use UP and DOWN Arrows to select letters and
MENU/SEL to set and move cursor.
