Lectrosonics M175 Instruction Manual

Belt pack transmitter
Hide thumbs Also See for M175:
Table of Contents

Advertisement

Quick Links

Download this manual
M175
Belt Pack Transmitter
Fill in for your records:
Serial Number:
Purchase Date:
INSTRUCTION MANUAL
Rio Rancho, NM, USA
www.lectrosonics.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M175 and is the answer not in the manual?

Questions and answers

Related Manuals for Lectrosonics M175

Summary of Contents for Lectrosonics M175

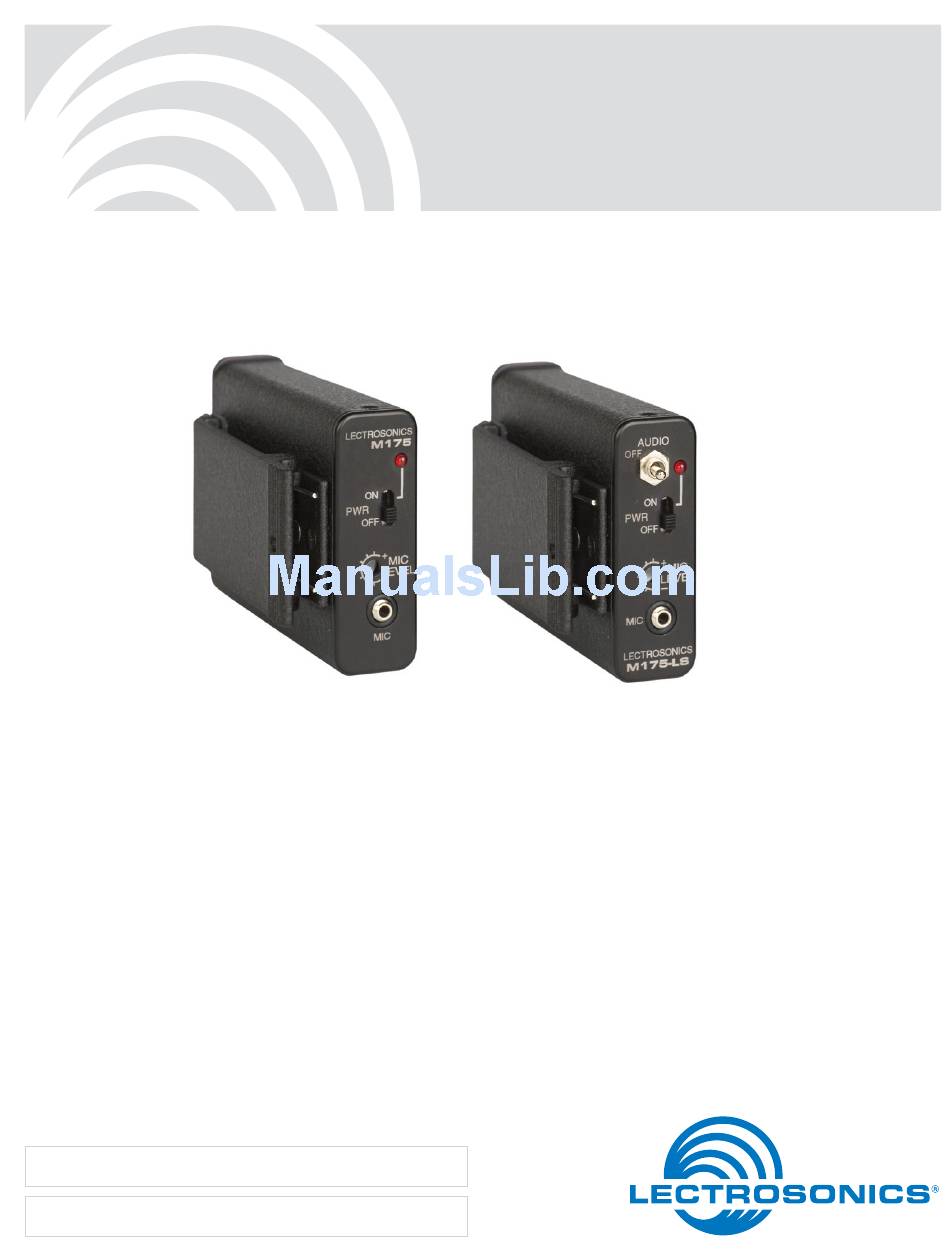

  • Page 1 INSTRUCTION MANUAL M175 Belt Pack Transmitter Fill in for your records: Serial Number: Purchase Date: Rio Rancho, NM, USA www.lectrosonics.com...
  • Page 2 M175 LECTROSONICS, INC.

  • Page 3: Table Of Contents

    The M175 Series transmitter is offered in three versions. The M175 Series transmitters operate from a replace- The standard model is the M175. The M175-LS has an able standard 9 Volt alkaline battery. A precision battery additional audio mute switch on the front panel, and the test circuit continuously monitors the battery voltage.

  • Page 4: Controls And Functions

    M175 Controls and Functions Battery Instructions The battery you use in the M175 Series transmitter should be a 9 Volt lithium or alkaline, available almost everywhere. A lithium 9 Volt battery will provide the best performance with over 30 hours of operation. An alkaline battery will provide up to 15 hours of operation, and carbon zinc batteries, even if marked “heavy duty”...

  • Page 5: Operating Instructions

    Belt Pack Transmitter Operating Instructions This section covers adjustments to the transmitter that The screwdriver is used to adjust the audio gain of must be made before the wireless microphone system the transmitter to match your microphone and your is placed into operation. The step-by-step procedures voice.

  • Page 6: Troubleshooting

    4) Transmitter and receiver not on same frequency. Check labels on transmitter and receiver. 5) Operating range is too great. No sound and receiver 1) Transmitter audio muted (M175-LS only) mod level LEDs are off 2) Microphone or input cable defective. No sound but receiver 1) Receiver audio is muted.

  • Page 7: Service And Repair

    There are no adjustments inside that will make a malfunctioning unit start working. LECTROSONICS’ Service Department is equipped and staffed to quickly repair your equipment. In warranty repairs are made at no charge in accordance with the terms of the warranty. Out-of-warranty repairs are charged at a modest flat rate plus parts and shipping.

  • Page 8: Limited One Year Warranty

    This warranty does not apply to used or demonstrator equipment. Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot correct the defect in your equipment, it will be replaced at no charge with a similar new item.
