New Product
Digital Temperature Controller
E5CC/E5EC/E5AC/E5DC
The new standard in temperature control is
higher in every respect

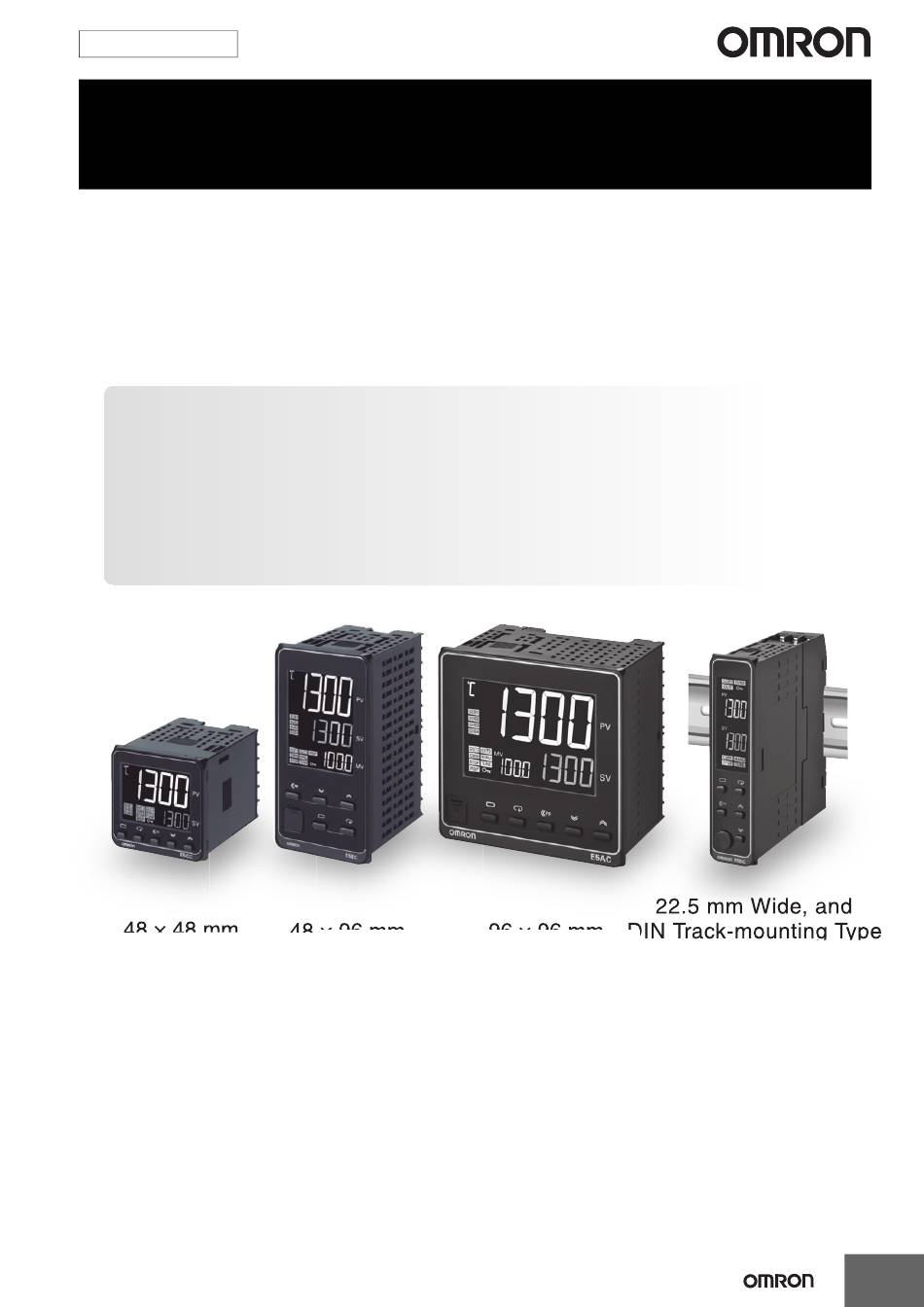

E5CC (48 × 48 mm) / E5EC (48 × 96 mm) / E5AC (96 × 96 mm)
E5DC (22.5 mm Wide, and DIN Track-mounting Type)
Large White PV Display That's Easier to Read.
Easy to Use, from Model Selection to Setup and Operation.
A Complete Range of I/O Capacities, Functions, and Performance.
Handles More Applications.
New Models That Mount to DIN Track and Are Ideal for HMI/PLC Connections.
48 × 48 mm
E5CC
48 × 96 mm
E5EC
22.5 mm Wide, and
96 × 96 mm
DIN Track-mounting Type
E5AC
E5DC
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the E5DC-RX0ASM-015 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Omron E5DC-RX0ASM-015

Summary of Contents for Omron E5DC-RX0ASM-015

  • Page 1 New Product Digital Temperature Controller E5CC/E5EC/E5AC/E5DC The new standard in temperature control is higher in every respect E5CC (48 × 48 mm) / E5EC (48 × 96 mm) / E5AC (96 × 96 mm) E5DC (22.5 mm Wide, and DIN Track-mounting Type) Large White PV Display That's Easier to Read.

  • Page 2: Digital Temperature Controller

    • Models are available with up to 3 auxiliary outputs, up to 4 event E5CC inputs, a transfer output, and a remote SP input to cover a wide Refer to your OMRON website for the most recent information on applicable safety standards. range of applications.

  • Page 3: Heating And Cooling Control

    E5CC Model Number Legend and Standard Models Model Number Legend E5CC-@@ @ @ @ @ -@@@ (Example: E5CC-RX3A5M-000) −− − − − − −−− B C D E No. of Power Model Meaning Control outputs Terminal Input auxiliary supply Options 1 and 2 type type...
  • Page 4 Note: CX-Thermo version 4.5 or higher is required for the E5CC. Refer to page 12 for the mounted dimensions. For the system requirements for the CX-Thermo, refer to information on the EST2-2C-MV4 on the OMRON website Waterproof Packing (www.ia.omron.com). Model...
  • Page 5 E5CC Specifications Ratings A in model number: 100 to 240 VAC, 50/60 Hz Power supply voltage D in model number: 24 VAC, 50/60 Hz; 24 VDC Operating voltage range 85% to 110% of rated supply voltage Models with option selection of 000: 5.2 VA max. at 100 to 240 VAC, and 3.1 VA max. at 24 VAC or Power consumption 1.6 W max.

  • Page 6: Input Ranges

    E5CC Input Ranges ●Thermocouple/Platinum Resistance Thermometer (Universal inputs) Platinum resistance Infrared temperature Input type Thermocouple thermometer sensor 10 to 60 to 115 to 140 to Name Pt100 JPt100 PLII 70°C 120°C 165°C 260°C 2300 2300 1800 1800 1700 1700 1700 1600 1500 1400...

  • Page 7: Alarm Outputs

    E5CC Alarm Outputs Each alarm can be independently set to one of the following 19 alarm types. The default is 2: Upper limit. (see note.) Auxiliary outputs are allocated for alarms. ON delays and OFF delays (0 to 999 s) can also be specified. Note: In the default settings for models with HB or HS alarms, alarm 1 is set to a heater alarm (HA) and the Alarm Type 1 parameter is not displayed.
  • Page 8 E5CC With set values 1, 4 and 5, the upper and lower limit values can be set Set value: 5, Upper- and lower-limit with standby sequence independently for each alarm type, and are expressed as “L” and “H.” For Upper- and Lower-Limit Alarm Described Above *2 Set value: 1, Upper- and lower-limit alarm •...
  • Page 9 *5 External communications (RS-485) and USB-serial conversion cable communications can be used at the same time. *6 Access the following website for information on certified models. http://www.ia.omron.com/support/models/index.html *7 Refer to information on maritime standards in Shipping Standards on page 52 for compliance with Lloyd's Standards.
  • Page 10 PLCs. No communications program- ming is required. Number of connected Temperature Controllers: Programless 32 max. communications* Applicable PLCs OMRON PLCs E5CC SYSMAC CS Series, CJ Series, or 250 VAC, 30 VDC CP Series (resistive load) Mitsubishi Electric PLCs cosφ...

  • Page 11: External Connections

    E5CC External Connections E5CC Control output 1 Relay output E5CC-@@ @ 5 M - @@ @ 250 VAC, 3A (1) (2) (3) (4) (5) (resistive load) Voltage output ↑ Auxiliary outputs 1 to 3 (for driving SSR) Terminal type 12 VDC, 21 mA Relay outputs Control output 2 Linear current output...
  • Page 12 E5CC Nomenclature E5CC Front panel Temperature unit No. 1 display Operation indicators PV or specified parameter Top View of E5CC No. 2 display SP or specified parameter value Top-panel Setup Tool port Use the U D Keys to set the parameter.

  • Page 13: Connection Example

    Thru-current (Io) vs. Output Voltage (Eo) (Reference Values) Two, M3 (depth: 4) E54-CT3 Maximum continuous heater current: 120 A (50/60 Hz) (Maximum continuous heater current for an OMRON Digital Temperature Controller is 50 A.) ± Number of windings: E54-CT3 Accessories ±...
  • Page 14 E5CC ● Adapter Y92F-45 Note: 1. Use this Adapter when the Front Panel has already been prepared for the E5B@. 2. Only black is available. 3. You cannot use the E58-CIFQ2 USB-Serial Conversion Cable if you use the Y92F-45 Adapter. To use the USB-Serial Conversion Cable to make the settings, do so before you mount the Temperature Controller in the panel.
  • Page 15 E5CC ● Watertight Cover ● Mounting Adapter Y92A-48N Y92F-49 21.9 The Mounting Adapter is provided with the Temperature Controller. Order this Adapter separately if it becomes lost or damaged. 87.7 79.2 67.6 ● Protective Cover ● Protective Cover Y92A-48H Y92A-48D Note: This Protective Cover cannot be used if the Waterproof Packing is installed.

  • Page 16: Digital Temperature Controller

    E5AC Cable (sold separately). Setup is easy with the CX-Thermo (sold separately). Refer to your OMRON website for the most recent information on applicable safety standards. • High-speed sampling at 50 ms. • Models are available with up to 4 auxiliary outputs, up to 6 event inputs, a transfer output, and a remote SP input to cover a wide Refer to Safety Precautions on page 50.

  • Page 17: Heating And Cooling Control

    E5EC/E5AC Model Number Legend and Standard Models Model Number Legend E5EC-@@ @ @ @ @ -@@@ (Example: E5EC-RX4A5M-000) −− − − − − −−− B C D E E5AC-@@ @ @ @ @ -@@@ (Example: E5AC-RX4A5M-000) −− − − − − −−− B C D E No.
  • Page 18 This Cable is used to connect to the front-panel Setup Tool Note: CX-Thermo version 4.5 or higher is required for the E5EC. port. For the system requirements for the CX-Thermo, refer to information on the EST2-2C-MV4 on the OMRON website Terminal Covers (www.ia.omron.com). Model...
  • Page 19 E5EC/E5AC Specifications Ratings A in model number: 100 to 240 VAC, 50/60 Hz Power supply voltage D in model number: 24 VAC, 50/60 Hz; 24 VDC Operating voltage range 85% to 110% of rated supply voltage Models with option selection of 000:6.6 VA max. at 100 to 240 VAC, and 4.1 VA max. at 24 VAC or E5EC 2.3 W max.

  • Page 20: Input Ranges

    E5EC/E5AC Input Ranges ●Thermocouple/Platinum Resistance Thermometer (Universal inputs) Platinum resistance Infrared temperature Input type Thermocouple thermometer sensor 10 to 60 to 115 to 140 to Name Pt100 JPt100 PLII 70°C 120°C 165°C 260°C 2300 2300 1800 1800 1700 1700 1700 1600 1500 1400...

  • Page 21: Alarm Type

    E5EC/E5AC Alarm type Each alarm can be independently set to one of the following 19 alarm types. The default is 2: Upper limit. (see note.) Auxiliary outputs are allocated for alarms. ON delays and OFF delays (0 to 999 s) can also be specified. Note: In the default settings for models with HB or HS alarms, alarm 1 is set to a heater alarm (HA) and the Alarm Type 1 parameter is not displayed.
  • Page 22 E5EC/E5AC *1 With set values 1, 4 and 5, the upper and lower limit values can be set *4. Set value: 5, Upper- and lower-limit with standby sequence independently for each alarm type, and are expressed as “L” and “H.” For Upper- and Lower-Limit Alarm Described Above *2 *2.
  • Page 23 E5EC/E5AC Characteristics Thermocouple: (±0.3% of PV or ±1°C, whichever is greater) ±1 digit max. *1 Platinum resistance thermometer: (±0.2% of PV or ±0.8°C, whichever is greater) ±1 digit Indication accuracy Analog input: ±0.2% FS ±1 digit max. (at the ambient temperature of CT input: ±5% FS ±1 digit max.
  • Page 24 PLCs. No communications program- ming is required. Number of connected Temperature Controllers: Programless 32 max. communications* Applicable PLCs OMRON PLCs SYSMAC CS Series, CJ Series, or CP Se- ries Mitsubishi Electric PLCs MELSEC Q Series or L Series Switching current (A)

  • Page 25: External Connections

    E5EC/E5AC External Connections E5EC/E5AC @ 5 M - @ @ @ @ 5 M - @ @@ E5EC-@@ E5AC-@@ (1) (2) (3) (4) (5) (1) (2) (3) (4) (5) The E5EC is set for a K-type thermocouple (input type = 5) by default. An input error (s.err) will occur ↑...
  • Page 26 E5EC/E5AC Nomenclature E5EC Front panel No. 1 display Top View of E5EC PV or specified parameter Temperature unit No. 2 display Operation indicators SP or specified parameter value No. 3 display Top-panel Setup Front-panel Setup Tool port Manipulated value or other value Tool port Manipulated value or other value Use the U D Keys to set...
  • Page 27 E5EC/E5AC Dimensions (Unit: mm) Controllers E5EC (64) The Setup Tool port is on the top of the Tem- perature Controller. It is used to connect the Temperature Con- troller to the computer to use the Setup Tool. The E58-CIFQ2 USB-Serial Conversion Cable is required to make the connection.
  • Page 28 E5EC/E5AC E5AC (64) 96 x 96 91 x 91 Waterproof Packing (Accessory) Mounting Adapter (Accessory) The Setup Tool port is on the top of the Temperature Controller. It is used to connect the Temperature Controller to the computer to use the Setup Tool. The E58-CIFQ2 USB-Serial Conversion Cable is required to make the connection.
  • Page 29 E5EC/E5AC Accessories (Order Separately) ● USB-Serial Conversion Cable (2,110) (13) (5) (15) E58-CIFQ2 (87) 1,740 (250) LED(RD) USB connector (type A plug) Serial connector LED(PWR) LED(SD) ● Conversion Cable E58-CIFQ2-E Conversion Cable Connecting to the E58-CIFQ2 USB-Serial Conversion Cable (2110) (1510) 1510 E58-CIFQ2 (Order Separately)

  • Page 30: Connection Example

    Thru-current (Io) vs. Output Voltage (Eo) (Reference Values) E54-CT3 Two, M3 (depth: 4) Maximum continuous heater current: 120 A (50/60 Hz) (Maximum continuous heater current for an OMRON Digital Temperature Controller is 50 A.) ± Number of windings: ± Ω...
  • Page 31 MEMO...
  • Page 32 • Models are available with up to 2 auxiliary outputs and 1 event input to complete basic functions. Refer to your OMRON website for the most recent information on applicable safety standards. • A white PV display (height: 8.5 mm) is easy to read when setting up, checking alarms, and making settings in a control panel.

  • Page 33: List Of Models

    E5DC Model Number Legend and Standard Models Model Number Legend E5DC-@@ @ @ @ @ -@@@ (Example: E5DC-RX0ASM-015) −− − − − − −−− B C D E No. of Power Model Meaning Control Terminal Input auxiliary supply Options output 1...
  • Page 34 Model Y92F-53 Short Bars Model Y92S-P11 CX-Thermo Support Software Model EST2-2C-MV4 Note: CX-Thermo version 4.6 or higher is required for the E5DC. For the system requirements for the CX-Thermo, refer to information on the EST2-2C-MV4 on the OMRON website (www.ia.omron.com).

  • Page 35: Specifications Ratings

    E5DC Specifications Ratings A in model number: 100 to 240 VAC, 50/60 Hz Power supply voltage D in model number: 24 VAC, 50/60 Hz; 24 VDC Operating voltage range 85% to 110% of rated supply voltage Power consumption 4.9 VA max. at 100 to 240 VAC, and 2.8 VA max. at 24 VDC or 1.5 W max. at 24 VDC Temperature input Thermocouple: K, J, T, E, L, U, N, R, S, B, W, or PL II Platinum resistance thermometer: Pt100 or JPt100...
  • Page 36 E5DC Input Ranges ●Thermocouple/Platinum Resistance Thermometer (Universal inputs) Platinum resistance Infrared temperature Input type Thermocouple thermometer sensor 10 to 60 to 115 to 140 to Name Pt100 JPt100 PLII 70°C 120°C 165°C 260°C 2300 2300 1800 1800 1700 1700 1700 1600 1500 1400...

  • Page 37: Alarm Types

    E5DC Alarm Types Each alarm can be independently set to one of the following 17 alarm types. The default is 2: Upper limit. (See note.) Auxiliary outputs are allocated to alarms. ON delays and OFF delays (0 to 999 s) can also be specified. Note: In the default settings for models with HB or HS alarms, alarm 1 is set to a heater alarm (HA) and the Alarm Type 1 parameter is not displayed.
  • Page 38 E5DC *1 With set values 1, 4, and 5, the upper- and lower-limit values can *4 Set value: 5, Upper- and lower-limit with standby sequence be set independently for each alarm type, and are expressed as For Upper- and Lower-Limit Alarm Described Above at *2 •...
  • Page 39 E5DC Characteristics Thermocouple:*1 (±0.3 % of PV or ±1°C, whichever is greater) ±1 digit max. Indication accuracy Platinum resistance thermometer: (±0.2 % of PV or ±0.8°C, whichever is greater) ±1 digit max. (when mounted individually, ambi- ±0.2% FS ±1 digit max. Analog input: ent temperature of 23°C) ±5% FS ±1 digit max.
  • Page 40 E5@C Series and E5CB Series Number of connected Digital Temperature Controllers: communications * 32 max. USB interface stan- Conforms to USB Specification 2.0 Applicable PLCs: OMRON PLCs dard SYSMAC CS Series, CJ Series, or CP Series DTE speed 38,400 bps Mitsubishi Electric PLCs...
  • Page 41 E5DC External Connections E5DC Control output Auxiliary outputs 1 and 2 The E5DC is set for a K-type thermocouple (input type = 5) by default. Relay outputs An input error (s.err) will occur if the input type setting does not agree Relay output 250 VAC: 2 A (resistive load) with the temperature sensor.
  • Page 42 E5DC Nomenclature E5DC Front panel Bottom View of E5DC No. 1 display PV or specified parameter Operation indicators No.2 display SP or specified parameter value Press O Key once to go to Use the M Key to change to another Adjustment Level.
  • Page 43 Thru-current (Io) vs. Output Voltage (Eo) (Reference Values) Two , M3 holes (depth: 4) E54-CT3 Maximum continuous heater current: 120 A (50/60 Hz) (Maximum continuous heater current for an OMRON Digital Temperature Con- troller is 50 A.) Number of windings: 400±2 Winding resistance: 8±0.8 Ω...
  • Page 44 E5DC ● Mounting Adapters ● Short Bars Y92S-P11 (Four included.) Y92F-53 (Two included.) Use this product to connect between terminals (for power supplies, This accessory is not included with the communications, etc.) when you use multiple E5DC Controllers. product. Order it separately to mount the product to a panel.
  • Page 45 MEMO...
  • Page 46 E5CC/E5EC/E5AC/E5DC Operation Setting Levels Diagram This diagram shows all of the setting levels. To move to the advanced function setting level and calibration level, you must enter passwords. Some parameters are not displayed depending on the protect level setting and the conditions of use. Control stops when you move from the operation level to the initial setting level.
  • Page 47 E5CC/E5EC/E5AC/E5DC Error Displays (Troubleshooting) When an error occurs, the No. 1 display or No. 2 display shows the error code. Take necessary measure according to the error code, referring the following table. Display Name Meaning Action Operation After the error occurs and it is The input value exceeded the control Check the wiring for input to be sure displayed, the alarm output will...
  • Page 48 E5CC/E5EC/E5AC/E5DC Operation Parameters The related setting items in each level are described below. If you press the Mode Key at the last setting item, the display will return to the first setting item in the same level. S Key*2 Power ON Starting in Manual Mode.
  • Page 49 E5CC/E5EC/E5AC/E5DC Monitor/Setting Item Level Monitor/Setting Monitor/Setting Monitor/Setting Monitor/Setting Monitor/Setting Item Display 1 Item Display 4 Item Display 5 Item Display 3 Item Display 2 Note: The monitor/setting items to be displayed is set in the Monitor/Setting Item 1 to 5 parameters (advanced function setting level). Press the O Key for at least 1 s.

  • Page 50: Safety Precautions

    E5CC/E5EC/E5AC/E5DC Safety Precautions ● Be sure to read the precautions for all E5CC/E5EC/E5AC/E5DC models in the website at: http://www.ia.omron.com/. Warning Indications Minor electric shock or fire may occasionally occur. Indicates a potentially hazardous Do not use any cables that are damaged.

  • Page 51: Precautions For Safe Use

    E5CC/E5EC/E5AC/E5DC Precautions for Safe Use Be sure to observe the following precautions to prevent malfunction 13.A switch or circuit breaker must be provided close to the product. The switch or circuit breaker must be within easy reach of the or adverse affects on the performance or functionality of the product. operator, and must be marked as a disconnecting means for this Not doing so may occasionally result in faulty operation.
  • Page 52 E5CC/E5EC/E5AC/E5DC Shipping Standards ● Operating Precautions The E5CC, E5EC, and E5AC comply with Lloyd's standards. When applying the standards, the following installation and wiring 1. When starting operation after the Digital Temperature Controller requirements must be met in the application. has warmed up, turn OFF the power and then turn it ON again at the same time as turning ON power for the load.

  • Page 53: Removing The Main Unit

    E5CC/E5EC/E5AC/E5DC E5EC/E5AC End Plate Installation Make sure to attach PFP-M End Plates to the ends of the Units. Adapter Adapter Panel Terminal Cover (E53-COV24) Terminal Cover (E53-COV24) Water Proof Packing 1. For waterproof mounting, waterproof packing must be installed on the Controller.
  • Page 54 The Unit is guaranteed under the following operating conditions. Should the Unit malfunction during the guarantee period, OMRON 1. Average Operating Temperature shall repair the Unit or replace any parts of the Unit at the expense of (see note): −10°C to 50°C...

  • Page 55: Warranty

    CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY. In no event shall the responsibility of OMRON for any act exceed the individual price of the product on which liability is asserted. IN NO EVENT SHALL OMRON BE RESPONSIBLE FOR WARRANTY, REPAIR, OR OTHER CLAIMS REGARDING THE...
  • Page 56 The Netherlands IL 60173-5302 U.S.A. Tel: (31)2356-81-300/Fax: (31)2356-81-388 Tel: (1) 847-843-7900/Fax: (1) 847-843-7787 © OMRON Corporation 2011-2013 All Rights Reserved. OMRON (CHINA) CO., LTD. OMRON ASIA PACIFIC PTE. LTD. In the interest of product improvement, Room 2211, Bank of China Tower, No.
