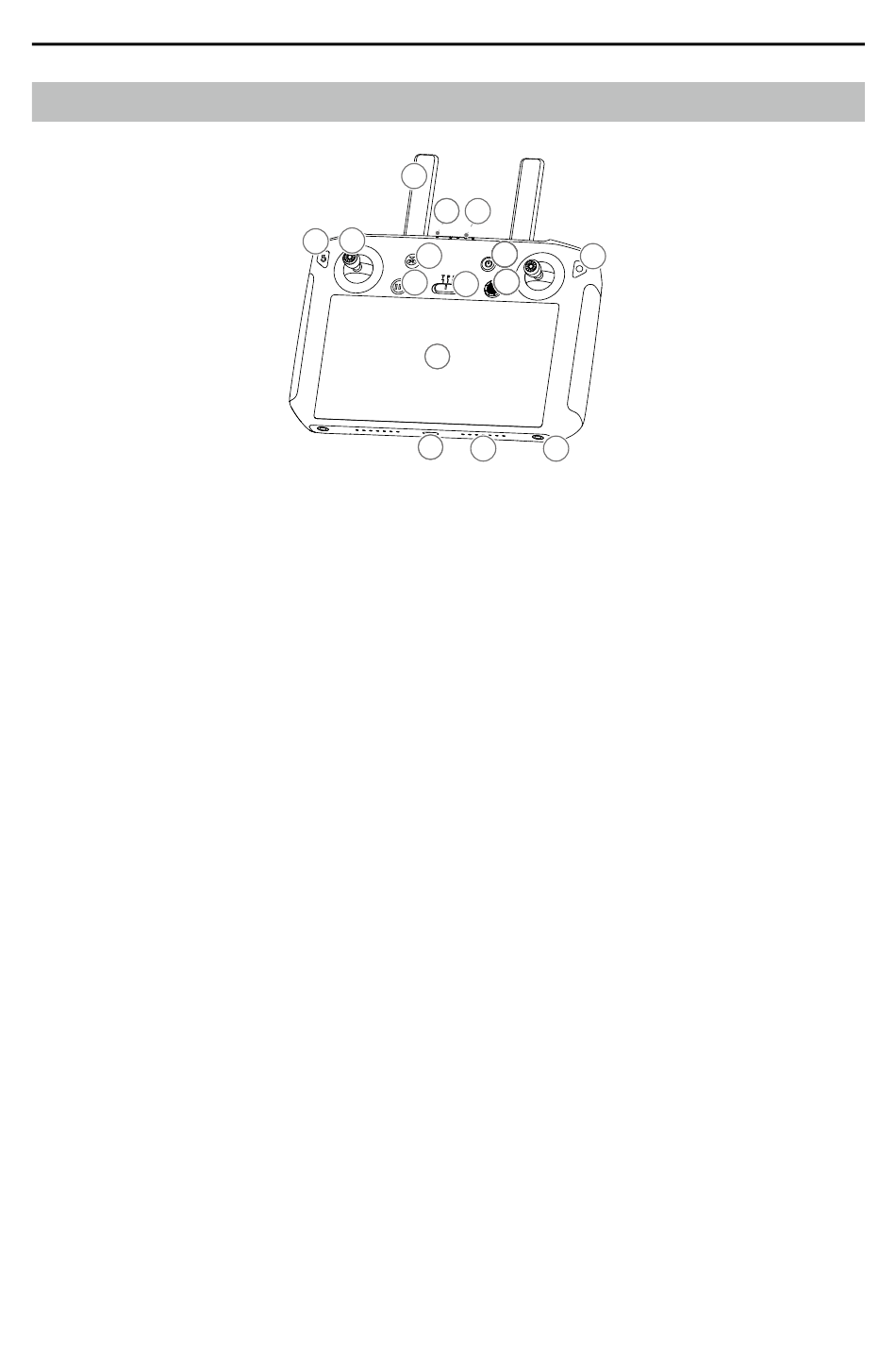

Overview

1 Antennas
Relays aircraft control and video signal.
2 Back Button / Function Button
Press once to return to the previous
page and press twice to go back to the
homepage. Hold to view a guide to using
button combinations. Refer to the Button
Combinations section for more information.
3 Control Sticks
Control the orientation and movement of
the aircraft when the remote controller
is linked to an aircraft. Go to Settings >
Control Stick Navigation, to customize the
navigation settings.
4 RTH Button
Press and hold to initiate Return to Home
(RTH). Press again to cancel RTH.
5 Flight Pause Button
Press once to exit TapFly, ActiveTrack,
and other Intelligent Flight Modes.
6 Flight Mode Switch
Switch between T-mode, P-mode, and
S-mode.
7 Status LED
Indicates the linking status and warnings
for the control sticks, low battery level, and
high temperature.
©
4
2019 DJI All Rights Reserved.
1
7 7 8
3
2
4
5
6
10 12
10 13
14
8 Battery Level LEDs
9 5D Button
10 Power Button
11 Confirm Button / Customizable Button C3
10 10 10 10 10 10 10 10 10 10 10 10 10 10
11
9 9 9 9
15
Displays the battery level of the remote
controller.
The default configuration is listed below. The
functions can be set in DJI GO 4.
Up: Recenter gimbal/move gimbal downward
Down: Focus switch/metering
Left: Decrease EV value
Right: Increase EV value
Press: Open DJI GO 4 Intelligent Flight
Modes menu.
When the remote controller is not linked to
an aircraft, the 5D button can be used to
navigate on the remote controller. Go to
Settings > Control Stick Navigation to enable
this function.
Use to turn the remote controller on and off.
When the remote controller is powered on,
press the button to enter sleep mode or to
wake up the controller.
When the remote controller is not linked to
an aircraft, press to confirm a selection.
When linked to an aircraft, the button cannot
be used to confirm a selection. However,
the function of the button when linked to an
aircraft can be customized in DJI GO 4.
16
18 19
20
17
22
21
