DJI RC Plus
User Manual
2023.05
v2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC Plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for dji RC Plus

Summary of Contents for dji RC Plus

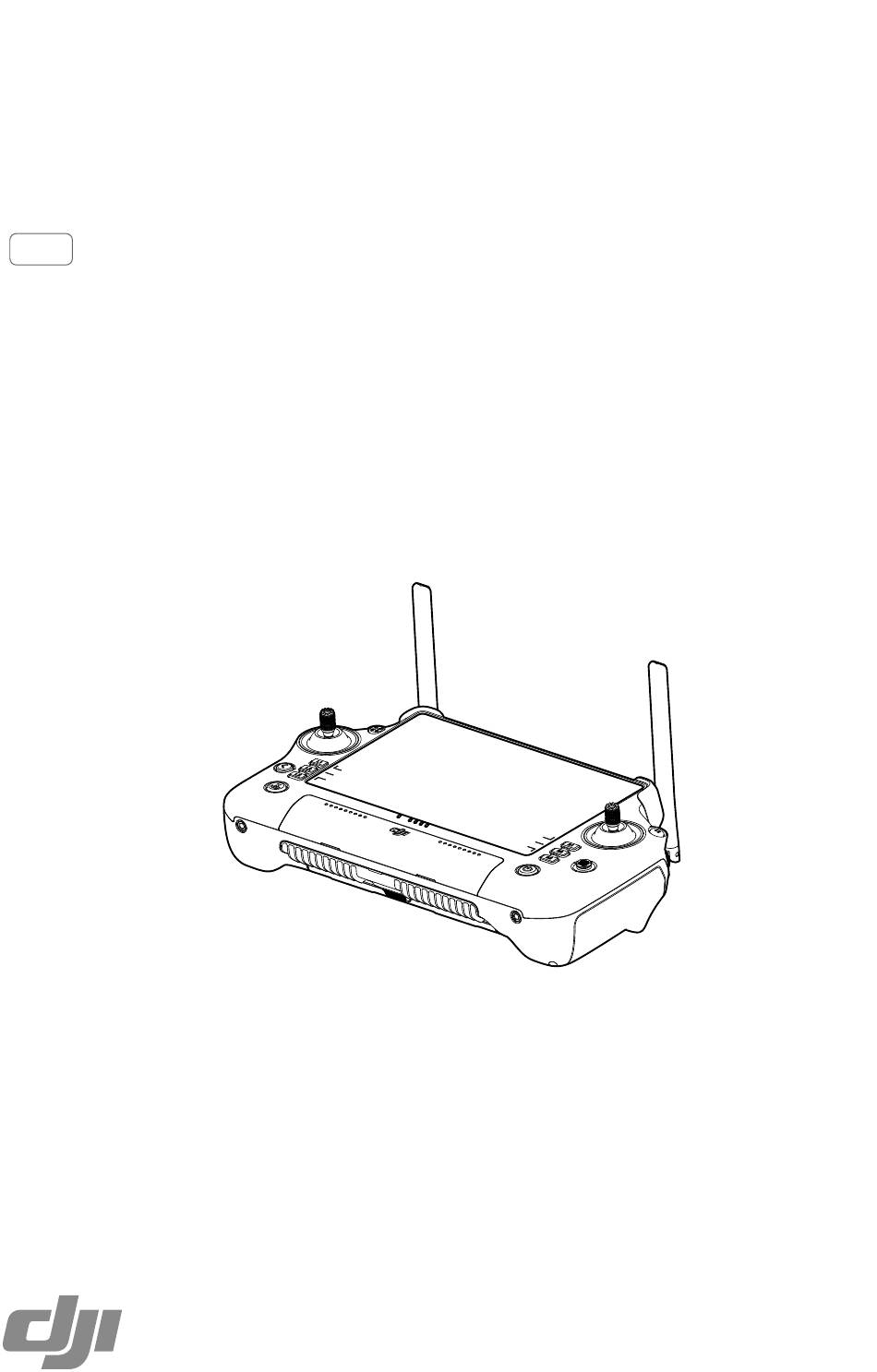

  • Page 1 DJI RC Plus User Manual 2023.05 v2.0...

  • Page 2: Revision Log

    Materials. Users are licensed to use these materials only for purposes of operating and using DJI Products. Unless otherwise authorized in this Terms, you are not eligible to use or allow others to use the Materials or any part of the Materials by reproducing, transferring or selling the Materials.
  • Page 3 Refer to User Manual for more information. Watch Tutorial Videos Go to the address below or scan the QR code to watch the DJI RC Plus tutorial videos, which demonstrate how to use the DJI RC Plus safely.

  • Page 4: Table Of Contents

    Activating the Remote Controller Linking the Remote Controller Control Stick Mode Flight Mode Switch RTH Button Controlling the Camera Controlling the Gimbal L1/L2/L3/R1/R2/R3 Buttons Customizable Buttons Remote Controller LEDs Remote Controller Alert Touchscreen Operations Home Screen © 2023 DJI All Rights Reserved.
  • Page 5 DJI RC Plus User Manual Screen Gestures Shortcut Settings Combination Buttons DJI Pilot 2 Advanced Features Calibrating the Compass HDMI Settings Maintenance Firmware Update Safety Precautions for Handling Batteries Specifications © 2023 DJI All Rights Reserved.

  • Page 6: Product Profile

    Reliable in More Environments: The remote controller can operate normally within a wide temperature range from -20 to 50° C (-4 to 122° F). Used with matched DJI aircraft models: There are various versions of the DJI RC Plus. Make sure to use the DJI RC Plus version that matches the aircraft model.

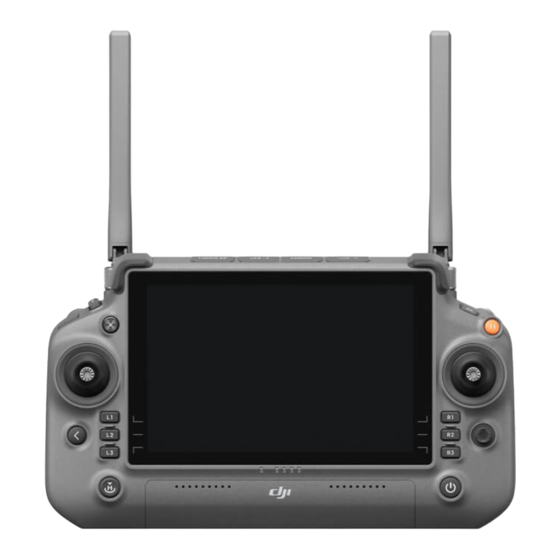

  • Page 7: Overview

    DO NOT block internal GNSS antennas Control Sticks during usage. Otherwise, the positioning Flight control mode can be set in DJI Pilot 2. accuracy may be affected. Internal Wi-Fi Antennas 13. Power Button DO NOT block the internal Wi-Fi antennas Press once to check the current battery level.
  • Page 8 DJI RC Plus User Manual 30 29 21 22 23 24 16. C3 Button 23. HDMI Port Customize functions in DJI Pilot 2. For outputting HDMI signal to an external monitor. 17. Left Dial Controls the tilt of the gimbal.
  • Page 9 DJI RC Plus User Manual 21 22 23 24 10 11 31. Reserved Mounting Holes 37. Rear Cover Release Button For mounting external devices. 38. Alarm 32. C1 Button 39. Air Intake Customize functions in DJI Pilot 2. For heat dissipation. Do not block the air intake during usage.

  • Page 10: Preparing The Remote Controller

    1. Push the rear cover release button to the end to open the rear cover. Remove the screws to open the dongle compartment. 2. Insert the dongle into the USB-C connector. Close the dongle compartment. 3. Attach the dongle compartment with the screws. Close the rear cover. © 2023 DJI All Rights Reserved.

  • Page 11: Adjusting The Antennas

    Such as enable the mobile phone Wi-Fi. A prompt will appear in DJI Pilot 2 if the transmission signal is weak during flight. Adjust the antennas to make sure that the aircraft is in the optimal transmission range.
  • Page 12 DJI RC Plus User Manual 2. The remote controller is not qualified for an IP54 rating in the following circumstances: a. The cover of the external port is not attached firmly. b. The remote controller rear cover is not attached firmly.

  • Page 13: Remote Controller Operations

    For optimal charging, it is recommended to use the charging device from the compatible aircraft or a certified USB-C charger with a maximum rated power of 65W and a maximum voltage of 20V, such as the DJI 65W Portable Charger. Fully discharge and charge the remote controller every three months. The battery depletes when stored for an extended period.

  • Page 14: Powering On/Off

    2. Connect to a Wi-Fi network to access the internet. Then set the time zone, date, and time. 3. If you have a DJI account, log in with your password. If you are a new user, create a DJI account and log in.
  • Page 15 DJI RC Plus User Manual 2. Run DJI Pilot 2 and tap Link Remote Controller to link. The status LED of the remote controller will blink blue, and the remote controller will beep during linking. 3. Press and hold the power button on the aircraft for at least five seconds. The aircraft power indicator will blink and will beep twice to indicate linking has started.

  • Page 16: Control Stick Mode

    DJI RC Plus User Manual Control Stick Mode There are three pre-programmed modes as well as custom modes that can be configured in DJI Pilot 2. The modes are Mode 1, Mode 2, and Mode 3. Mode 1 Left Stick...
  • Page 17 DJI RC Plus User Manual The default mode is Mode 2. See the figures below to check the function of each control stick in the three pre-programmed modes. Center position: control sticks are centered. Moving the control stick: control sticks are pushed away from the center.

  • Page 18: Flight Mode Switch

    S-mode. F-mode (Function): F-mode can be set to T-mode (Tripod mode) or A-mode (Attitude mode) in DJI Pilot 2. T-mode is based on N-mode. The flight speed is limited to allow easier control of the aircraft.

  • Page 19: Controlling The Camera

    DJI RC Plus User Manual Controlling the Camera The buttons on the remote controller can be used to control the camera remotely. 1. Record Button Press once to start or stop recording. 2. Scroll Wheel Functions may vary with different aircraft models. Refer to the user manual for the compatible aircraft.

  • Page 20: Customizable Buttons

    DJI RC Plus User Manual Customizable Buttons The C1, C2, C3, and 5D buttons are customizable. Open DJI Pilot 2 and enter camera view. Tap and tap to configure the functions of these buttons. In addition, combination buttons can be customized using the C1, C2, and C3 buttons with the 5D button.

  • Page 21: Remote Controller Alert

    The remote controller vibrates or beeps twice to indicate an error or warning. For detailed information, see the real-time prompts on the touchscreen or in DJI Pilot 2. Swipe down from the top of the screen to open Shortcut Settings and turn on Mute mode to disable all voice alerts.

  • Page 22: Touchscreen Operations

    Firefox Setting Guide 1. Time Displays local time. 2. DJI Pilot 2 Tap to open DJI Pilot 2. 3. Gallery Tap to view stored images and videos. 4. Files Tap to view stored files. 5. Browser Tap to open the browser.

  • Page 23: Screen Gestures

    DJI RC Plus User Manual Screen Gestures Slide from the left or right to Slide up from the bottom of Slide up from the bottom of the center of the screen to the screen to return to the the screen and hold to access return to the previous screen.

  • Page 24: Shortcut Settings

    DJI RC Plus User Manual Shortcut Settings 3:05 PM Notifications Apr 18, 2022 Mondy Wi-Fi Bluetooth Do Not Dis Enhanced Di Record Screen Screenshot Mobile dat Airplane mo 1. Notifications View system or app notifications. 2. Recent Tap to view and switch to recently opened apps.

  • Page 25: Combination Buttons

    Since the DJI RC Plus is compatible with multiple aircraft models, the interface of different aircraft models in DJI Pilot 2 may vary. Refer to the DJI Pilot 2 App section in the user manual of the relevant aircraft for more information.

  • Page 26: Advanced Features

    Using DJI Pilot 2 1. Power on the remote controller and make sure it is connected to the internet. 2. Run DJI Pilot 2. A prompt will appear when a new firmware version is available. Tap the prompt to enter the update screen.

  • Page 27: Safety Precautions For Handling Batteries

    DJI RC Plus User Manual Safety Precautions for Handling Batteries 1. DO NOT allow the batteries to come into contact with any kind of liquid. If the inside of a battery comes into contact with water, chemical decomposition may occur, potentially resulting in the battery catching on fire and possibly leading to an explosion.

  • Page 28: Specifications

    2 hours (using a USB-C chargers with maximum rated power of 65W Charging Time and maximum voltage of 20V) Internal Battery: Approx. 3 hours and 18 min; Internal Battery + External Operating Time Battery: Approx. 6 hours Ingress Protection Rating IP54 GNSS GPS+Galileo+BeiDou © 2023 DJI All Rights Reserved.
  • Page 29 DJI RC Plus User Manual Video Output Port HDMI Type-A Operating Temperature -20° to 50° C (-4° to 122° F) Less than one month: -30° to 45° C (-22° to 113° F); Storage Temperature Range One to three months: -30° to 35° C (-22° to 95° F);...
  • Page 30 CONTACT DJI SUPPORT This content is subject to change. If you have any questions about this document, please contact DJI by sending a message to DocSupport@dji.com. Copyright © 2023 DJI All Rights Reserved.
