- Page 1 User Manual 2022.05 v1.0...
-
Page 2: Using This Manual
Refer to this user manual for more information. Video Tutorials Go to the address below or scan the QR code to watch the DJI RC tutorial videos, which demonstrate how to use the DJI RC safely. -
Page 3: Table Of Contents
Linking the Remote Controller Controlling the Aircraft Controlling the Gimbal and Camera Customizable Buttons Status LED and Battery Level LEDs Description Remote Controller Alert Touchscreen Home Operations Quick Settings Calibrating the Compass Firmware Update Appendix Specifications © 2022 DJI All Rights Reserved. -

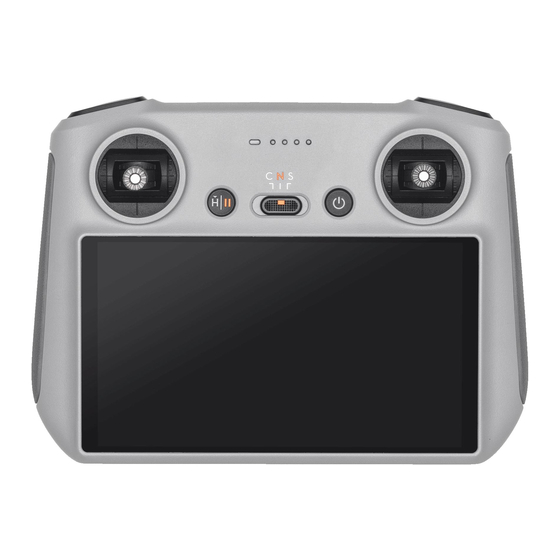

Page 4: Product Profile
The remote controller has a maximum operating time of four hours. The remote controller is pre-installed with the DJI Fly app, enabling users to check the flight status and set flight and camera parameters. The mobile devices can connect directly to the aircraft via Wi-Fi for image transmission, enabling users to download photos and videos from the aircraft camera to the mobile device. -
Page 5: Overview
10. Host Port (USB-C) * 4. Flight Pause/Return to Home (RTH) Button For connecting the DJI Cellular Dongle which Press once to make the aircraft brake and needs to be purchased separately. hover in place (only when GNSS or Vision Systems are available). -
Page 6: Preparing The Remote Controller
Recharge the battery at least every three months to prevent over discharging. The battery depletes when stored for an extended period. Mounting Remove the control sticks from the storage slots on the remote controller and screw them into place. Make sure the control sticks are firmly mounted. © 2022 DJI All Rights Reserved. -
Page 7: Activating The Remote Controller
2. Connect the remote controller to the internet via Wi-Fi. After connecting, tap “Next” to continue and select the time zone, date, and time. 3. Log in with your DJI account. If you do not have an account, create a DJI account and log in. 4. Tap “Activate” on the activation page. -
Page 8: Remote Controller Operations
Move the control sticks or press any button to cancel the alert. Fully charge the battery at least once every three months to maintain the battery’s health. © 2022 DJI All Rights Reserved. -
Page 9: Controlling The Aircraft
(throttle), and left/right movement (roll). The control stick mode determines the function of each control stick movement. Three preprogrammed modes (Mode 1, Mode 2, and Mode 3) are available and custom modes can be configured in DJI Fly. Mode 1... - Page 10 DJI RC User Manual Stick Neutral/Center Point: Control sticks are in the center. Moving the control stick: The control stick is pushed away from the center position. The figure below explains how to use each control stick. Mode 2 has been used as an example.
- Page 11 Otherwise, the remote controller will experience interference. A prompt will be displayed in DJI Fly if the transmission signal is weak during flight. Adjust the remote controller orientation to make sure that the aircraft is in the optimal transmission range.
-
Page 12: Controlling The Gimbal And Camera
Camera Control Dial: Adjust the zoom. Gimbal Dial: Control the tilt of the gimbal. Customizable Buttons The customizable buttons include C1 and C2. Go to System Settings in DJI Fly and select Control to set the functions of the customizable C1 and C2 buttons. ©... -
Page 13: Status Led And Battery Level Leds Description
The remote controller beeps when there is an error or warning. Pay attention when prompts appear on the touchscreen or in DJI Fly. Slide down from the top and select Mute to disable all alerts, or slide the volume bar to 0 to disable some alerts. -
Page 14: Touchscreen
Since the DJI RC is compatible with multiple aircraft models and the interface of DJI Fly may vary depending on the aircraft model, refer to the DJI Fly app section in the user manual of the relevant aircraft for more information. -
Page 15: Operations
Slide down twice from the top of screen to open the status bar the screen to open Quick Settings when in DJI Fly. The status bar when in DJI Fly. displays the time, Wi-Fi signal, b a t t e r y l e v e l o f t h e re m o t e controller, etc. -
Page 16: Quick Settings
Slide the bar to adjust the screen brightness. 5. Adjusting Volume Slide the bar to adjust the volume. * When the remote controller is linked with DJI Mavic 3, the frame rate of the transmission image will drop to 30fps during the recording. ©... -
Page 17: Calibrating The Compass
The remote controller is pre-installed with the DJI Fly app. You can update the remote controller without the aircraft being linked. Power on the remote controller and enter the home screen of DJI Fly. Tap Profile > Settings > Firmware Update > Check for Firmware Update, and then follow the instructions to update the remote controller. -
Page 18: Appendix
Operation Frequency Range 2.4000-2.4835 GHz, 5.725-5.850 GHz Max Transmission Distance When used with DJI Mini 3 Pro: 12 km (FCC), 8 km (CE/SRRC/MIC) (Unobstructed, free of interference) When used with DJI Mavic 3: 15 km (FCC), 8 km (CE/SRRC/MIC) Transmission Power (EIRP) 2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC) - Page 19 [2] Data is tested under FCC standards in unobstructed environments of typical interference. Only to serve as a reference and provides no guarantee as to the actual flight distance. [3] The DJI RC will support more DJI aircraft in future. Visit the official website for the latest information. ©...
- Page 20 This content is subject to change. Download the latest version from www.dji.com/rc/downloads If you have any questions about this document, please contact DJI by sending a message to DocSupport@dji.com. DJI is a trademark of DJI. Copyright © 2022 DJI All Rights Reserved.
